Radium Engineering CCV Catch Can Kit Subaru WRX VB 2022-2024, Fluid Lock - 20-0755-FL

Radium Engineering 20-0755-FL Fluid Lock CCV catch can kit for the 2022-2024 Subaru WRX (VB).

• Mounts under the OEM air intake duct without permanent modifications
• Runs inline between the crankcase vent (CCV) port and the turbo inlet pipe, capturing oil and sludge during high-load operation
• Compatible with the OEM air duct
• Does not address blow-by from the PCV side
• Direct fitment, no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fl oz capacity
• Patented Fluid Lock system

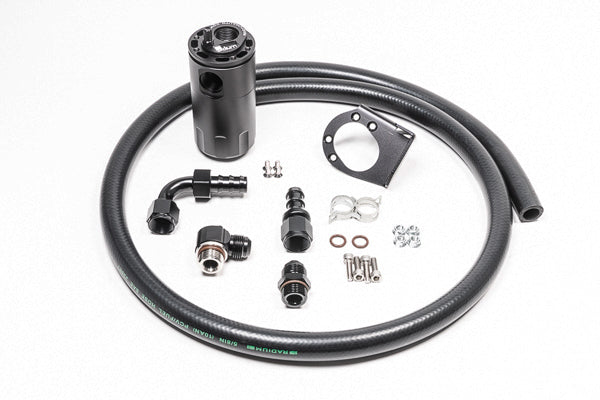

Included

• Fluid Lock catch can
• WRX VB mounting bracket
• 10AN adapter fittings and hose ends
• Stainless steel hardware
• 5/8 in PCV hose

Fitment

• 2022-2024 Subaru WRX (VB). (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
