Radium Engineering CCV Catch Can Kit VW Golf MK8 GTI/R (2020-2024) Fluid Lock - 20-0887-FL

Radium Engineering 20-0887-FL CCV catch can kit with Fluid Lock for the 2020-2024 VW Golf MK8 GTI and Golf R.

• CCV catch can that installs inline between the crankcase vent port and the turbo inlet pipe
• Fits under the OEM engine cover; anodized aluminum bracket mounts behind the LH headlight using OEM holes
• Hoses connect to factory fittings and connectors with no permanent modifications
• SAE quick connect fittings on both catch can ports
• Direct fit, no drilling required
• 7 fl oz capacity
• 10AN ORB inlet and outlet ports, 4AN ORB drain port
• Two-step oil separation baffling
• O-ring sealed dipstick
• Patented Fluid Lock system prevents overfilling and holds collected fluid until emptied
• Only compatible with OEM IQ Matrix Beam headlights

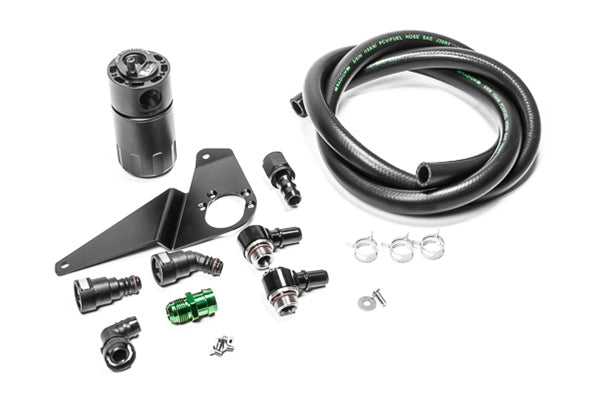

Included

• Baffled Fluid Lock oil catch can
• Anodized aluminum bracket
• Quick connect hose ends and fittings
• 10AN (5/8 in) PCV hose
• 10AN adapter fittings
• Stainless hardware
• Spring clamps

Fitment

Resources

• Radium Engineering product page
• Radium Engineering installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
