Radium Engineering FPD-R Inline Fuel Pulse Damper - 20-0199

Radium Engineering 20-0199 FPD-R inline fuel pulse damper for 40-70 psi base static fuel pressure. Universal inline fitment.

• For base static fuel pressure of 40-70 psi
• Anodized, laser-engraved aluminum top marked R
• Anodized aluminum body with male threads
• Safe for all fuel types, including E85
• Mounts at any angle, including upside down
• Vacuum/boost reference port, needed when fuel pressure can fall below 40 psi under vacuum
• Installs inline in the fuel line using 8AN ORB adapter fittings
• Not for mechanical fuel pumps or direct injection

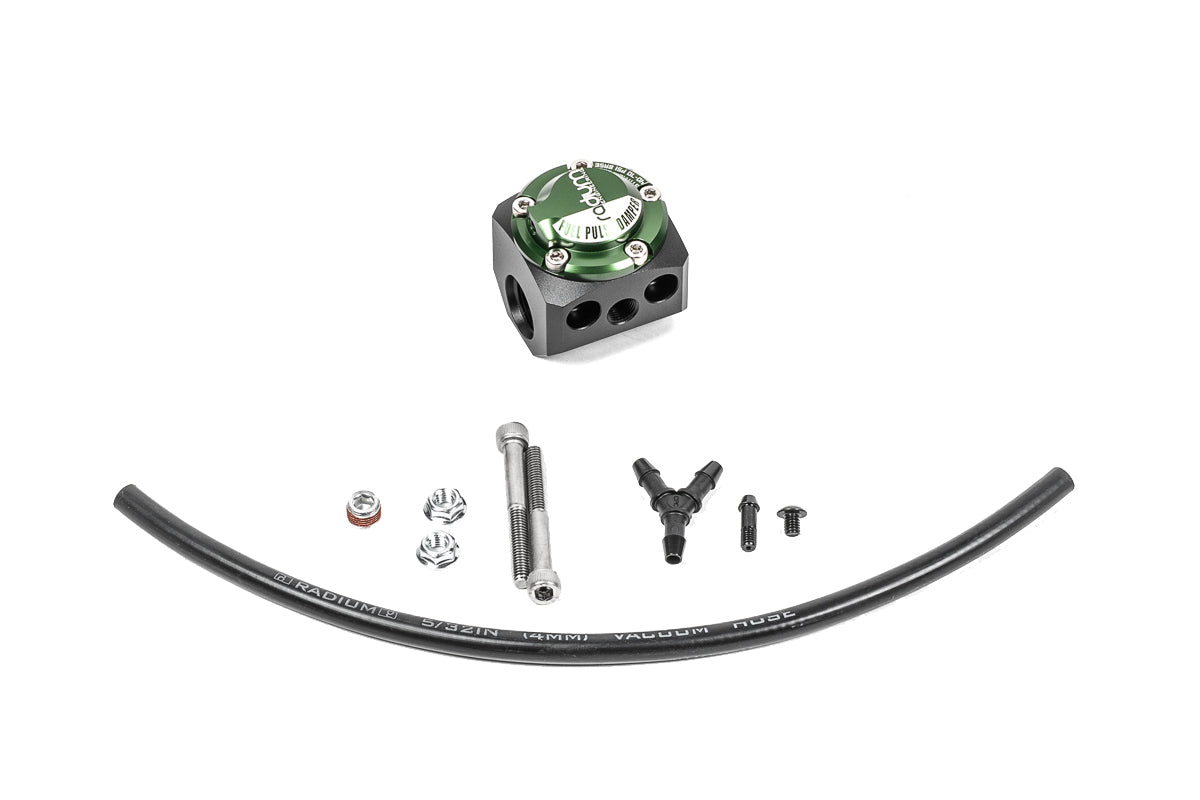

Included

• Anodized aluminum damper top and body
• Stainless steel hardware
• 4mm ID rubber vacuum hose
• Vacuum hose Y-fitting

Fitment

• Universal inline fuel pulse damper for electronic fuel injection systems with an electric fuel pump. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
