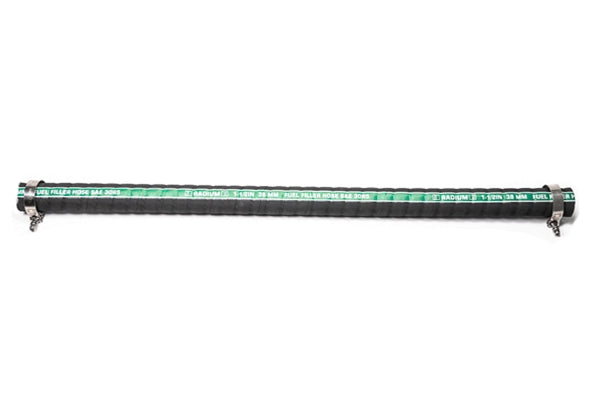

Radium Engineering Fuel Filler Hose Kit 1.5 in ID, 3 ft Black - 20-0597

Radium Engineering 20-0597 fuel filler hose kit, 1.5 in (38 mm) ID, 3 ft (914 mm) black hose with two stainless steel T-bolt clamps. Compatible with all Radium fuel filler systems.

• Convoluted design allows tight bends, with embedded helical wires that resist kinking
• Can be cut down for custom installations. The internal helical wires at cut ends can be sharp
• Compatible with all fuel types
• Inner diameter: 1.5 in (38 mm)
• Wall thickness: 0.176 in (4.47 mm)
• Length: 3 ft (914 mm)
• Working pressure: 20 psi maximum. Burst pressure: 90 psi minimum
• Minimum bend radius: 5 in
• Temperature range: -40 F to 212 F
• Meets SAE 30R5. Made in USA
• Nitrile tube, synthetic fabric reinforcement, two embedded helical wires and a neoprene-coated fabric cover

Included

• One 3 ft length of filler hose
• Two stainless steel T-bolt hose clamps

Fitment

• Radium Engineering fuel filler systems. No specific vehicle applications are listed. (Source: Radium Engineering)

Resources

• Radium Engineering product page

Contact us if you are unsure of fitment or Size HERE
