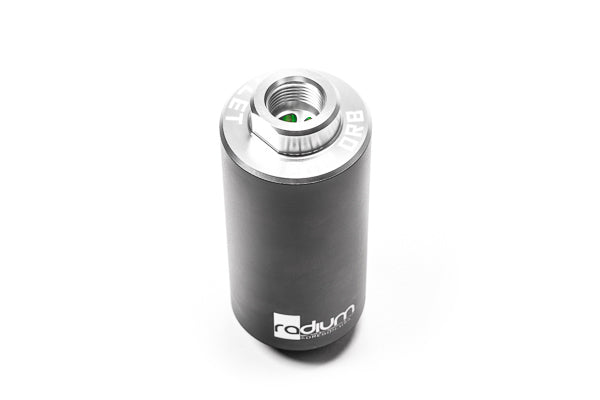

Radium Engineering Fuel Filter with Check Valve, 10AN ORB, Stainless 10 Micron - 20-1220-03

Radium Engineering 20-1220-03 fuel filter with an integrated outlet check valve, 10 micron stainless element and 10AN ORB ports. Universal fitment.

• Anodized silver outlet cap with a one-way check valve
• The check valve can keep fuel rail pressure from dropping when the engine or pump is off, which can speed engine restart. Useful with pumps that have no backflow check valve and with venturi jet pumps on the high-pressure side
• 10 micron stainless element that can be cleaned and reused; meets requirements for fuel injection
• Same elements and dimensions as the 20-0220-0X filters
• Flow: 1 psi drop at 300 LPH and 2.5 psi drop at 700 LPH
• Safe for all fuel types
• Removable end caps with 10AN ORB female threaded ports
• Designed for carbureted and EFI fuel pressures
• Comes preassembled with the stainless element

Fitment

• Universal. (Source: Radium Engineering)

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
