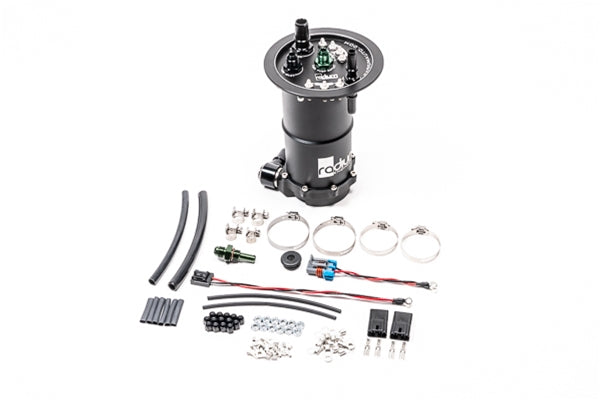

Radium Engineering Fuel Hanger Surge Tank (FHST) Audi R8, Lamborghini Huracan, Gallardo LP, Pump Not Included - 20-0860

Radium Engineering 20-0860 fuel hanger surge tank (FHST) for the Audi R8, Lamborghini Huracan and Lamborghini Gallardo LP. The fuel pump is not included.

• Drops into the left-hand fuel tank opening and works alongside the OEM fuel system, keeping the OEM level sensors in use
• Supplies a separate fuel source for port injectors, keeps a fuel reserve around the pump to prevent starvation and helps prevent pump cavitation at high power
• Three one-way fill valves flow 355 LPH each (1,065 LPH total), and the OEM venturi jet pump feeds up to 302 LPH
• Anodized aluminum with stainless steel hardware, stainless electrical studs and fuel-resistant ETFE-insulated in-tank wiring
• Rated for gasoline, methanol and ethanol
• Includes the FHST components and the hardware needed to mount a pump. Sock filters come with the kit for Walbro and AEM pumps
• Radium tested pumps: Walbro F90000267, F90000274, F90000285, F90000295 and GSS342, AEM 50-1200, Bosch BR540, DeatschWerks DW400, DW440 and DW810, Protec 11928, Fuelab 49614, Injector Dynamics BPC1000 and TI Automotive BKS1001
• Radium recommends the 20-0868 extension (sold separately) for Huracan and Gen2 R8 applications to reach the lowest part of the tank. It is not compatible with the Gen1 R8 or the Gallardo

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
