Radium Engineering Fuel Level Switch Plus Diagnostic Indicator - 20-0519

Radium Engineering 20-0519 fuel level switch plus diagnostic indicator kit, combining the 20-0461 level switch and the 20-0508 LED indicator.

• Level switch installs inside the fuel container in a 1/8 NPT port. Apply PTFE thread sealant to the tapered threads
• Switch output can drive a dashboard indicator, a programmable ECU input for safety, or turn a lift pump on and off where applicable
• Corrosion-resistant stainless steel switch, compatible with all fuel types, with 24 in long 20AWG flying leads
• LED lights when the switch triggers and is mainly useful for diagnosing fueling issues
• Indicator requires a 2AN ORB (5/16-24) threaded port. Soldering is required
• Check signal direction on a test bench before installing. Polarity can be reversed by removing the E-clip and flipping the float

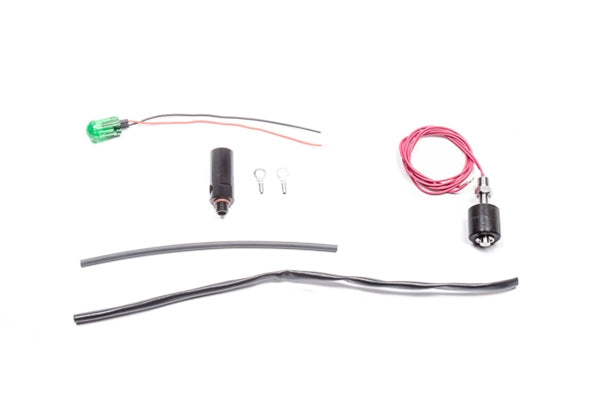

Included

• Level switch with flying leads
• LED with flying leads
• 2AN ORB LED mount
• Eyelet terminals
• Heat shrink
• Abrasion sleeve

Fitment
