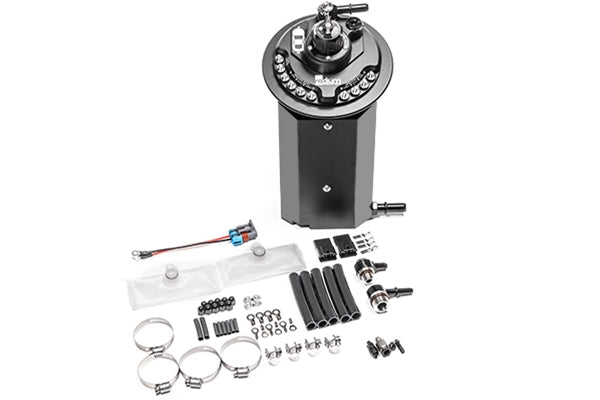

Radium Engineering Fuel Pump Hanger 2011+ Ford Mustang/Shelby, Walbro F90000267/274/285/295, Bosch BR540, DW400/440/810, Protec, Fuelab - 20-1802

Radium Engineering 20-1802 fuel pump hanger for the 2011+ Ford Mustang and Shelby (S197/S550/S650). Built for Walbro F90000267, F90000274, F90000285 or F90000295, Bosch BR540, DW400, DW440 (brushless), DW810 (brushless), Protec 11928 (brushless) or Fuelab 49614 (brushless) fuel pumps (pumps not included).

• Drop-in replacement for the OEM in-tank fuel pump module; uses the OEM fuel level sender
• Permits 1 or 2 pumps
• Pumps without an integrated check valve (Walbro F90000295, Bosch BR540, DW810) cannot be staged if two pumps are installed
• Integrated 1:1 adjustable fuel pressure regulator, vacuum referenced. Four 10-32 vacuum fittings are included
• Fuel starvation protection
• Pump outlet: female thread for 8AN ORB (3/4-16). Two low-profile SAE quick connects are provided for S197 and S550/S650 feed lines
• Return port: female thread for 6AN ORB (9/16-18), used only with the 20-0806 block-off kit. A plug is preinstalled
• Anodized aluminum construction with stainless steel hardware
• High-current electrical hardware with new anti-rotation terminals; fuel-resistant tubing and wiring
• Compatible with gasoline, methanol and ethanol (E85)
• The venturi jet pump consumes 15-45 LPH from the feed line, depending on fuel pressure
• The OEM wiring is rated for 15-30 A depending on trim. Upgraded wiring kits are recommended (one per aftermarket pump, sold separately)
• The hanger removes the in-tank low-micron filter. An external low-micron filter is required, either in a Radium plumbing kit or the Radium fuel filter kit with the stock feed line on 2015+ models

Included

• Fuel pump hanger
• Electrical hardware for the pump(s) and OEM level sender

Pumps are not included or pre-installed.

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
