Radium Engineering Fuel Pump Hanger Toyota Supra MK4 JZA80 Ti Automotive E5LM - 20-1511

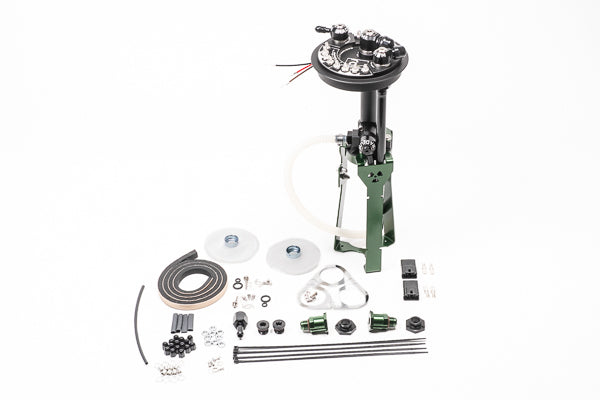

Radium Engineering 20-1511 fuel pump hanger for the Toyota MK4 Supra (JZA80), for Ti Automotive E5LM fuel pumps. Pumps are not included.

• Permits 1 to 2 E5LM pumps
• The Ti Automotive E5LM has no check valve. Radium part 20-1534 is required for each pump used
• 8AN male pump outlet and 6AN male return inlet
• Fuel starvation protection
• High current electrical hardware with new anti-rotation electrical terminals
• Anodized aluminum construction with stainless steel hardware
• The venturi jet pump consumes 15-45 LPH of fuel flow from the pumps, so account for this when sizing pumps

Included

• 8AN male pump outlet fitting
• 6AN male aftermarket return fitting
• 8.5 mm barb for OEM return and 6.5 mm barb for OEM vent
• OEM fuel sensor mount
• Venturi siphon jet pump
• Fuel resistant submersible tubing and ETFE insulated wiring
• Stainless steel hardware
• Pump inlet filtration

Fitment

• Toyota MK4 Supra (JZA80). (Source: Radium Engineering)
