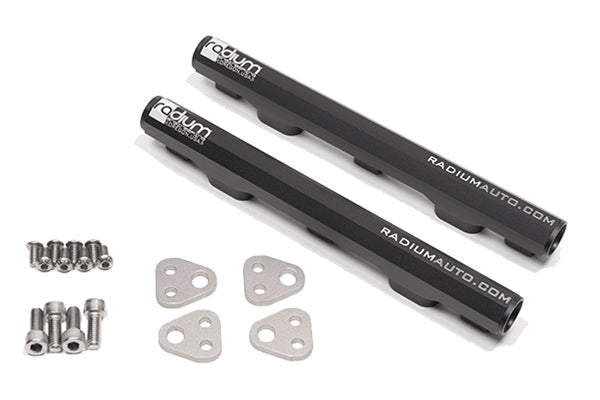

Radium Engineering Fuel Rails Toyota 2GR-FSE - 20-0899

Radium Engineering 20-0899 fuel rails for the Toyota 2GR-FSE (3.5L V6) engine. Fits the Lexus IS 350, RC 350, GS 350, GS 450h, IS 300 AWD, Toyota Crown and Toyota Mark X.

• Large 0.7 in internal bore to support all necessary engine power requirements
• Anodized aluminum construction for wear and corrosion resistance
• Ports tapped for 8AN ORB fittings
• Machined ports accept 14 mm upper injector O-rings
• Fits under the factory intake manifold and engine cover
• Can be converted to a pressure-regulated return system
• No special tools required for installation
• The OEM fuel injectors are not compatible with these fuel rails. Aftermarket Bosch EV14 injectors are used and must be extremely short because of tight intake plenum clearance

Included

• Fuel rails
• Stainless steel mounting tabs

Fittings, regulators, pulse dampers, gauge adapters and injectors are sold separately.

Fitment

Resources

• Radium Engineering product page
• Radium installation instructions (PDF)

Contact us if you are unsure of fitment or Size HERE
