Radium Engineering Universal Single Catch Can Kit 10AN, Fluid Lock - 20-1810-FL

Radium Engineering 20-1810-FL universal single catch can kit with Fluid Lock, 10AN kit for 5/8 in ID hose.

• Machined 6061 aluminum
• Both halves and all ports are O-ring sealed, rated for pressurized (forced induction) applications
• 10AN ORB (7/8 in female thread) main inlet and outlet
• Integrated M8x1.25mm threaded dipstick
• 4AN ORB (7/16-20) female drain port with plug, for installs with no room to unscrew the lower half
• 7 fl oz capacity, 4.9 in tall without fittings, 2.45 in outside diameter
• Fluid Lock prevents overfilling and holds collected fluid until the can is emptied
• Choose the kit by the measured fitting or hose diameter on the engine, not by vehicle. 10AN fits 5/8 in ID hose
• Some included fittings will not be used. Extra fittings are sold separately
• Not designed for use with aftermarket crankcase vacuum pumps

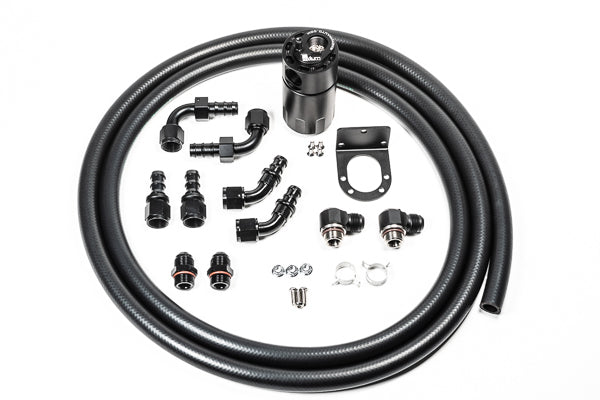

Included

• Fluid Lock catch can
• Aluminum mounting bracket with stainless M6x1mm bolts and flanged M6x1mm nuts
• 2x 10AN ORB to 10AN male banjo inlet and outlet adapters
• 2x 10AN ORB to 10AN male adapters
• 10AN PushLok hose ends: 2x straight, 2x 60 degree, 2x 90 degree
• 10 ft of 5/8 in ID PCV hose
• 2x spring clamps for 5/8 in hose
• Service interval decal

Fitment

• Universal. For vehicles not covered by Radium bolt-in catch can kits; no specific vehicles listed. (Source: Radium Engineering)
