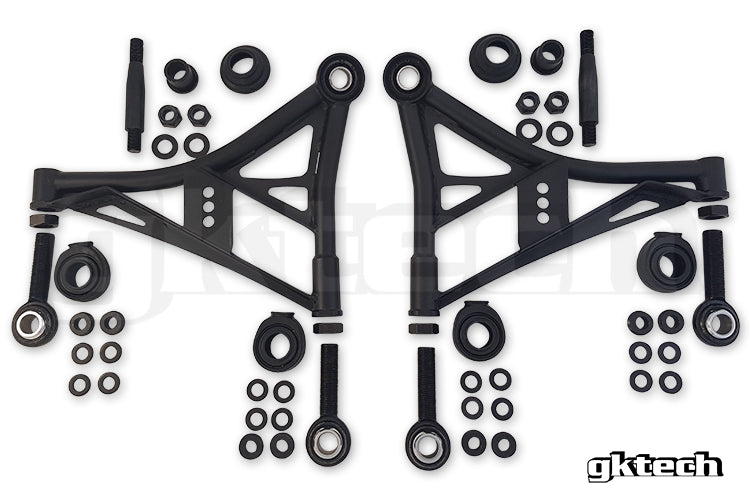

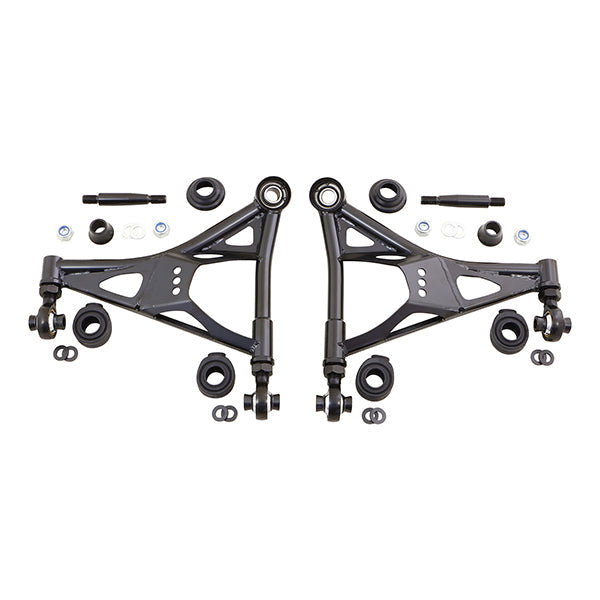

GKTech - V2 240sx/Skyline/Z32 Adjustable Rear lower control arms - REAR-LCAX

The V2 GKTECH Rear Lower Control Arms (aka LCA's) are built to a high standard and are far from the generic garbage that most people are used to, but at a very reasonable price. These arms are CAD designed, FEA tested, track tested (including 2 accidental crashes), have CNC machined ends, they're mandrel bent, CNC tube notched and TIG welded and to finish the arms off they're E-coated (aka electrophoresis coating) for rust prevention.

To top it off we're exclusively using high quality Teflon lined bearings (over $140 in bearings cost for the pair on their own) Our rear lower control arms allow for + or - 0.59'' (15mm) of track width and are the only LCA's that we know of that allow adjustment perpendicular to the centreline of the car which means that as you change the width your wheel doesn't push further back or forward into the wheel arch (unintentionally altering your suspension curves).

Wider track for FR cars gives more grip and less body roll and by adjusting the rear LCA's you can alter a vehicles understeer/oversteer properties.

- Feature 5/8" Teflon lined sphericals (inner) and high mis-alignment 3/4 sphericals (outer) which eliminates the flex found in factory rubber bushing offering a more direct and predictable feel.
- Manufactured from chromoly 0.86'' (22mm) OD (0.09'' (2.5mm) wall) tube and 4130 chromoly sheet with CNC machined ends.
- CAD designed, FEA tested, CNC machined ends, CNC mandrel bent arms (toe arms, tension rods and LCA's), CNC tube notched (camber and LCA's) and TIG welded

NOTE: If you are intending on running the rear LCA's any wider than 0.39'' (10mm) over factory it is recommended that you run axle spacers as seen here: http://www.gktech.com/products/#43

NOTE: If you' are intending on running the rear LCA's any shorter than around -0.19'' (5mm) please ensure that your suspension arms have an adequate inward adjustment.

NOTE: If you are intending on running the rear LCA's shorter than the OEM arms please ensure that your upper arms have adequate adjustment based on your setup. A raised subframe and/or drop knuckles both reduce the amount of negative adjustment available.

The Teflon lined heim joints come with a 1 year replacement warranty. We stock spare bearings so even after the 12 months is up we can still help with replacements, worse case scenario they're a 5/8" heim joint for the inner bearings and a 3/4" for the outer (ball joint) and are readily available through your local autoshop. Are these suspension arms legal for use on street cars? Our understanding is that any suspension arm with a heim joint is not legal for street use in Australia. However we do recommend that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a heim joint on public roads is at your discretion. Are there any special tools required? No, a spanner set will do the job which we do sell separately here - open ended wrenches Do you carry spare parts for this product? Yes we carry the following spare parts for this product, PCML12TES - https://us.gktech.com/replacement-pcml12tes-heim YPB12T - https://us.gktech.com/replacement-ypb12t-spherical-bearing
