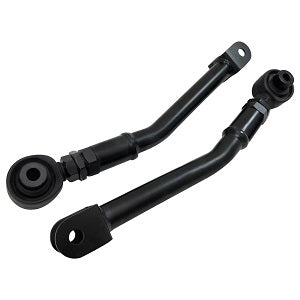

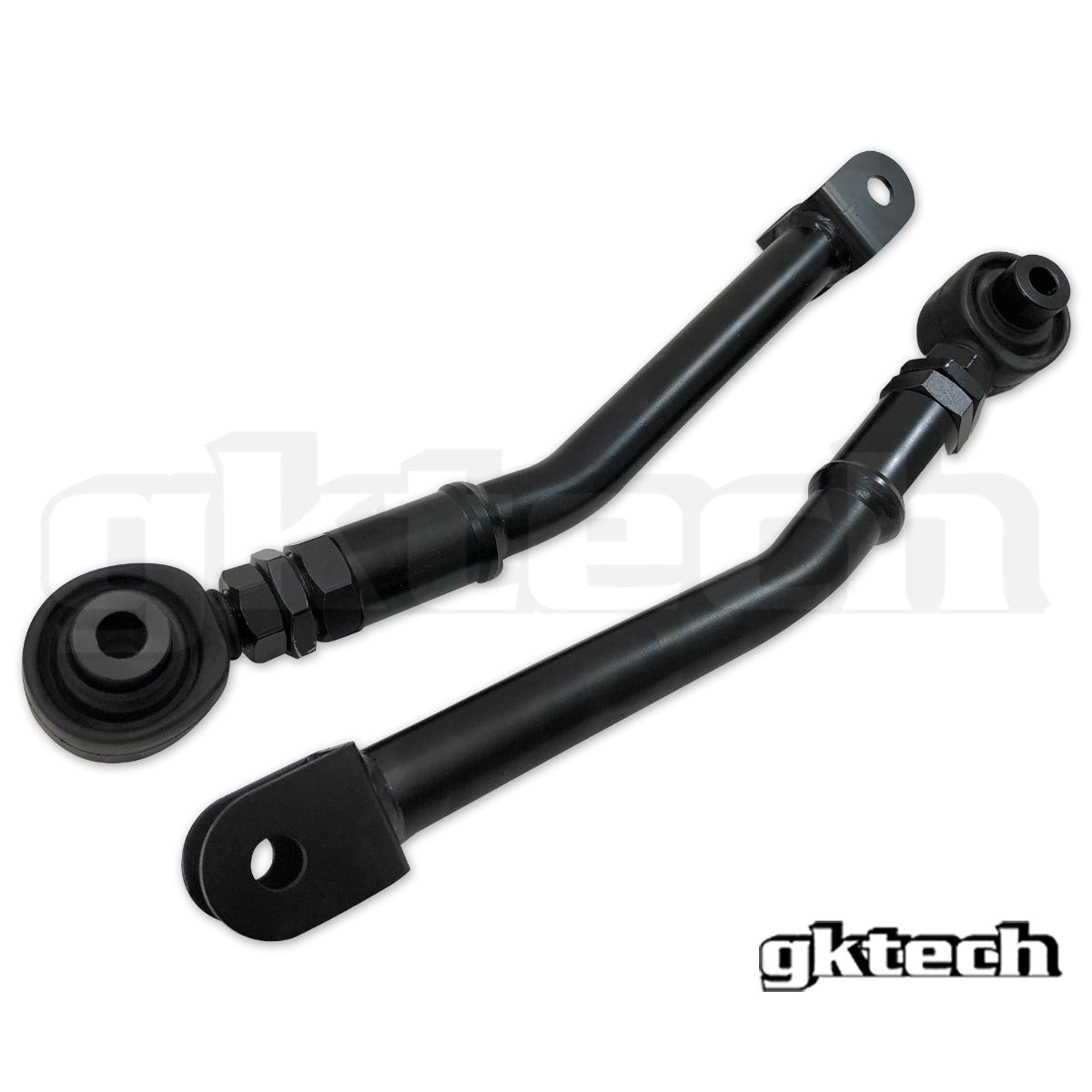

GKTech - V4 - S14 240sx/R33 Skyline Rear toe arms - s145-toex

The new V4 GKTECH suspension arms are an even further improved version of our popular V3 Chromoly arms. The new V4's now have even more adjustment. Rear toe arms give you the ability to adjust and tune your vehicle's rear toe.

The lengths on these rear toe arms are fully adjustable to your specs when doing an alignment and with the right adjustments, straight line and cornering of your vehicle will be improved.

- V4 arms feature high quality 5/8" Teflon lined pillow ball rod ends which eliminate the flex found in factory rubber bushing offering a more direct and predictable feel.
- V4 arms are manufactured from chromoly 28mm OD (3mm wall) tube with billet CNC machined ends with recessed ends for additional strength.
- CAD designed, FEA tested, CNC machined ends, CNC mandrel bent arms (toe arms, camber and rear LCA's), CNC tube notched (camber and LCA's) and TIG welded.
- 20 degree bend in the end of the arm to clear chassis rails on lowered vehicles

NOTE: Will NOT suit cars with a HICAS subframe.
NOTE #2: if you require S13 240sx, A31 Cefiro or R32 Skyline rear toe arms, please refer to our other listing to suit.

What is the difference between the S13 240sx toe arms and the S14/S15 version? The S14/S15/R33/R34 version is to suit a 50mm width subframe, where as the S13 240sx/R32 version is to suit a 40mm width subframe. Besides that they're the same. If you're running an S14/S15 subframe in your S13 240sx you will need to order S14/S15 toe arms. Will these fit my car? We can only confirm fitment for the vehicles listed above under "confirmed fitment". How long is the warranty on these arms? All GKTECH suspension arms come with a lifetime warranty against manufacturing defects. The Teflon lined heim joints come with a 1 year replacement warranty. We stock spare bearings so even after the 12 months is up we can still help with replacements, worse case scenario they're a 5/8" heim joint and are readily available through your local autoshop. Are these suspension arms legal for use on street cars? We recommend if you intend to use on public roads that you contact your local RTA for clarification/confirmation. Whether you use a suspension arm with a heim joint on public roads is at your discretion. Are there any special tools required? No, a spanner set will do the job which we do sell separately here - open ended wrenches Do you carry spare parts for this product? Yes we carry the following spare parts for this product, PCML12TES - PCML12TES
