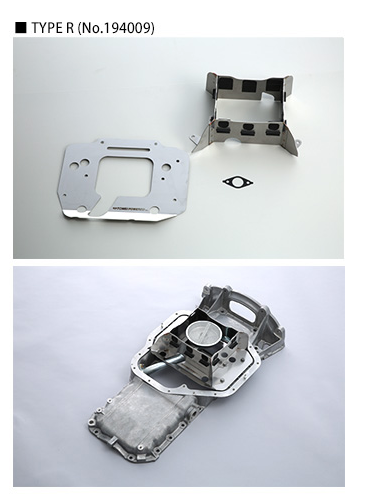

Tomei Powered OIL PAN BAFFLE PLATE for 1JZ/2JZ TYPE R - 194009

■ Keeps the oil from sloshing away from the oil pickup during hard cornering.

It allows the one way movement of oil and can keeping it where the oil pickup is at all times by preventing oil deviation with the use of swing plates on hinges.

■ Competition proven, true performance.

Designed based on the knowledge and experience we acquired in Formula Drift series. It’s well proven in the real competition to increase reliability of the whole engine by helping to properly lubricate the engine at all times.

*Make sure the oil pan and oil strainer you are installing this product with are the right application prior to the installation.

*The Lower Baffle of this kit will interfere with the oil level sensor float. Please note that this product has been designed to use without the oil level sensor.

JZA80 / JZZ30

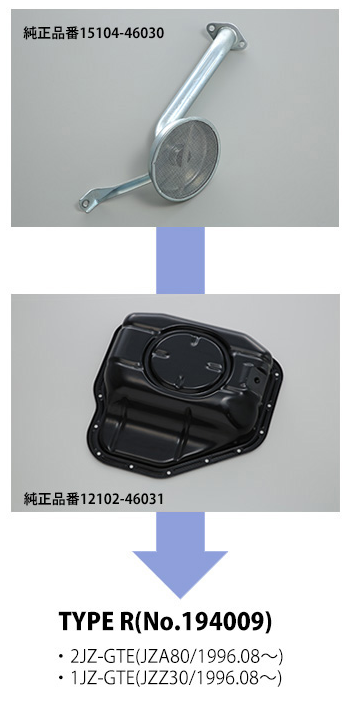

This product has been designed to fit Toyota
P/N:12102-46031 (OIL PAN NO.2) and P/N: 15104-46030
(STRAINER ASSY) only.
（※This product only fits Rear sump models.）
