GKTech - Toyota 5x114.3 Hub Centric Wheel Spacers - 25mm Standard Studs - TOYO-25MMSS

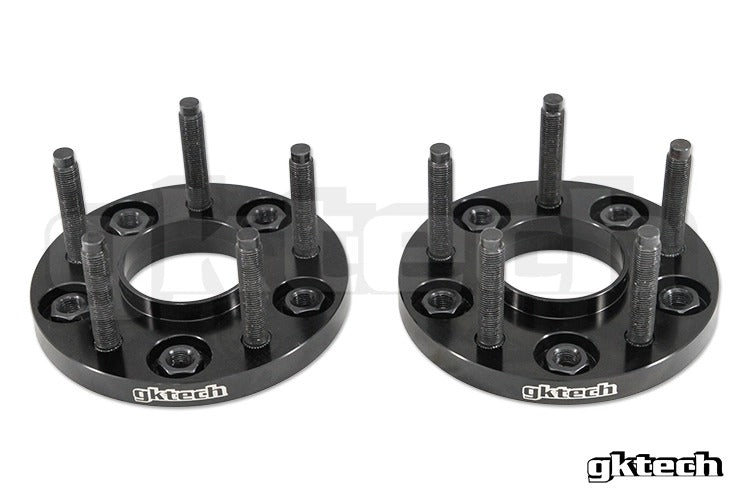

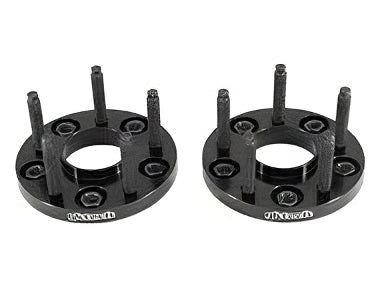

The GKTECH bolt on spacers are used to space the wheel, they not only allow for adjustment of the fitment of your wheels but can provide clearance to the suspension components and even provide more lock!

The wheel spacers are hub centric to suit Toyotas 60.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength along with grade 10.9 extended studs.

Our unique design uses an oval-shaped stud to prevent any chance of the stud spinning within the spacer and damaging the knurl when over tightened, a common occurrence with generic spacers found on the market.

NOTE: Sold as a PAIR

NOTE#2: Spacers with a 73.00mm wheel bore will NOT fit with OEM Toyota wheels.

Sizes (width)	PCD	Centre bore	Wheel Bore	Stud length	Stud thread
15mm	5x114.3	60.1mm	60.1mm	60mm	M12 x 1.5 thread
20mm	5x114.3	60.1mm	60.1mm	60mm	M12 x 1.5 thread
25mm	5x114.3	60.1mm	60.1mm	60mm	M12 x 1.5 thread
30mm	5x114.3	60.1mm	60.1mm	60mm	M12 x 1.5 thread
40mm	5x114.3	60.1mm	60.1mm	60mm	M12 x 1.5 thread
50mm	5x114.3	60.1mm	60.1mm	60mm	M12 x 1.5 thread

What torque should the nuts be set to? As per the Toyota tech guide we recommend a torque setting of between 72-87 Ft. Lbs. Anything more than this will strip the stud and is DANGEROUS. The setting of 72-87 is as per Toyotas specifications. Are these wheel spacers hub centric? Yes, these spacers are hub centric to suit Toyotas specifically. Are these wheel spacers strong? Yes, these wheel spacers are very strong. The spacers themselves are manufactured from T6-6061 Aluminium and we use grade 10.9 fittings. That said, please note that these are for off road use and are not intended for use on public roads. Do you have extended wheel studs available on their own? No, we do not have extended wheel studs available for Toyotas.
