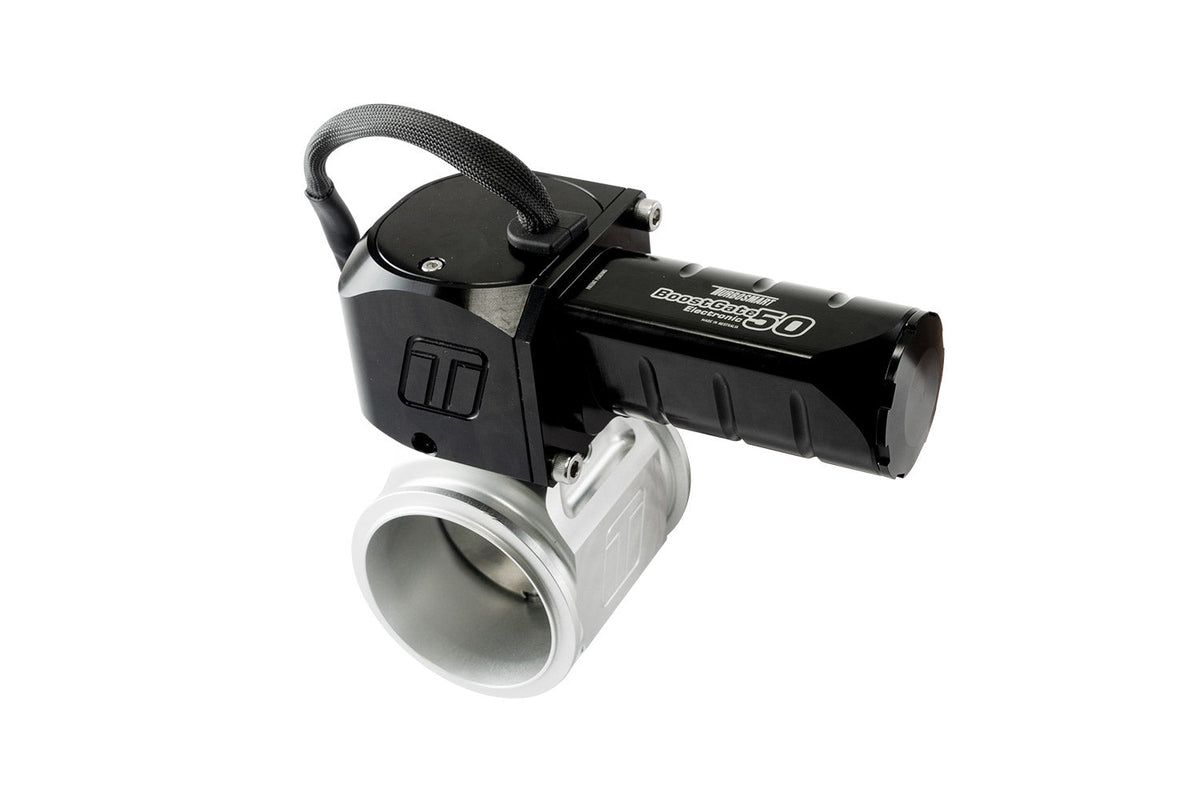

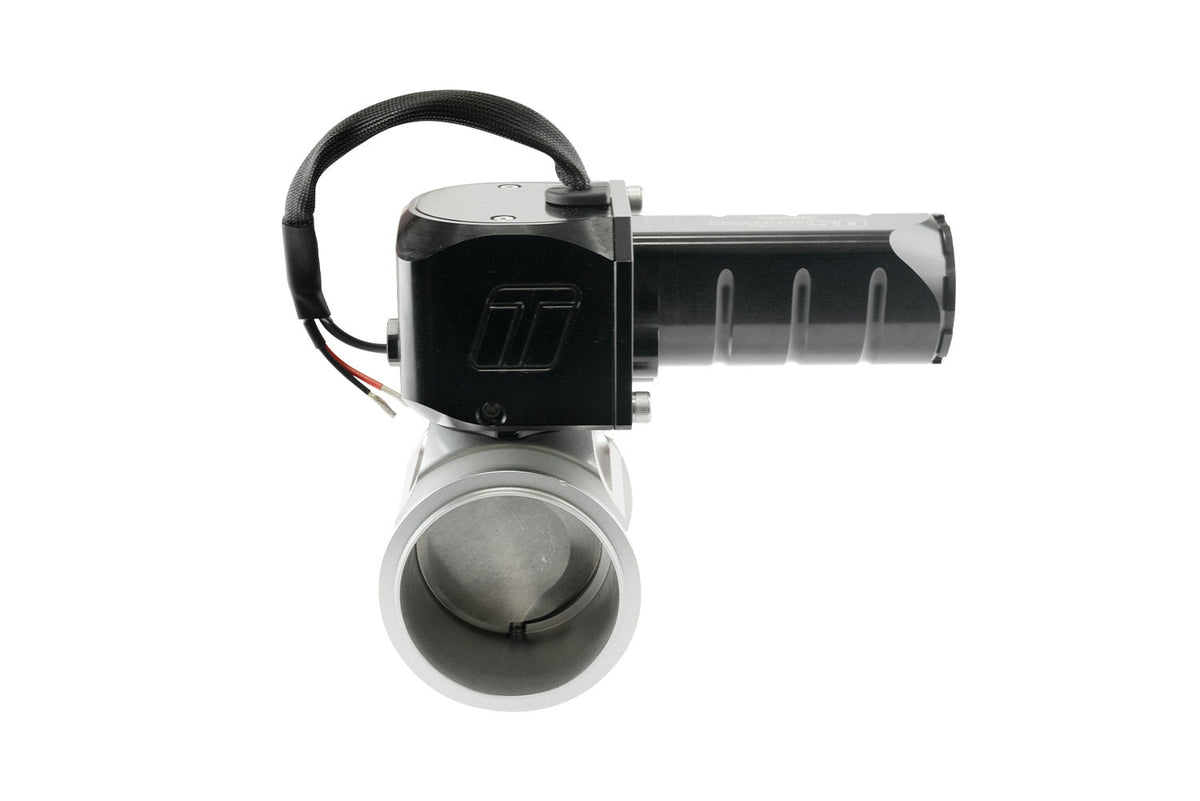

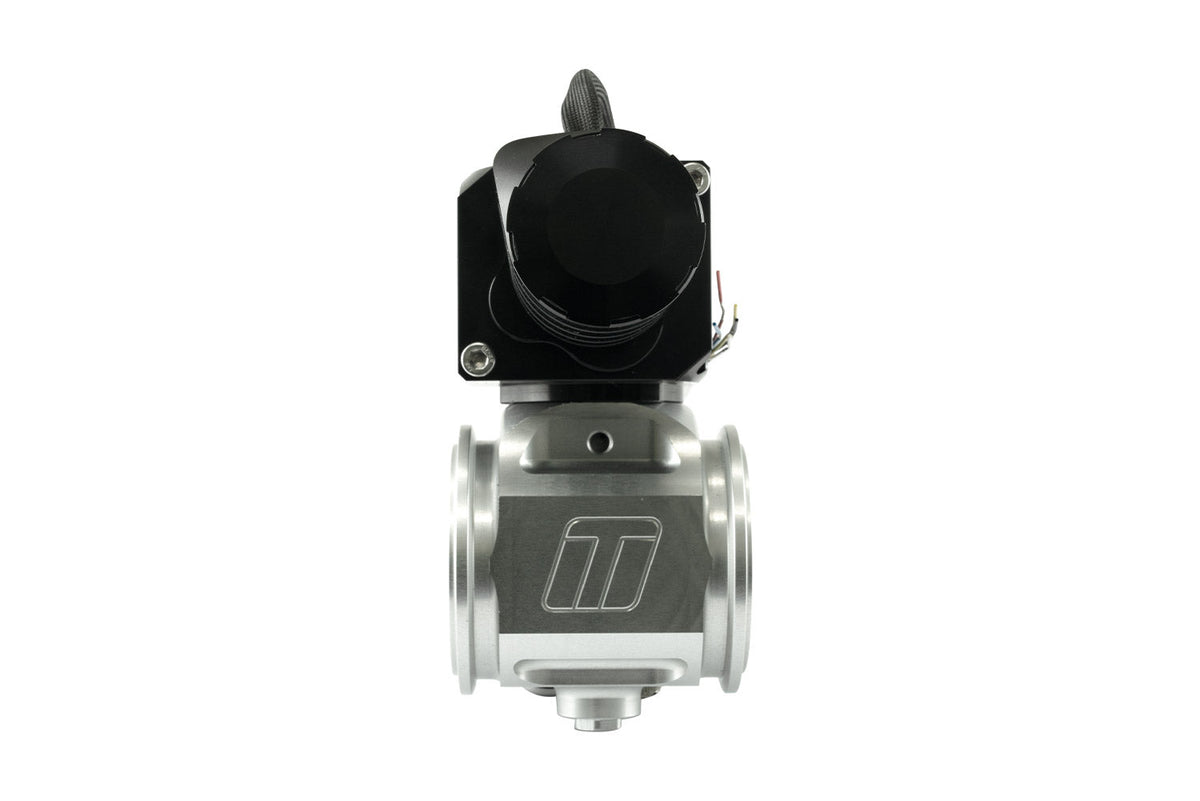

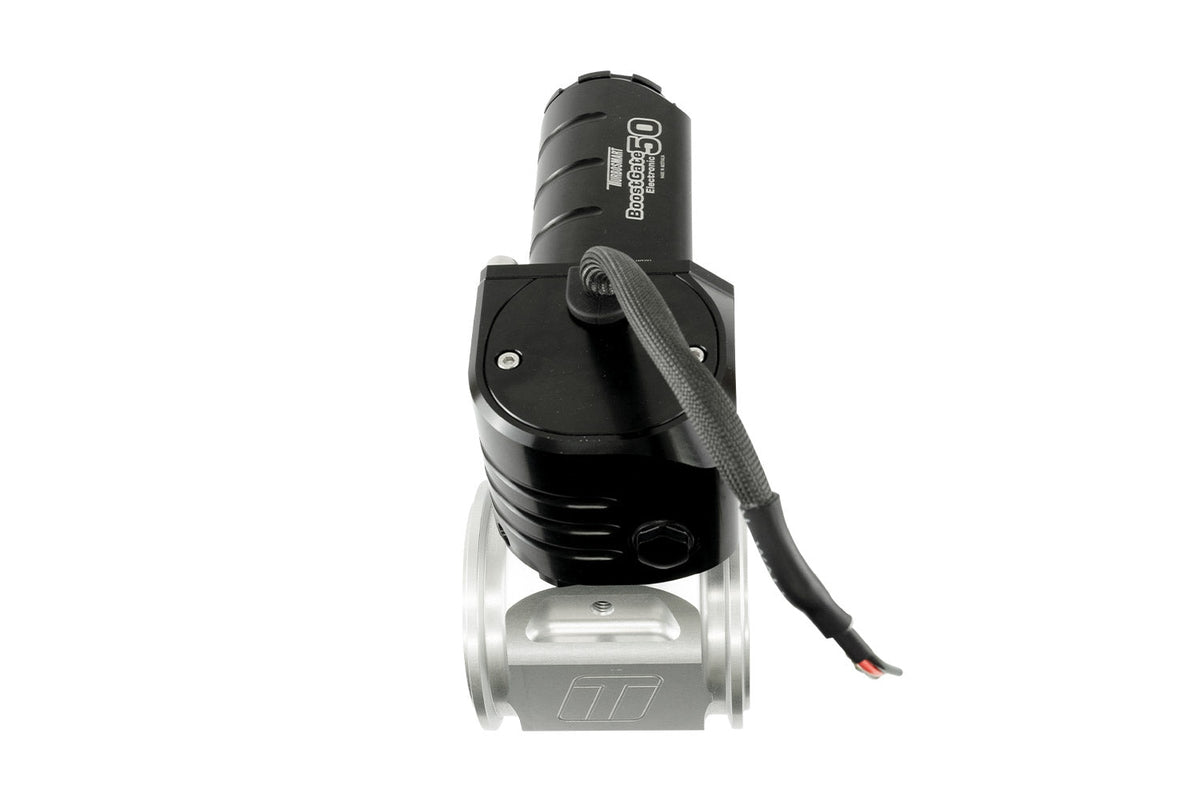

Turbosmart eBG50 Electronic BoostGate 50 Charge Air Valve - TS-0265-1042

Turbosmart eBG50 Electronic BoostGate 50 charge air valve, part number TS-0265-1042, for charge-air boost control on the charge pipe.

• 50 mm (1.97 in) butterfly-style, zero-offset valve
• Flow rated at 383.9 CFM (10.87 m3/min)
• Billet aluminium main body with 630 stainless steel butterfly and shaft
• 360-degree V-band mounting; actuator clockable to two 120-degree positions
• Fully electronic actuation (dual H-bridge input)
• Onboard 0-5 V analogue actuator temperature sensor and valve position sensor, plus PWM digital valve position sensor
• 7-wire unterminated flying lead loom
• Patent-pending Zero-Backdrive gearbox to reduce power consumption

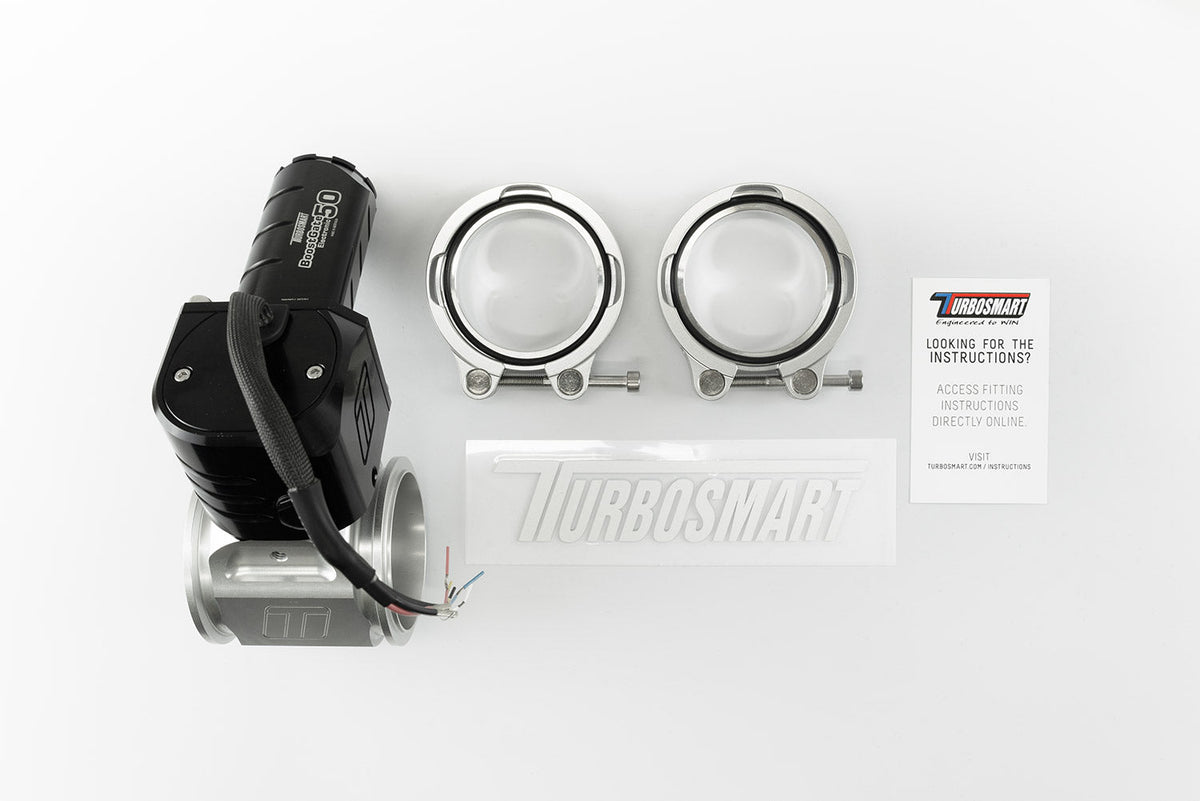

• Includes eBG50 Electronic BoostGate 50, V-band clamps, aluminium weld flanges and Turbosmart decal

Fitment

• Universal charge pipe mounting, weld-in flange. No vehicle-specific fitment is listed; Turbosmart notes it is suited to applications such as drag racing. (Source: Turbosmart)
