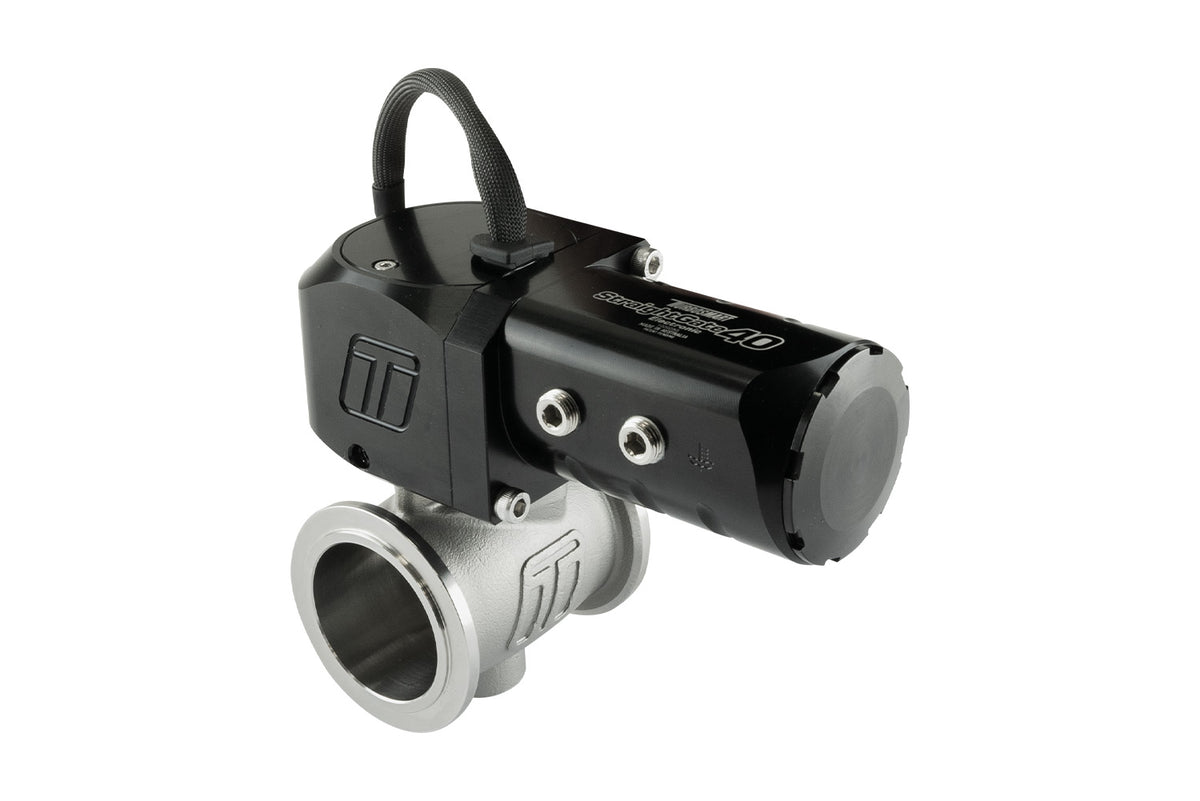

Turbosmart Electronic StraightGate40 eSG40 External Wastegate - TS-0563-1002

Turbosmart Electronic StraightGate40 eSG40 External Wastegate, part number TS-0563-1002.

• 40mm (1.57 in) zero-offset butterfly valve, rated at 217.4 CFM (6.16 m3/min)
• Stainless steel 630 valve and shaft, stainless steel 347 main body
• Heat-treated 431 stainless steel V-band clamps, mountable at any angle on the V-band
• Actuator clockable to three positions, 120 degrees apart
• Full electronic actuation with dual H-bridge input
• Analog (0-5V) actuator temperature sensor and valve position sensor
• Digital (PWM) valve position sensor
• 7-wire unterminated flying lead loom
• Liquid cooling for actuator stability
• Smallest butterfly-style external wastegate in the StraightGate range, made for tight engine bays
• Needs a programmable ECU with a 20 A H-bridge output, or an external driver such as the BlackBox
• Supplied with: unterminated flying lead, inlet and outlet V-bands, inlet and outlet weld flanges, Turbosmart decal

Fitment

• Universal external wastegate. No vehicle-specific fitment is listed. (Source: Turbosmart)

Resources

• Turbosmart product page
• Turbosmart installation guide
• Turbosmart data sheet (PDF)

Contact us if you are unsure of fitment or Size HERE
