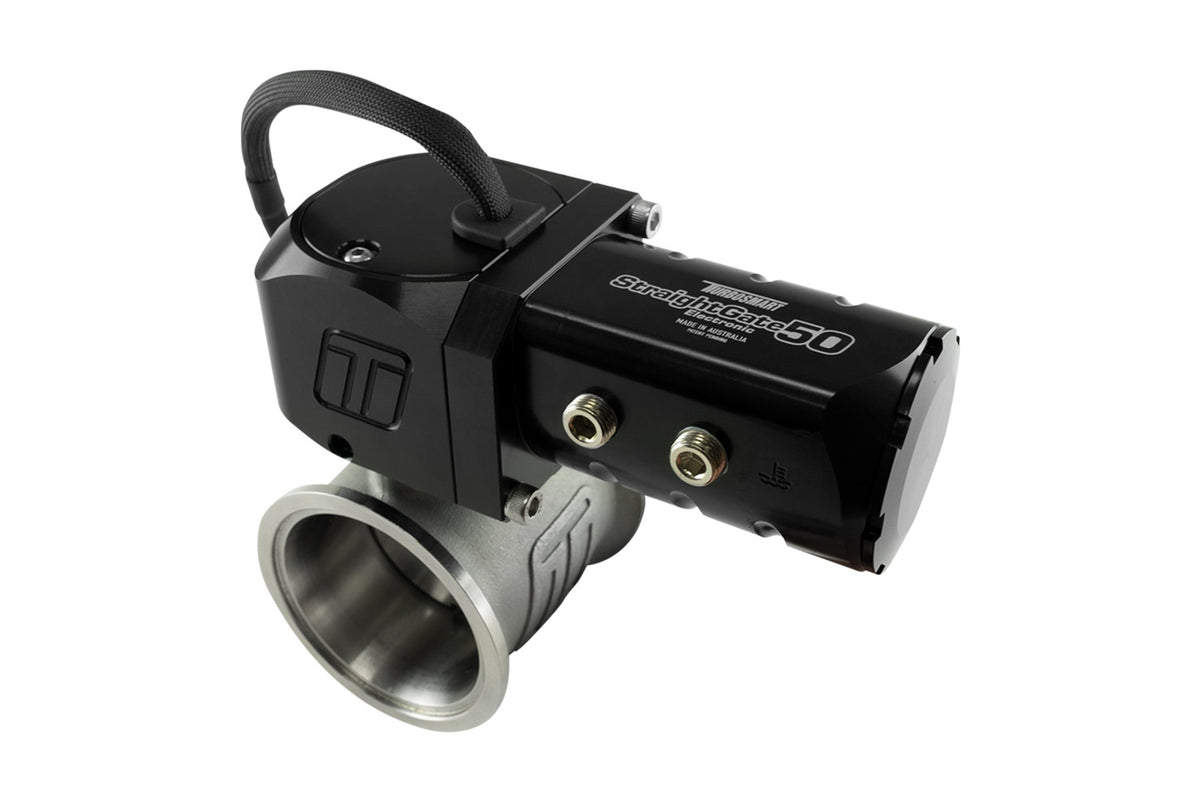

Turbosmart Electronic StraightGate50 eSG50 External Wastegate - TS-0565-1002

Turbosmart Electronic StraightGate50 eSG50 External Wastegate, part number TS-0565-1002.

• 50mm zero-offset butterfly valve, rated at about 383.9 CFM (10.87 m3/min)
• Stainless steel 630 valve and shaft, stainless steel 347 main body
• Heat-treated 431 stainless steel V-band clamps, mountable at any point through 360 degrees
• Actuator clockable to three positions, 120 degrees apart
• Full electronic actuation with dual H-bridge input
• Onboard 0-5V analog actuator temperature sensor and valve position sensor, plus PWM digital valve position sensor
• 7-wire unterminated flying lead loom
• Liquid-cooled actuator
• Needs a programmable ECU with a 20 A H-bridge output, or an external driver such as the BlackBox controller (sold separately)
• Supplied with: unterminated flying lead, inlet and outlet V-bands, inlet and outlet weld flanges, Turbosmart decal
• Race use only. No CARB EO number. Not legal for sale or use on pollution-controlled motor vehicles in California

Fitment

• Universal external wastegate. No vehicle-specific fitment is listed. (Source: Turbosmart)
