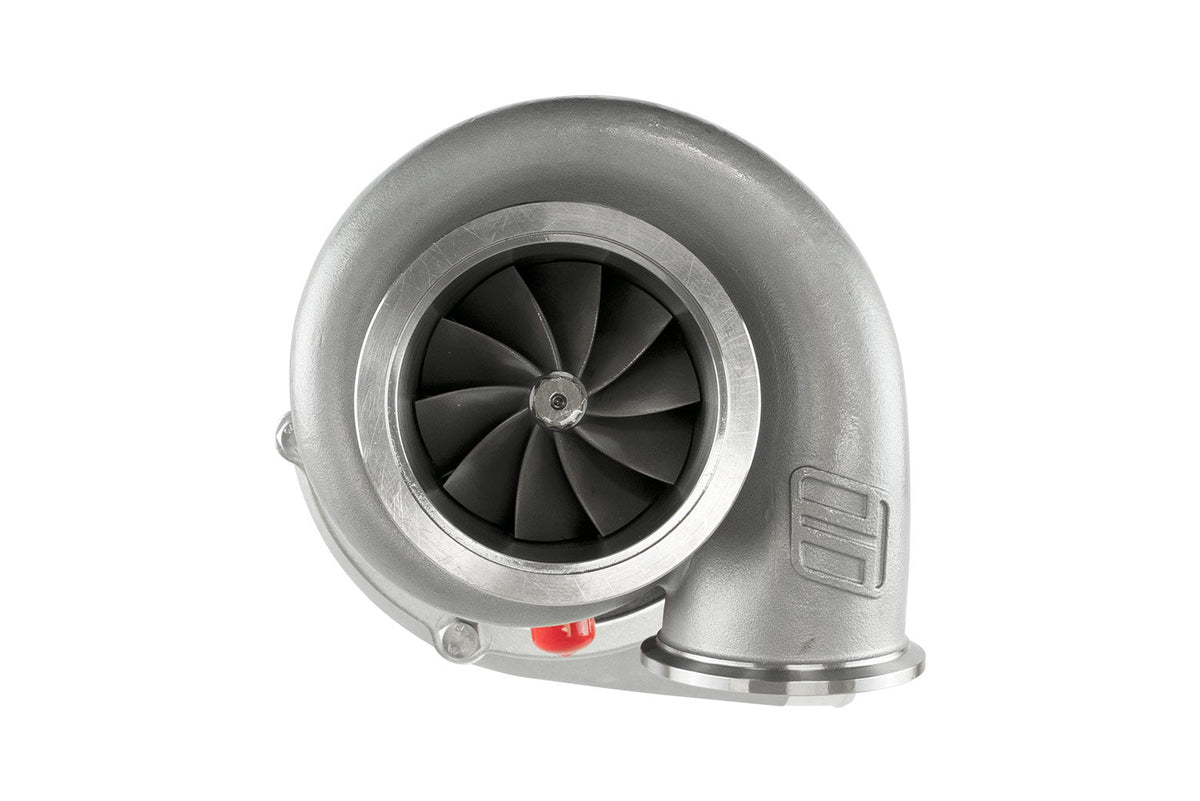

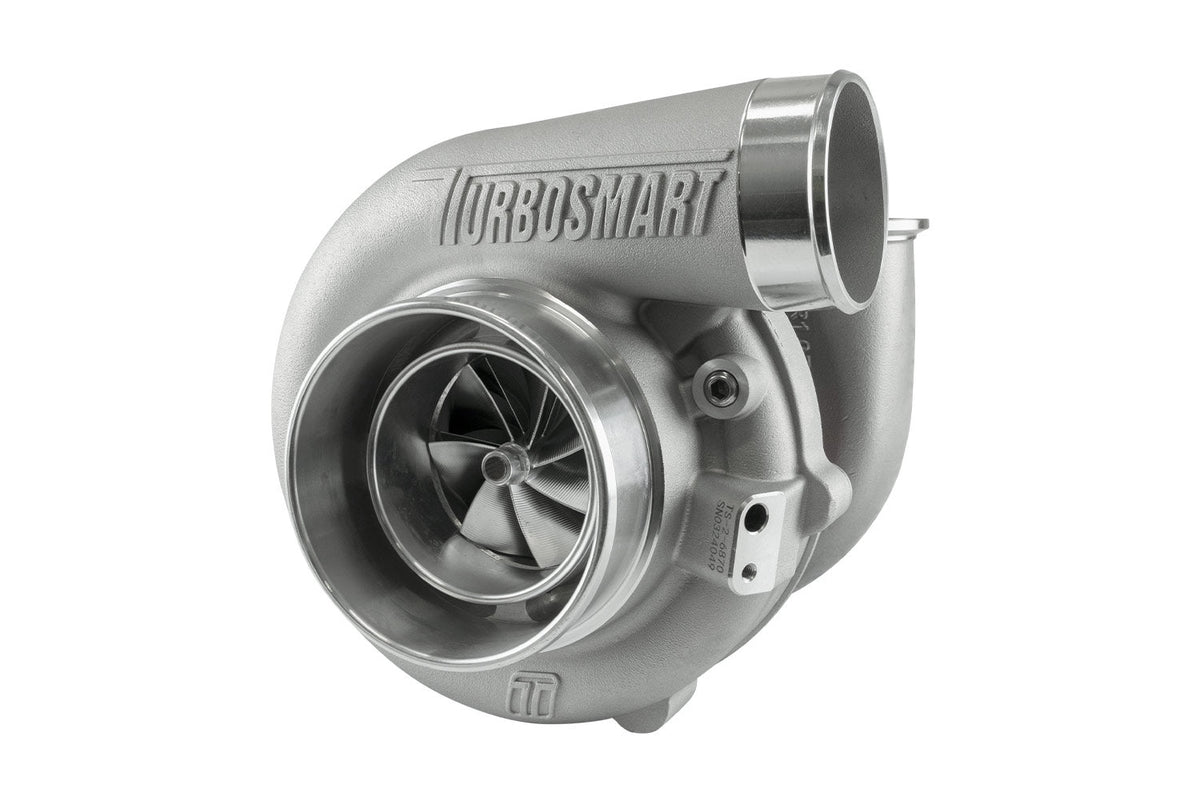

Turbosmart TS-2 Performance Turbocharger (Water Cooled) 6870 (Kompact) V-Band 0.96AR Externally Wastegated - TS-2-6870B-VB096E

Turbosmart TS-2 performance turbocharger 6870, V-Band, 0.96AR, externally wastegated (TS-2-6870B-VB096E).

• TS-2 series oil and water cooled turbocharger, externally wastegated
• Every turbocharger ships with weld flanges, V-band clamps, gaskets and oil feed and drain fittings included
• Compressor inlet 4" / 101.6mm, compressor inducer 68mm
• Turbine inlet: V-band (3.00"); turbine exducer 70mm; turbine A/R 0.96
• Turbine outlet: V-band (3.00")
• Weight 6.06kg / 13.3lbs
• Horsepower rating 850-990HP
• Unparalleled transient response
• Aggressive aerodynamics with 7+7 2618 aluminium splitter wheels
• Lightweight 310s stainless steel investment cast turbine housing and lightweight aluminium compressor cover
• CFD-designed housings for optimal A/R and flow
• 713C Inconel turbine wheel for extreme EGT
• VSR speed balanced, proprietary dual ceramic bearing system
• Integrated iron backplate on the center housing

Fitment

• Universal turbocharger (not vehicle specific) (Source: Turbosmart)

Resources

• Turbosmart product page
• Installation guide
• Installation instructions

Contact us if you are unsure of fitment or Size HERE
