Link 2 x CAN Lambda Kits (CANLAM) - 125-9200B

Link 2 x CAN Lambda Kits (CANLAM) - 125-9200B

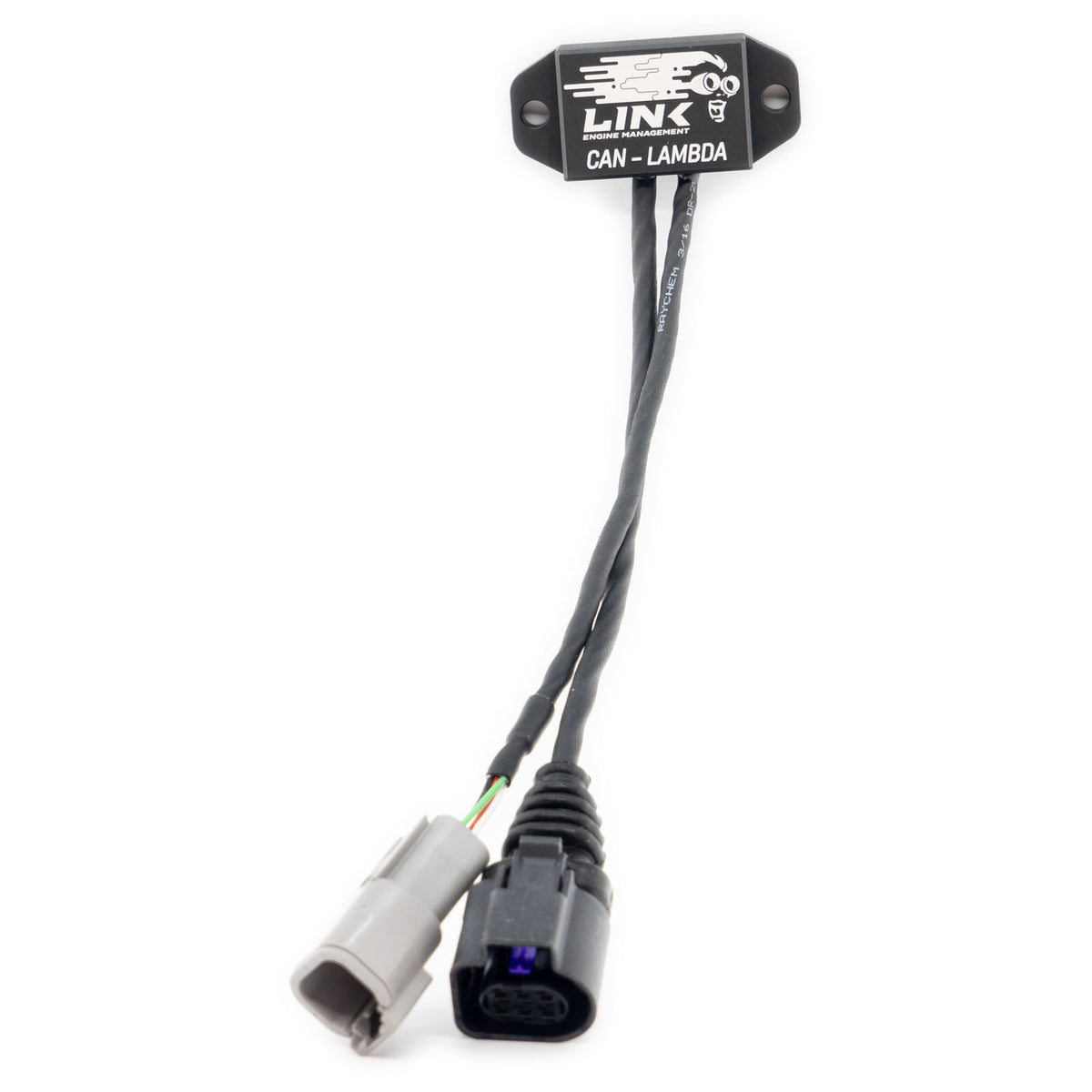

Two Link CAN Lambda kits in one bundle, ideal for twin-wideband setups such as V engines or bank-to-bank monitoring. Each kit combines a Link CAN Lambda module with a Bosch LSU4.9 wideband sensor for fast, accurate digital air-fuel ratio measurement over CAN bus, with no free-air calibration required.

Suits: All Link G4+, G4X and G5 ECUs, plus other aftermarket ECUs that support the Link CAN Lambda protocol.

Includes: 2 x Link CAN Lambda Kit (125-1000), each with CAN Lambda module, Bosch LSU4.9 sensor, Deutsch 4-way connector kit, O2 bung and plug, stickers and Quick Start Guide.

Specifications

• Lambda measuring range: 0.67 to 10
• CAN bit rates: 1 Mbit/s, 500 kbit/s, 250 kbit/s and 125 kbit/s
• See the CAN Lambda Kit listing for full specifications.

Notes

• Each module must be set to its own CAN ID when running more than one. See the user manual.
• The Bosch LSU4.9 sensor is sold for aftermarket use only. Bosch's warranty excludes aftermarket applications, so no warranty is provided on the sensor.

You may also need

For a Link G4+ or G4X Plug-in ECU, a CANPCB cable (101-0022) and a CANF field-installable CAN plug (101-0020).

Downloads

• CAN Lambda User Manual (PDF)
• CAN Lambda Quick Start Guide (PDF)
