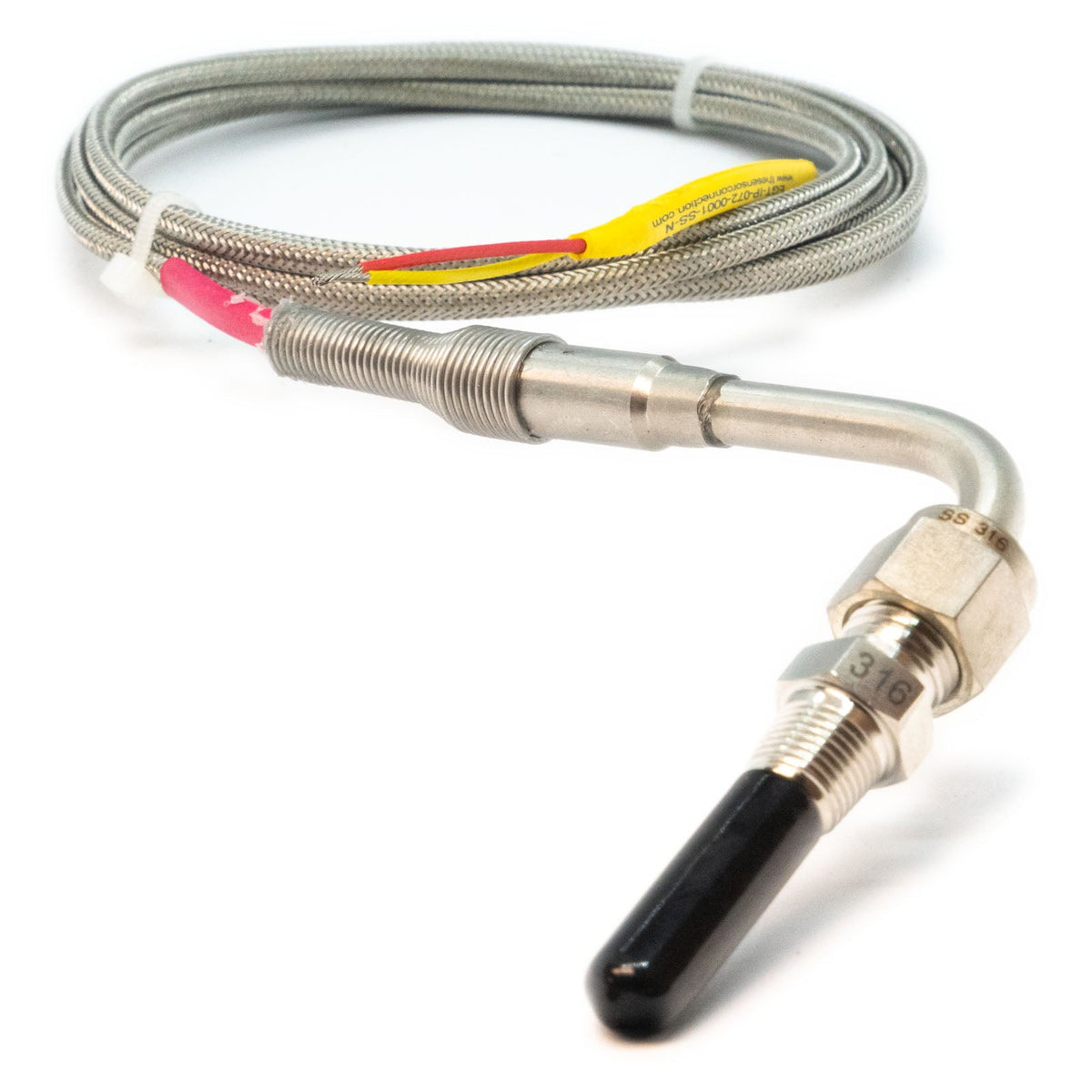

Link 8 x Exhaust Gas Temperature Probe Bundle (EGTs) - 101-0146-8B

Link 8 x Exhaust Gas Temperature Probe Bundle (EGTs) - 101-0146-8B

Eight Link extreme-duty, fast-response Type K EGT probes in one bundle, ideal for individual-cylinder exhaust gas temperature on V8s. The exposed sensing junction gives the fastest response, and each probe has stainless steel protected wires and an adjustable compression fitting for extreme engine test and racing environments.

Suits: Link ECUs and EGT-to-CAN modules with Type K thermocouple inputs, such as the TCC08 8 Channel EGT to CAN Module (101-0388).

Includes: 8 x Link EGT Probe (101-0146), each with a 316 stainless steel adjustable compression fitting.

Specifications

• Thermocouple type: K; range -100 to 1300°C (-148 to 2372°F)
• Accuracy: +/-0.4% of reading (about +/-1.1°C)
• Probe diameter: 1/4 inch (6.35 mm); exposed, ungrounded junction
• Response time: 150 ms
• Sheath: Inconel; cable: stainless steel overbraid, Teflon-insulated 20 gauge, 1.8m (6ft)
• Compression fitting: 316 stainless steel, adjustable, 1/8-27 NPT male
• Wiring: + Yellow, - Red

Downloads

• EGT Probe User Manual (PDF)
• EGT Probe Mounting Guide (PDF)
