Link CANEXT - Link CAN Extension Cable 2m - 101-0214

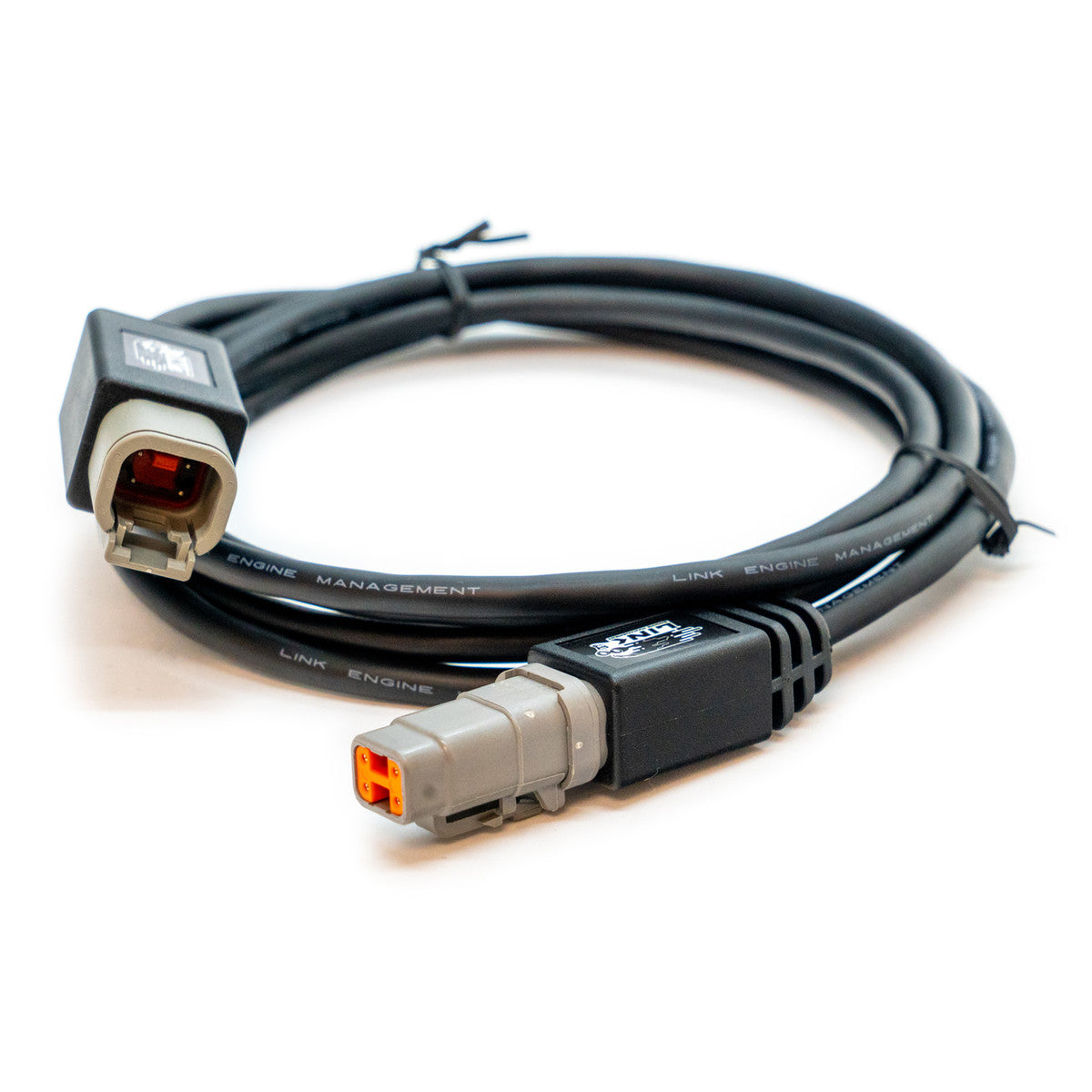

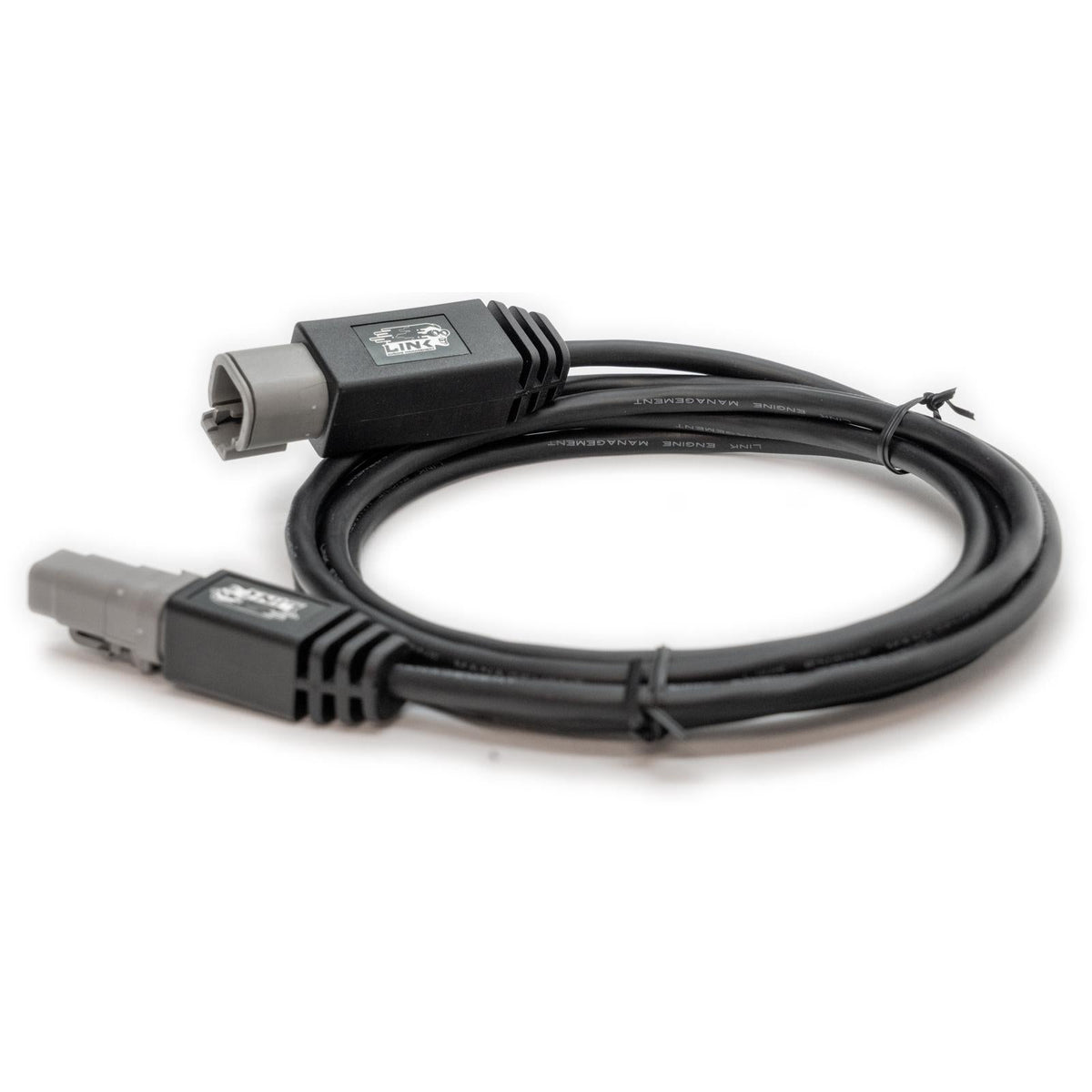

Link CANEXT CAN Extension Cable 2m - 101-0214

A 2 m DTM4 extension that adds reach between your ECU's CAN cable and a CAN splitter or CAN device, carrying both CAN and power.

Suits: Link CAN connection cables (CANJST, CANJST4, CANLTW, CANSS, G5 CAN cable) and Link CAN devices with DTM4 plugs.

Includes: DTM4 to DTM4 extension cable.

Specifications

• Connector: DTM4 female to DTM4 male, CAN and power wiring
• Pinout: pin 1 12 V, pin 2 ground, pin 3 CAN Low, pin 4 CAN High
• Length: 2 m
• Maximum input voltage 300 V, maximum continuous current 3 A, 20 AWG / 0.5 mm² wire
• Dimensions: 2170 x 20 x 15 mm (85.43 x 0.79 x 0.59 in)
• Weight: 165 g (5.82 oz)

Notes

• Link recommends installation and setup by an official Link dealer.

You may also need

A CANTEE splitter (101-0212) to connect more than one CAN device.
