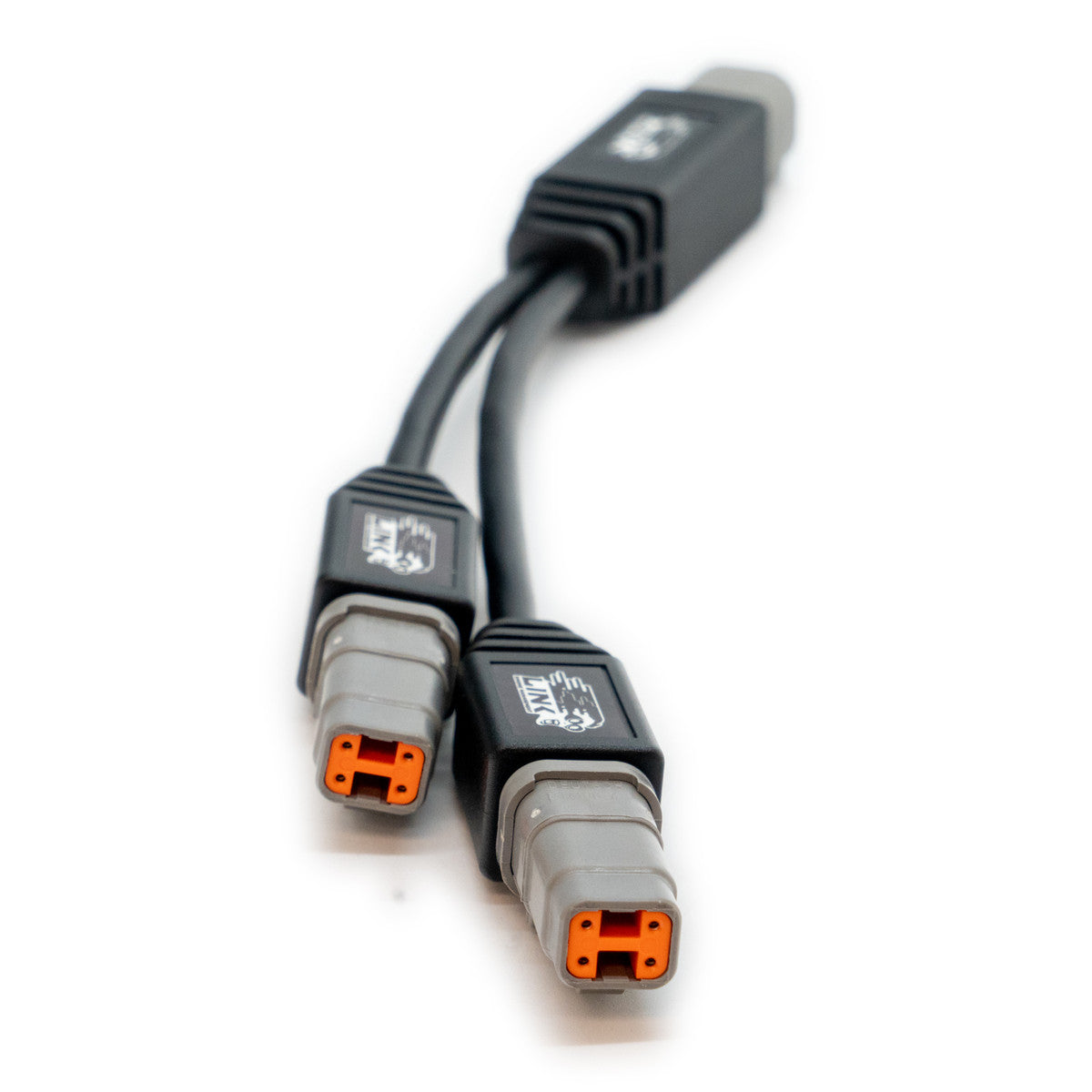

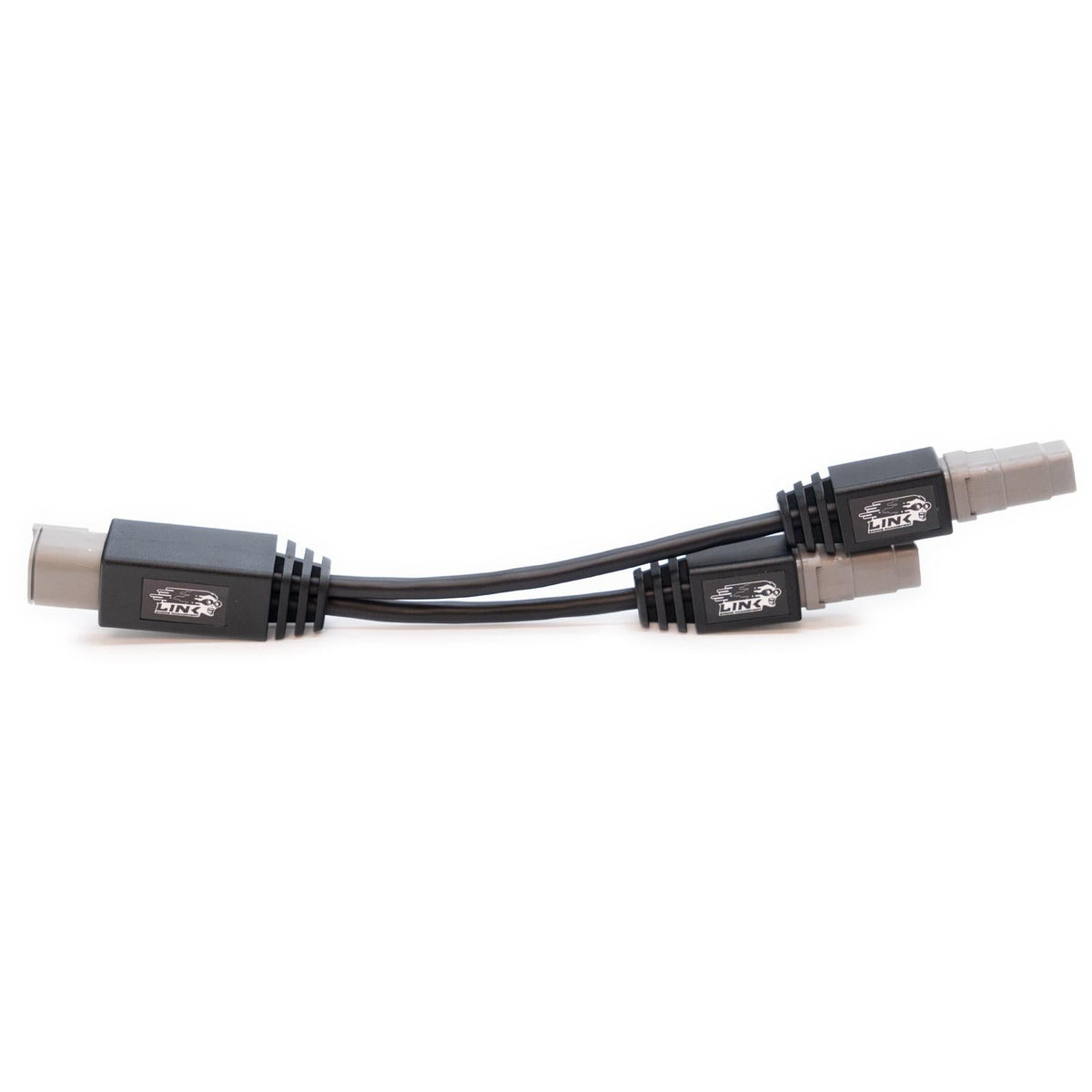

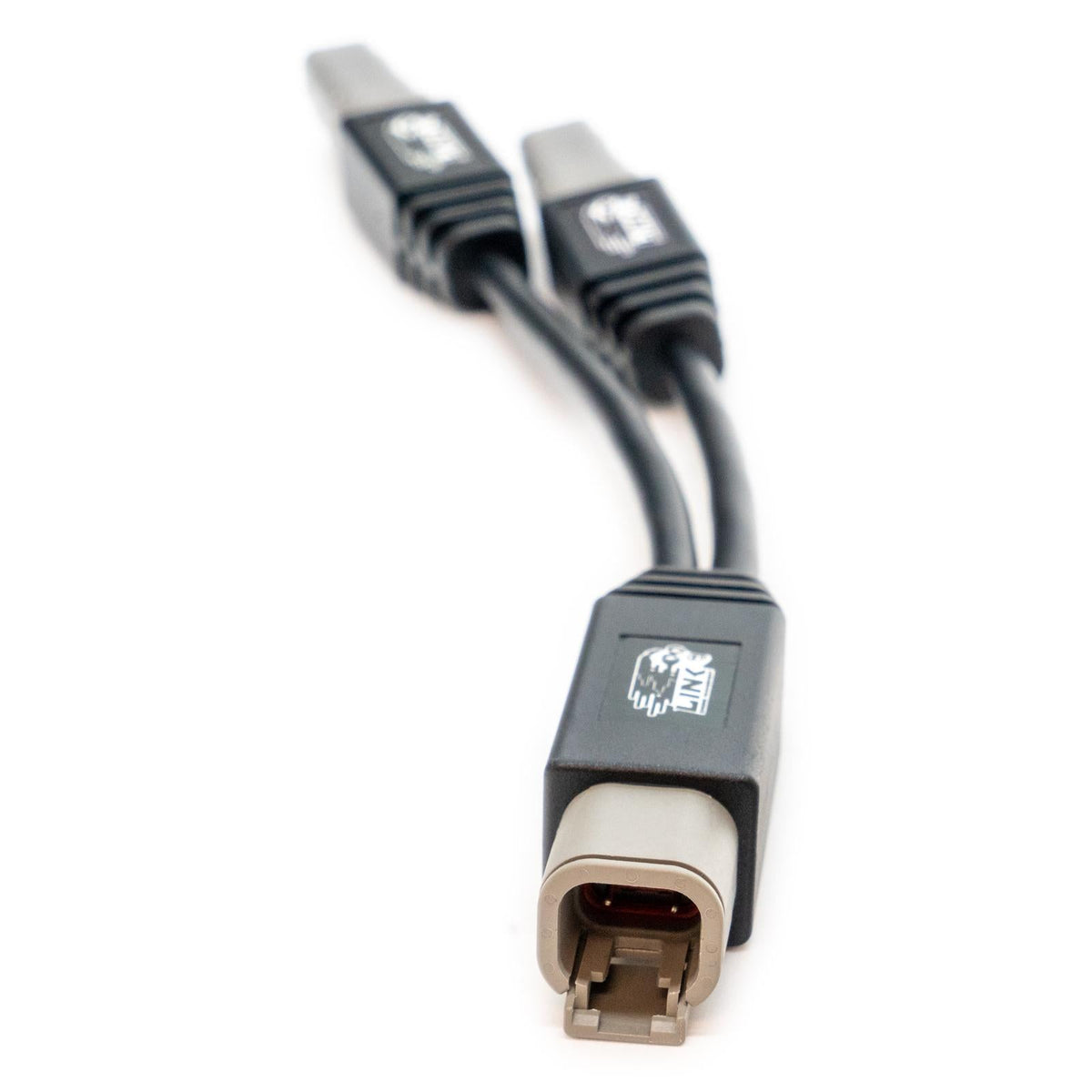

Link CANTEE CAN Splitter Cable - 101-0212

Splits one Link CAN connection into two, so additional CAN devices can be added. Plug it into a CANJST, CANLTW or CANSS cable and connect two devices; CAN and power are carried through.

Suits: Link CANJST (101-0197), CANLTW (101-0211), CANSS (101-0210) and other DTM4 Link CAN cables.

Includes: Link CAN splitter cable.

Specifications

• Connector: DTM4 female to 2 x DTM4 male, CAN and power wiring
• Pinout: pin 1 12 V, pin 2 ground, pin 3 CAN Low, pin 4 CAN High
• Loom lengths: 80 mm and 120 mm
• Maximum input voltage 300 V, maximum continuous current 3 A, 20 AWG / 0.5 mm² wire
• Dimensions: 280 x 34 x 23 mm (11.02 x 1.34 x 0.91 in)
• Weight: 200 g (7.05 oz)

Notes

• Link recommends installation and setup by an official Link dealer.

You may also need

A CAN connection cable for your ECU: CANJST (101-0197), CANLTW (101-0211) or CANSS (101-0210).
