Link Coolant Temperature Sensor (NTC1-8) - 101-0076

Link Coolant Temperature Sensor (NTC1-8) - 101-0076

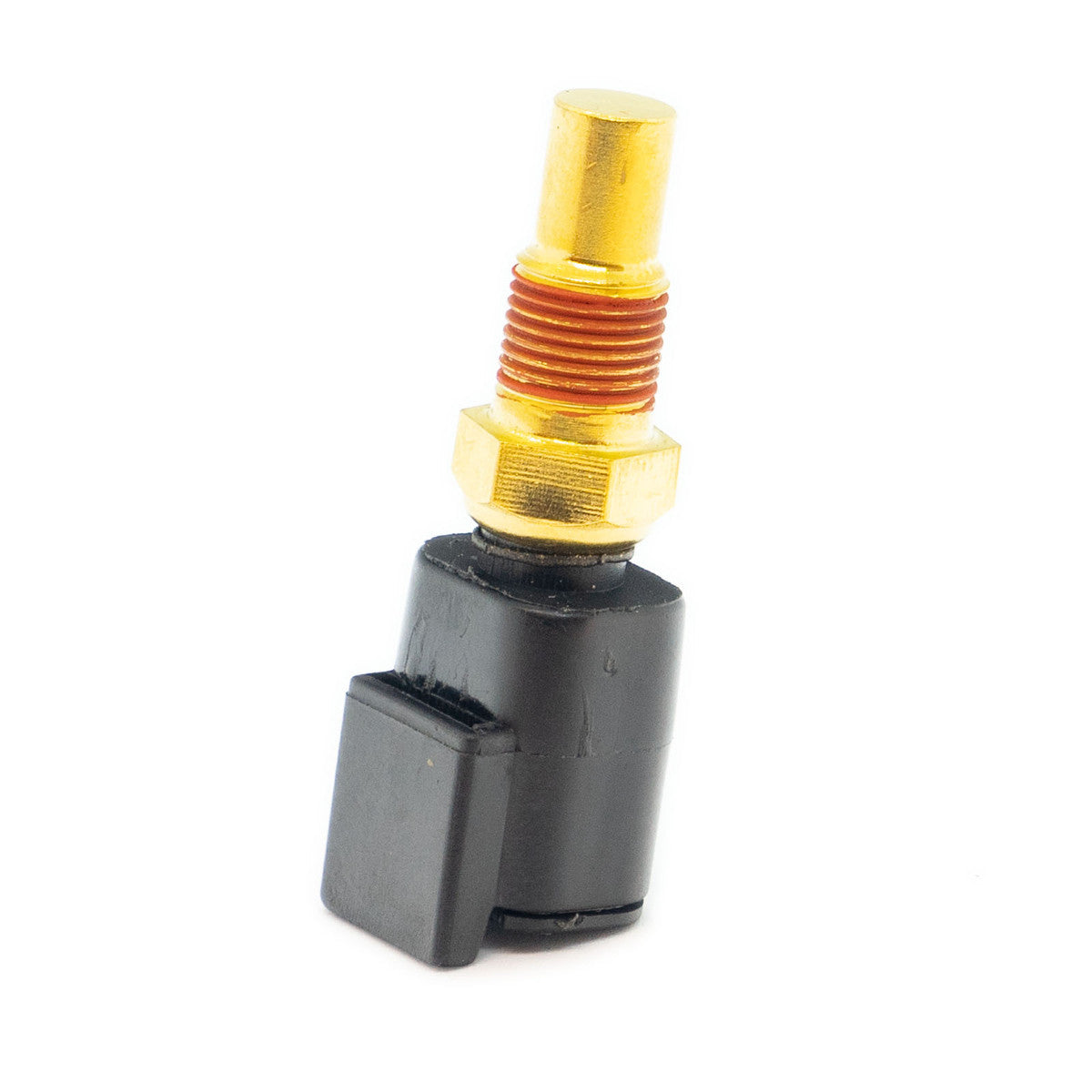

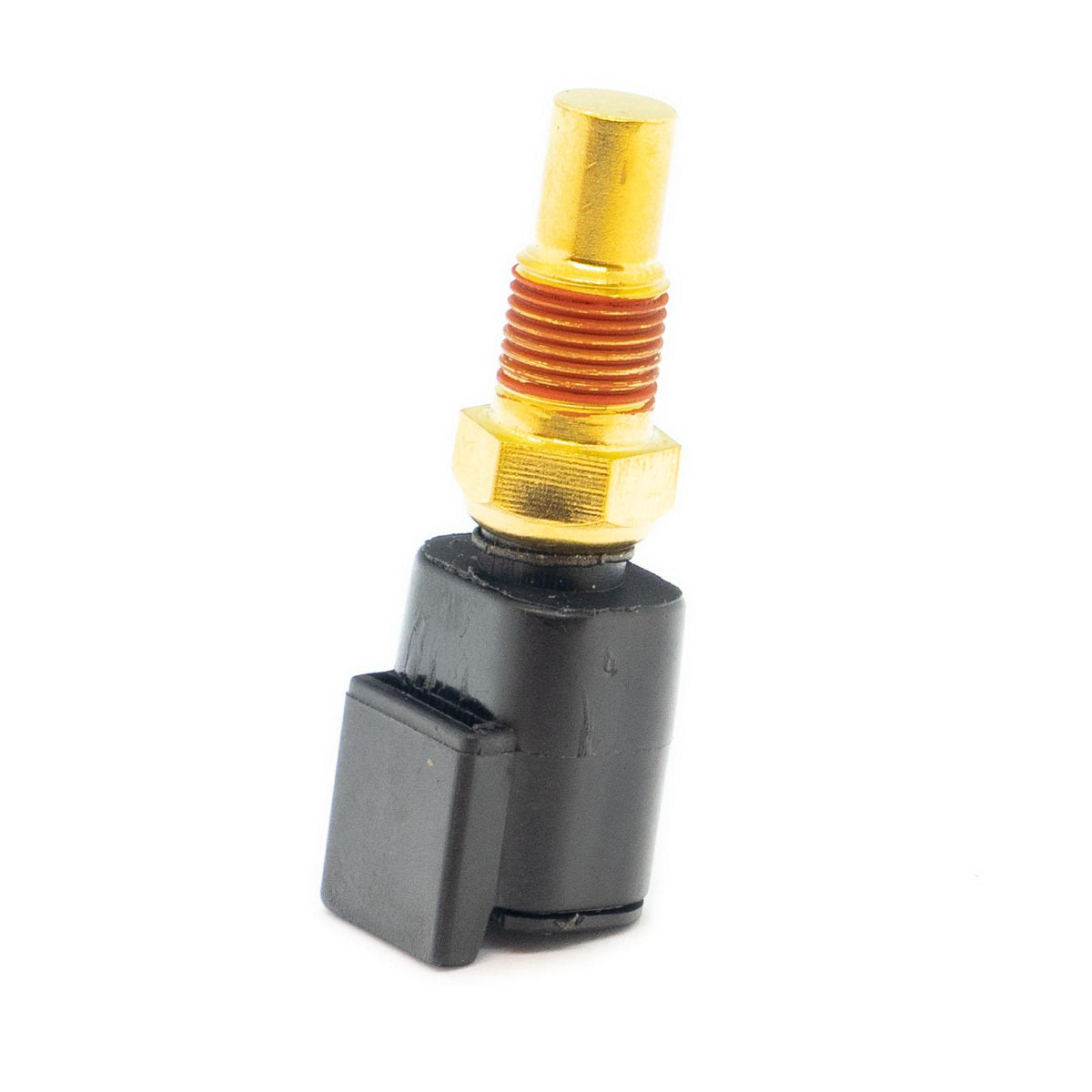

A compact NTC thermistor with a 1/8" NPT thread for measuring coolant, engine oil, transmission oil, fuel and other compatible fluids. Link's proven calibration gives reliable data for engine management, logging and protection strategies.

Suits: All Link ECUs, plus other aftermarket ECUs that support NTC temperature sensors.

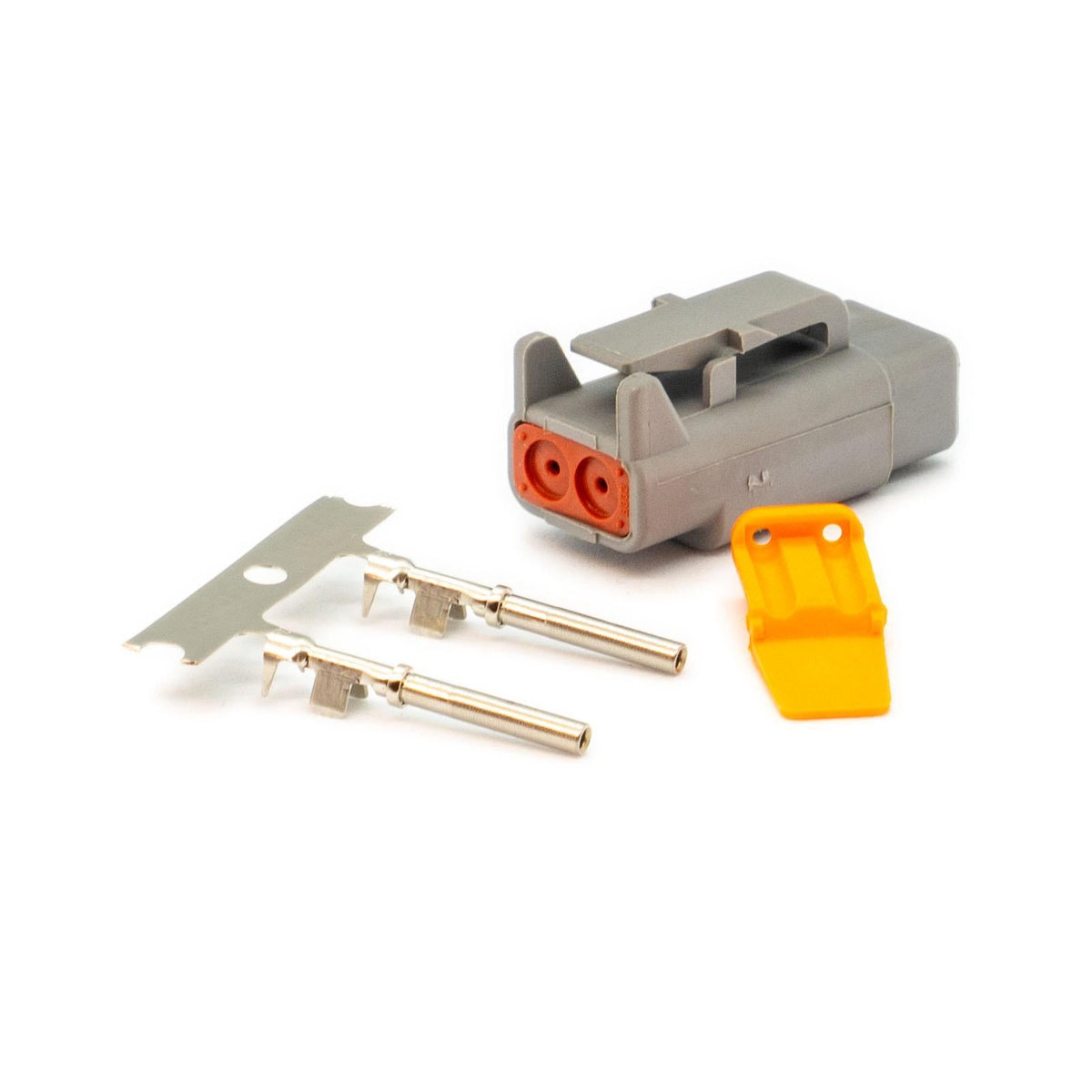

Includes: Temperature sensor (1/8" NPT), Deutsch 2-way connector kit (PKD2F 101-0131).

Specifications

• Two-wire NTC thermistor (signal and sensor ground), compact metal body
• Thread: 1/8" NPT
• Operating voltage: 5 V
• Connector: Deutsch 2-way (PKD2F 101-0131)
• PCLink calibration name: Link NTC1-8 & IAT1-8, or Delphi AC IAT
• Raw calibration: -40°C 65,500 Ω; -30°C 51,791 Ω; -20°C 28,146 Ω; -10°C 15,873 Ω; 0°C 9,256 Ω; 10°C 5,572 Ω; 20°C 3,457 Ω; 30°C 2,205 Ω; 40°C 1,443 Ω; 50°C 965 Ω; 60°C 660 Ω; 70°C 462 Ω; 80°C 329 Ω; 90°C 238 Ω; 100°C 175 Ω; 110°C 131 Ω; 120°C 99 Ω; 130°C 76 Ω; 140°C 59 Ω; 150°C 47 Ω
• Dimensions: 55 x 15 x 20 mm (2.17 x 0.59 x 0.79 in)
• Weight: 5 g (0.18 oz)

Notes

• Weld-in mounting bosses are available in aluminium and steel.
• Link recommends installation and setup by an official Link dealer.

You may also need

A weld-in boss: aluminium IAT1-8MA (101-0046) or steel IAT1-8MS (101-0047).

Downloads

• NTC1-8 Temperature Sensor User Manual (PDF)
