Link Mounting Boss (IAT1-8MA) - 101-0046

Link Mounting Boss Aluminium (IAT1-8MA) - 101-0046

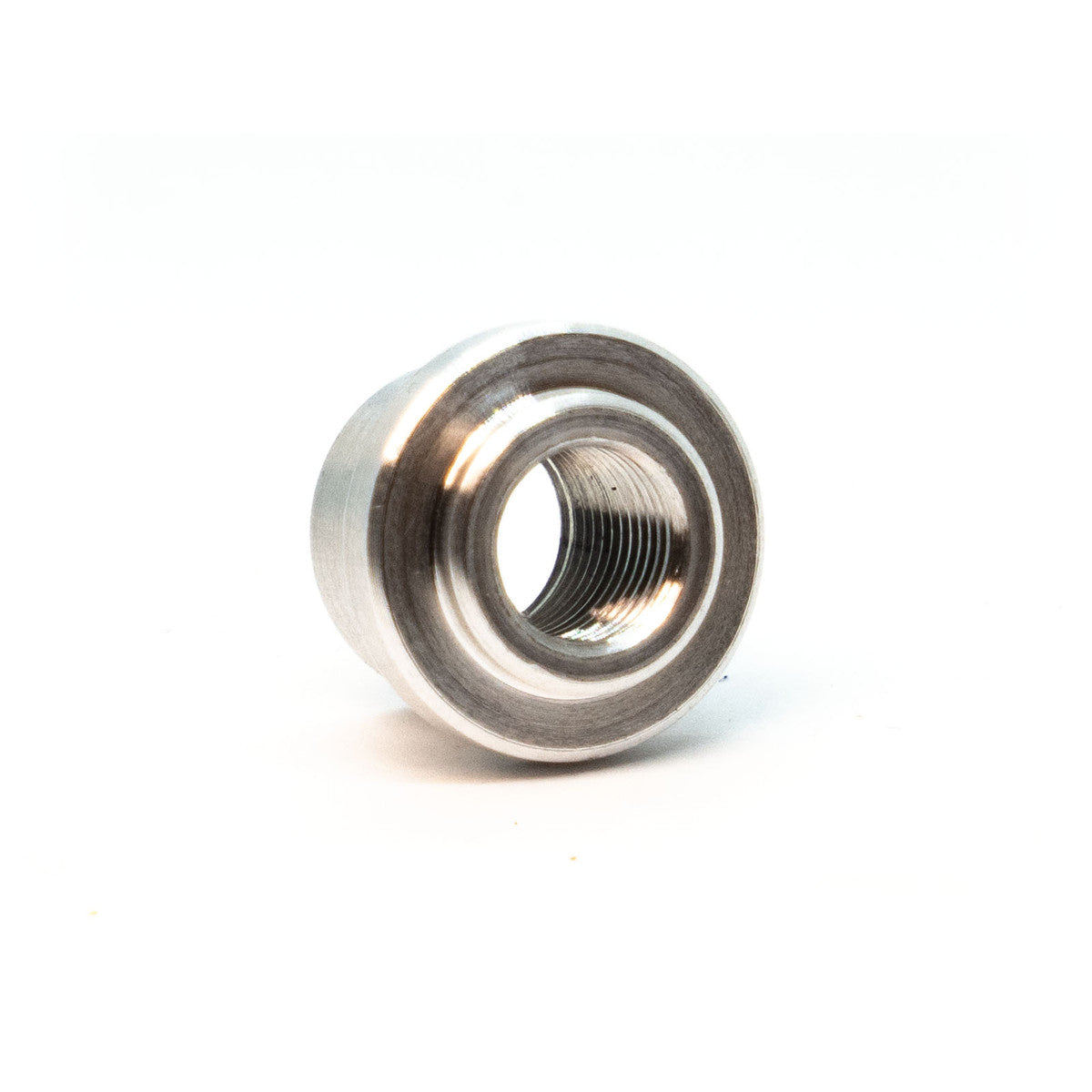

A weld-in aluminium boss with a 1/8" NPT female thread, giving temperature sensors a durable threaded mounting point in aluminium intercooler piping, intake manifolds, coolant pipes and other fabricated parts. Made in New Zealand.

Suits: Link IAT1-8 Air Temp Sensor (101-0045), Link NTC1-8 Coolant Temperature Sensor (101-0076) and other 1/8" NPT sensors, in aluminium components.

Includes: Aluminium mounting boss.

Specifications

• Material: aluminium (weld-in)
• Thread: 1/8" NPT female
• Dimensions: 20 x 20 x 15 mm (0.79 x 0.79 x 0.59 in)
• Weight: 5 g (0.18 oz)

Notes

• For welding into aluminium components only.
• Correct sensor placement is important for accurate temperature readings.

You may also need

A Link IAT1-8 Air Temp Sensor (101-0045) or NTC1-8 Coolant Temperature Sensor (101-0076). For steel parts, use the IAT1-8MS boss (101-0047).
