Link Electronic Throttle Body Kit - 54mm (ETB54) - 101-0191

Link Electronic Throttle Body Kit - 54mm (ETB54) - 101-0191

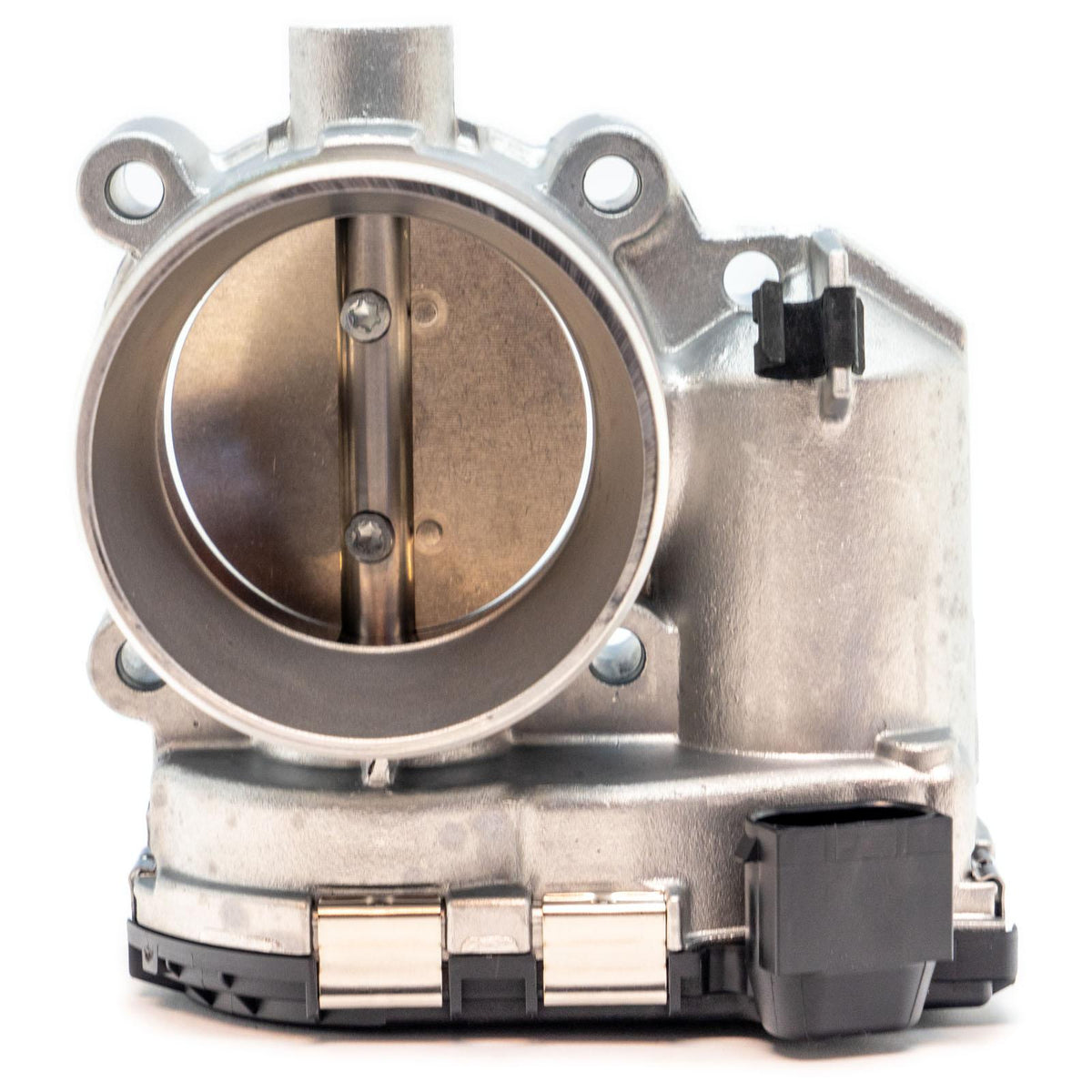

A Bosch 54 mm electronic throttle body kit for motorsport and performance builds. The integrated actuator and dual throttle position sensors give precise, redundant drive-by-wire control when paired with a compatible Link ECU, and the inlet flange is grooved for an O-ring seal.

Suits: Link ECUs with built-in e-throttle, or ECUs using Link's external E-Throttle Remote Controller (115-1000). Pair with an electronic accelerator pedal such as Link 101-0188.

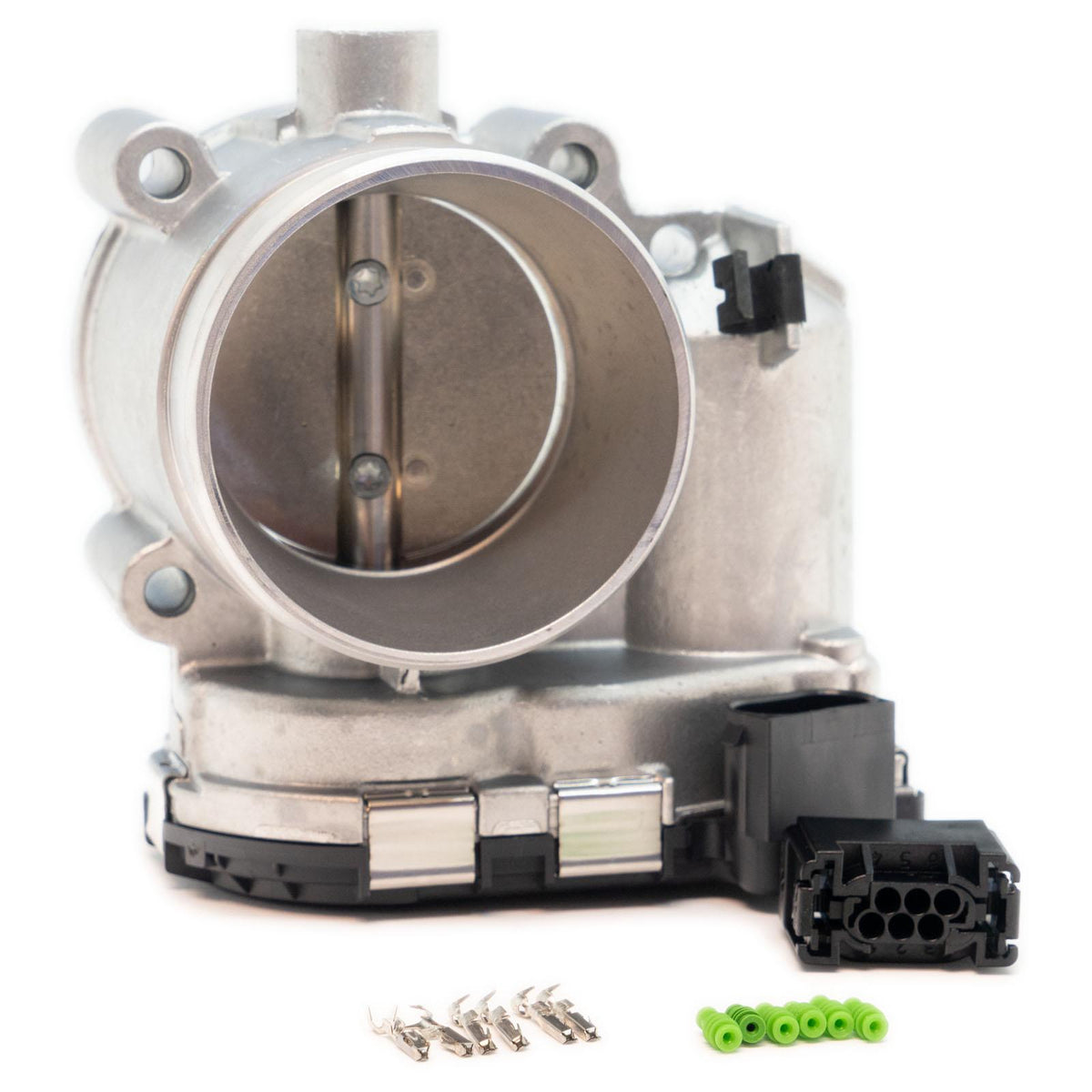

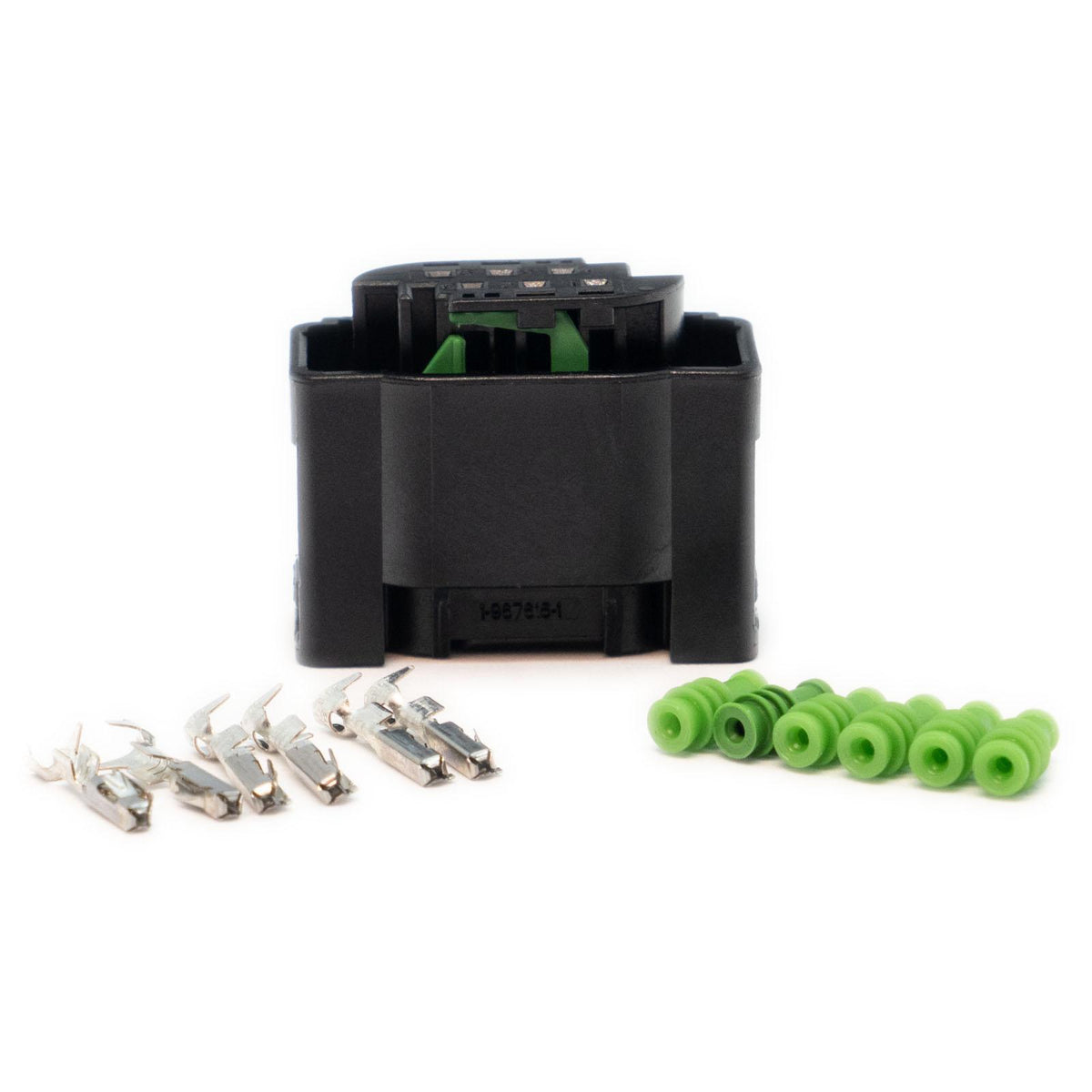

Includes: Bosch electronic throttle body (54 mm bore), Bosch 6-pin AMP mating connector, printed accessory instructions.

Specifications

• Bore: 54 mm
• Throttle position sensing: dual potentiometers, 0-5 V output
• Connector: AMP 6-pin
• Operating voltage: 6-16 V; maximum input voltage 16 V; maximum continuous current draw 10 A

Notes

• E-throttle setup details are in the PCLink help file. Link recommends installation and setup by an official Link dealer.

You may also need

An accelerator pedal such as the Link E-Throttle Pedal Module (101-0188), and for ECUs without onboard e-throttle the E-Throttle Remote Controller RET (115-1000).

Downloads

• ETB54 Technical Specification Sheet (image)
