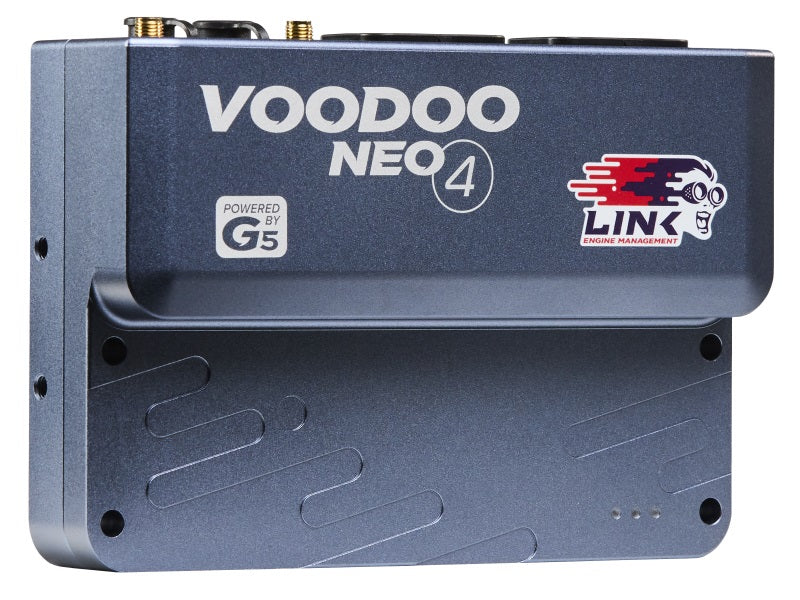

Link G5 Voodoo Neo 4 - 154-5000

Details

Built on Link's most advanced, most powerful and most flexible ECU platform ever, the G5 Voodoo Neo 4 delivers next-generation engine management for up to 6 cylinder sequential or 4 cylinder staged sequential builds.

The G5 Voodoo range puts real magic in your hands and opens a new world of possibilities with the ability to control port plus direct injection, highly customisable I/O, advanced communications and next-generation features.

G5's multi-board architecture delivers expanded I/O capability over the G4X range through highly customisable ADIO and Aux/Digital Input pins for greater flexibility across high-performance builds.

Advanced communications include GPS, Wi-Fi, Ethernet, dual CAN Bus and USB-C tuning, alongside 1GB of internal data logging for high-speed data capture and analysis. The G5 Voodoo Neo 4 also features automatic transmission control, onboard Lambda control, and dual H-bridges for E-Throttle and low power E-Wastegate control.

The G5 Voodoo Neo 4 is ideal for modern high-performance 4 or 6 cylinder builds requiring the next-generation of engine management technology.

Models Supported

The G5 Voodoo Neo 4 can run: 6 cylinders sequential port or direct injection and direct spark, or, 4 cylinders with direct/port staged injection, and direct spark.

Features

The G5 Voodoo Neo 4's multi-board architecture delivers next-generation features including:

ECU Features

• Global Positioning System (GPS)
• Dual E-throttle Control
• 8 Custom Math Blocks with 30 characters
• Flex Fuel
• Trigger Oscilloscope
• 3 Axis Accelerometer
• 1k or 10k ohm Selectable Temp Input Pullups
• Flexible engine protection limiters
• CAN Keypad Control
• VVT Control
• Open Loop Boost Control
• Closed Loop Boost Control
• Onboard Digital Wideband Lambda Control
• Dual Closed Loop Lambda
• Direct Automatic Transmission Control
• 1 Gigabyte of Internal Data Logging

Motorsport Features

• Nitrous Control
• Launch Control
• Anti-lag
• Cruise Control
• Traction Control
• Race Timer and Power Management
• Gear Shift Control
• Paddle Shift Control

Specifications

• Outputs: 8 Injection Drives, Injection Drives can run Direct Injection via a driver box, 6 Ignition Drives, 12 Auxiliary Outputs, +5V Sensor power supply, Unused Injection and Ignition drives can be used as an Auxiliary Outputs. Note: 4 pins are multi-purpose Aux or Digital Input pins. Each pin can be either Aux or Digital Input, not both at the same time.
• Inputs: 10+ Digital Inputs, 4 Temperature Inputs, 3 Analogue Inputs, 2 Trigger Inputs, 2 Knock Inputs, Unused Temperature and Analogue Inputs can be used as Digital Inputs. Note: 4 pins are multi-purpose Injection, Aux or Digital Input pins. Each pin can be either Injection, Aux, or Digital Input, not all at the same time.
• Inputs / Outputs: 6 ADIO Dual Purpose
• Communications: 2 CAN Bus Channels, 1 Wi-Fi USB-C Tuning Connection, 1 Ethernet, 1 Power Over USB
• Data Logging: 1GB Onboard Logging Memory, 100kHz Maximum Total Logging Rate, 250 Logging Channels
• Product Dimensions: 107mm(L) x 158mm(W) x 45mm(H), 4.21in(L) x 6.22in(W) x 1.77in(H)
• Product Weight: 730 grams (25.75 ounces)
• Material: 6061-T6 billet CNC sealed enclosure
• Electrical: Operating Voltage Range: 6-30V, Maximum Input Voltage: 30V, Maximum Continuous Current Draw: 17A
• What's in the Box: G5 Voodoo Neo 4 ECU, USB-C Connection Cable, Wi-Fi Antenna, 4m GPS Antenna (Magnetic or Adhesive Mount), USB-C and SMA Dust Covers, Quick Start Guide (A5), Installer I/O table (A3), Link stickers
• Connector: Superseal 4 Row 34 Position x2, Part number 4-1437290-0, Part number 4-1437290-1

Manuals & Install Guides

• Neo4 Quick Start Guide
