Link G5 Voodoo Neo 4 + DI Driver 4 Bundle - 154-9000B

Link G5 Voodoo Neo 4 + DI Driver-4 Bundle - 154-9000B

A complete direct injection package for compact builds: the G5 Voodoo Neo 4 ECU with a DI Driver-4 direct injection controller. The Neo 4 supports up to 6 cylinder sequential or 4 cylinder staged sequential builds, and the DI Driver-4 drives up to 4 direct injectors and one high-pressure fuel pump.

Suits: 4-cylinder direct injection engines, or 6-cylinder port injection engines with direct spark.

Includes: 1 x Link G5 Voodoo Neo 4 ECU (154-5000), 1 x Link DI Driver-4 (144-5000).

Specifications

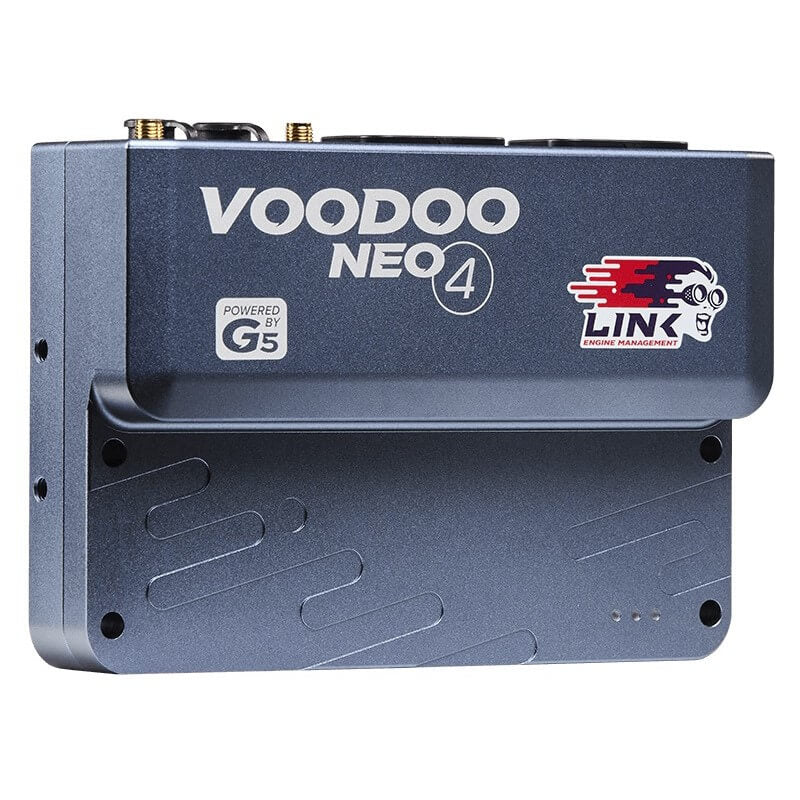

• G5 Voodoo Neo 4: USB-C, Wi-Fi, Ethernet, GPS and CAN; 1 GB onboard logging; built-in wideband controller and dual e-throttle outputs

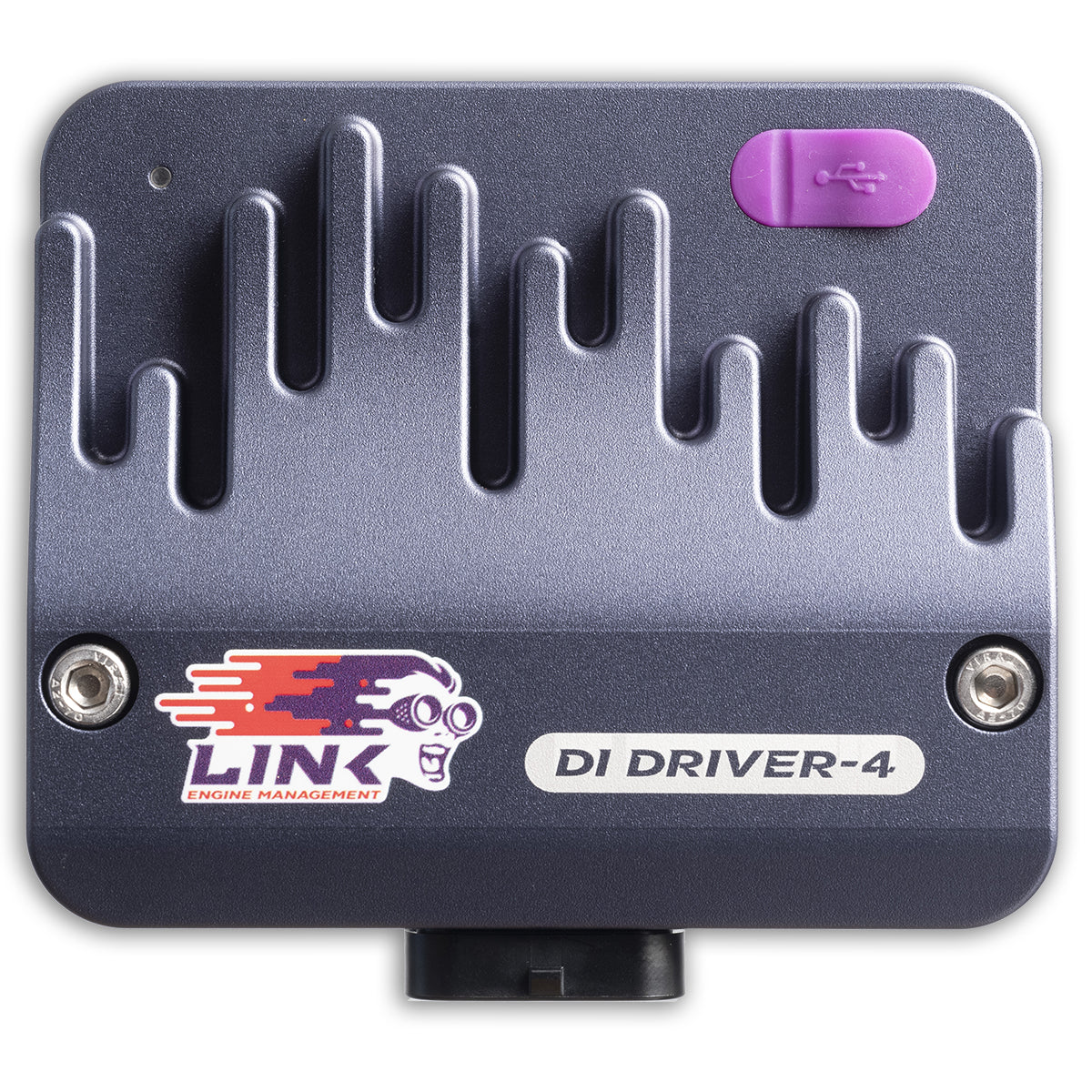

• DI Driver-4: up to 4 DI injectors and 1 high-pressure pump; sealed CNC enclosure; CAN and USB configuration
• See each component listing for full specifications.

Downloads

• G5 Voodoo Neo 4 Quick Start Guide (PDF)
• G5 Voodoo Neo 4 Pinout (PDF)
• DI Driver-4 Quick Start Guide (PDF)
