Link G5 Voodoo Neo 6 + DI Driver 4 Bundle - 156-9000B

Link G5 Voodoo Neo 6 + DI Driver-4 Bundle - 156-9000B

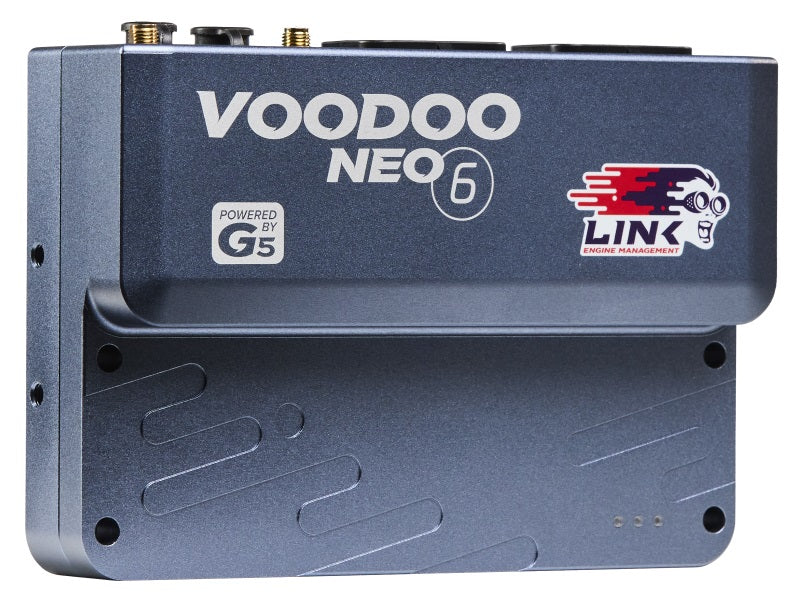

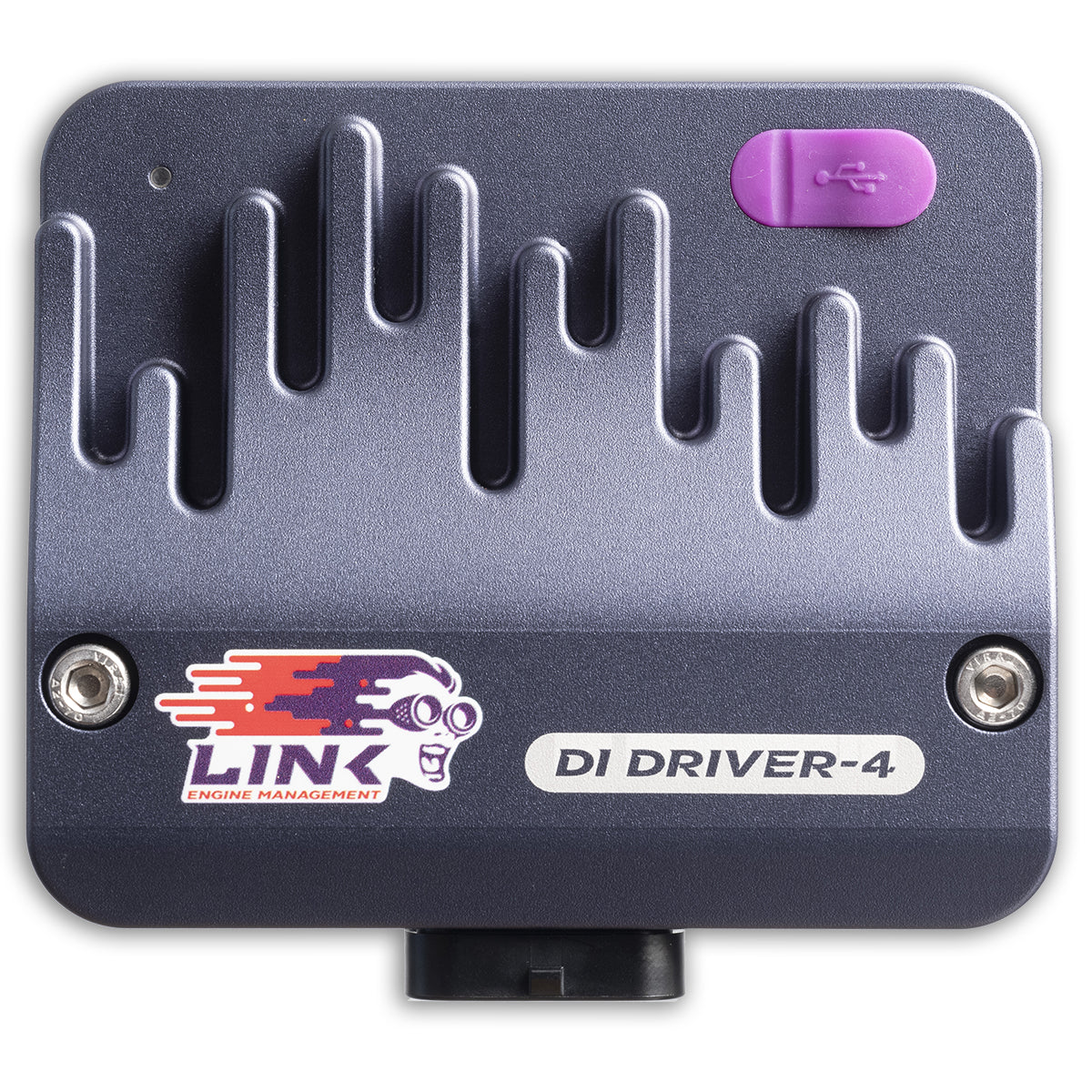

A complete direct injection package: the G5 Voodoo Neo 6 ECU with a DI Driver-4 direct injection controller. The Neo 6 supports up to 8 cylinder sequential or 6 cylinder staged sequential builds, and the DI Driver-4 drives up to 4 direct injectors and one high-pressure fuel pump, stackable over CAN for larger setups.

Suits: Direct injection or combined port and direct injection engines, typically up to 4 DI cylinders with this bundle.

Includes: 1 x Link G5 Voodoo Neo 6 ECU (156-5000), 1 x Link DI Driver-4 (144-5000).

Specifications

• G5 Voodoo Neo 6: USB-C with power-over-USB, Wi-Fi, Ethernet, GPS and CAN; 1 GB onboard logging; built-in wideband controller and dual e-throttle outputs
• DI Driver-4: up to 4 DI injectors and 1 high-pressure pump; sealed CNC enclosure; CAN and USB configuration
• See each component listing for full specifications.

Downloads

• G5 Voodoo Neo 6 Quick Start Guide (PDF)
• G5 Voodoo Neo 6 Pinout (PDF)
• DI Driver-4 Quick Start Guide (PDF)
