Link JZX90Link - JZX90X - 235-4000

Link JZX90X Plug-In ECU (Toyota JZX90 1JZ-GTE) - 235-4000

The JZX90X is a G4X plug-in ECU for X90-chassis Toyotas with the non-VVT-i 1JZ-GTE. It installs in the factory ECU location on the stock mounts, loom and connectors with no rewiring or adapter looms, keeps the factory functions and comes with a startup map.

It has a built-in MAP sensor and the full G4X platform, including motorsport functions such as nitrous, launch control, anti-lag, cruise control, traction control, race timer/power management, gear shift and paddle shift control.

Suits: Toyota Chaser X90, Mark II X90 and Cresta X90 with 1JZ-GTE non-VVT-i; Toyota Soarer JZZ30 with 1JZ-GTE non-VVT-i. Manual transmission.

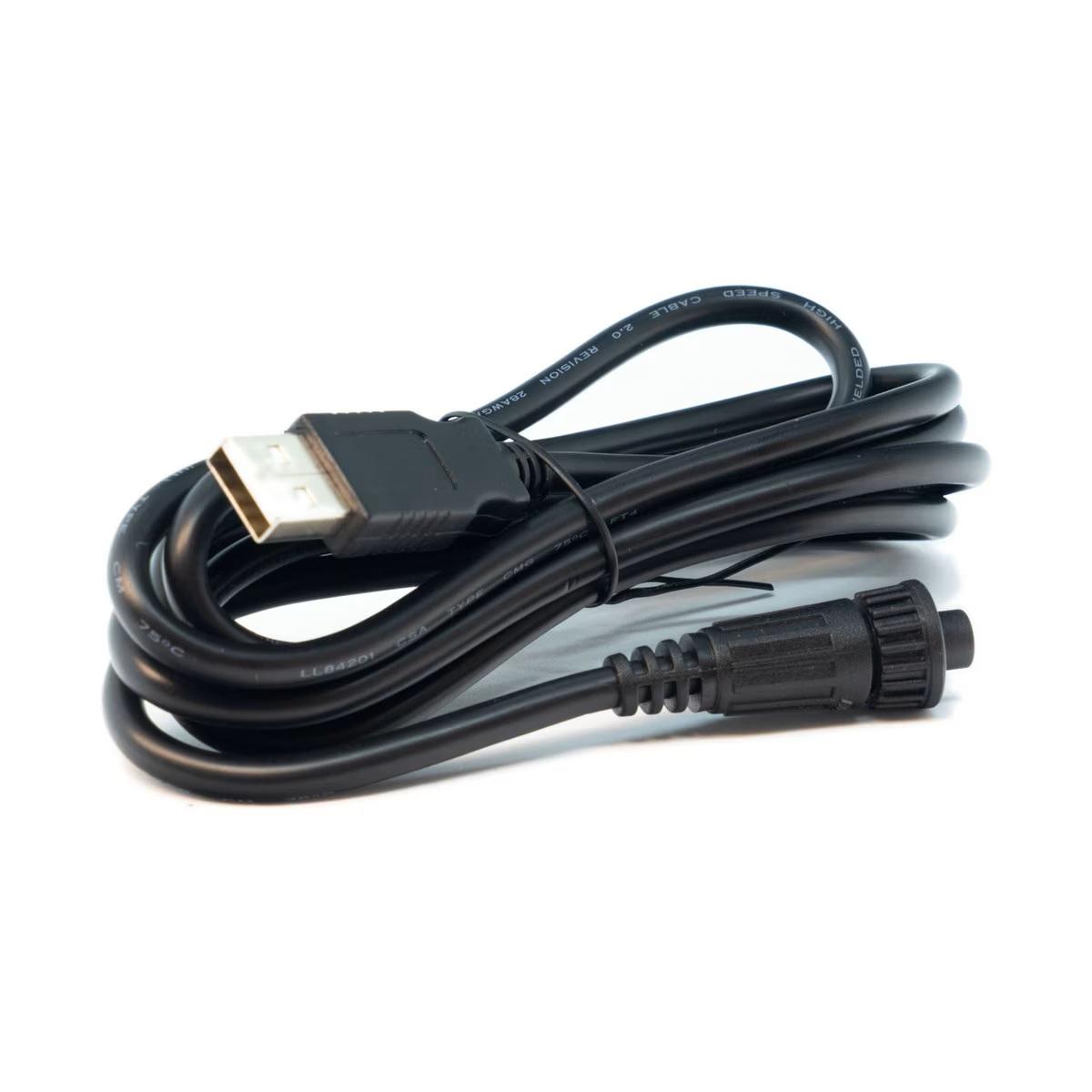

Includes: G4X JZX90X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• CAN connector: 4-pin powered port with protected 12 V supply and ground, self-resetting fuse rated 3 A continuous
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 8.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the JZX90X installation manual

Notes

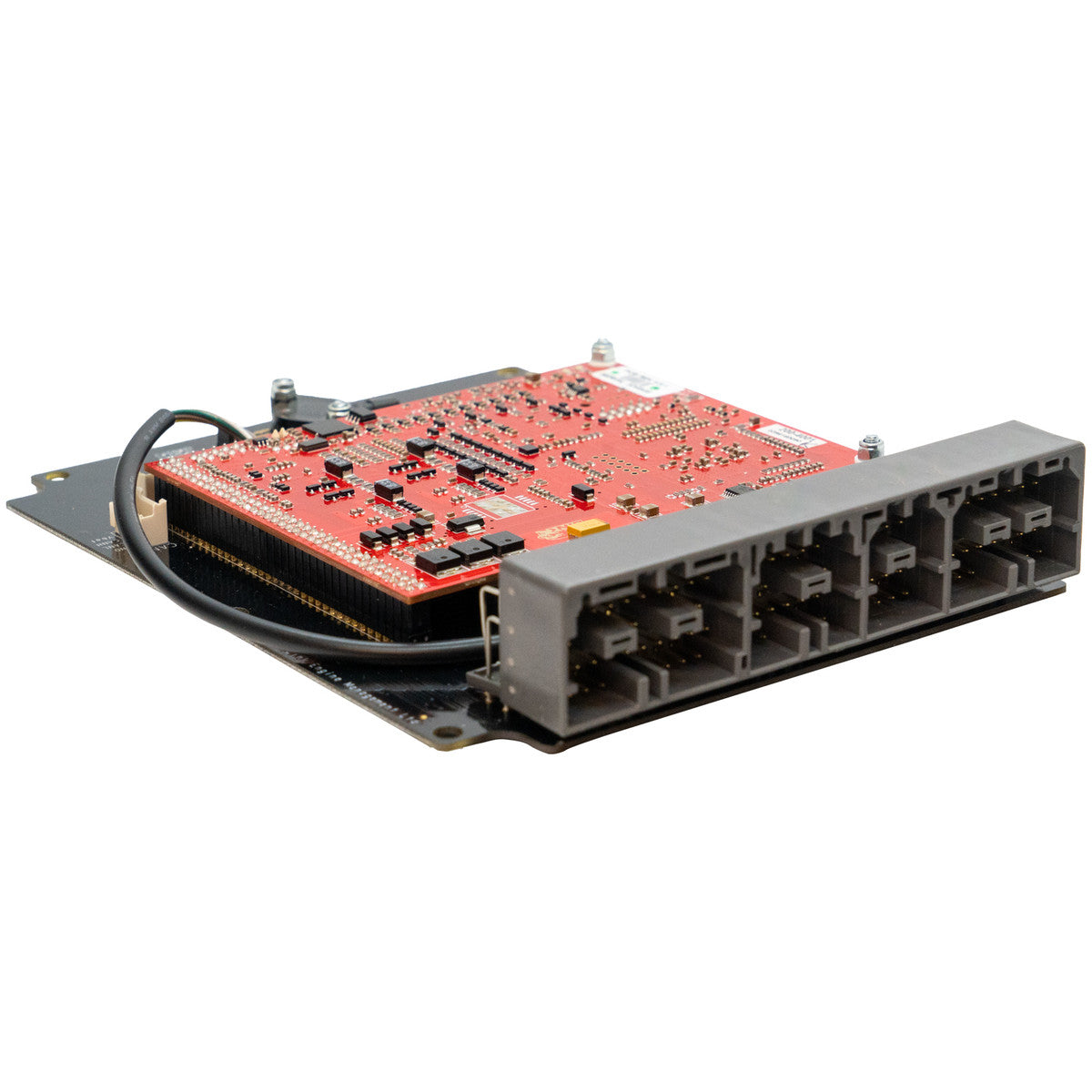

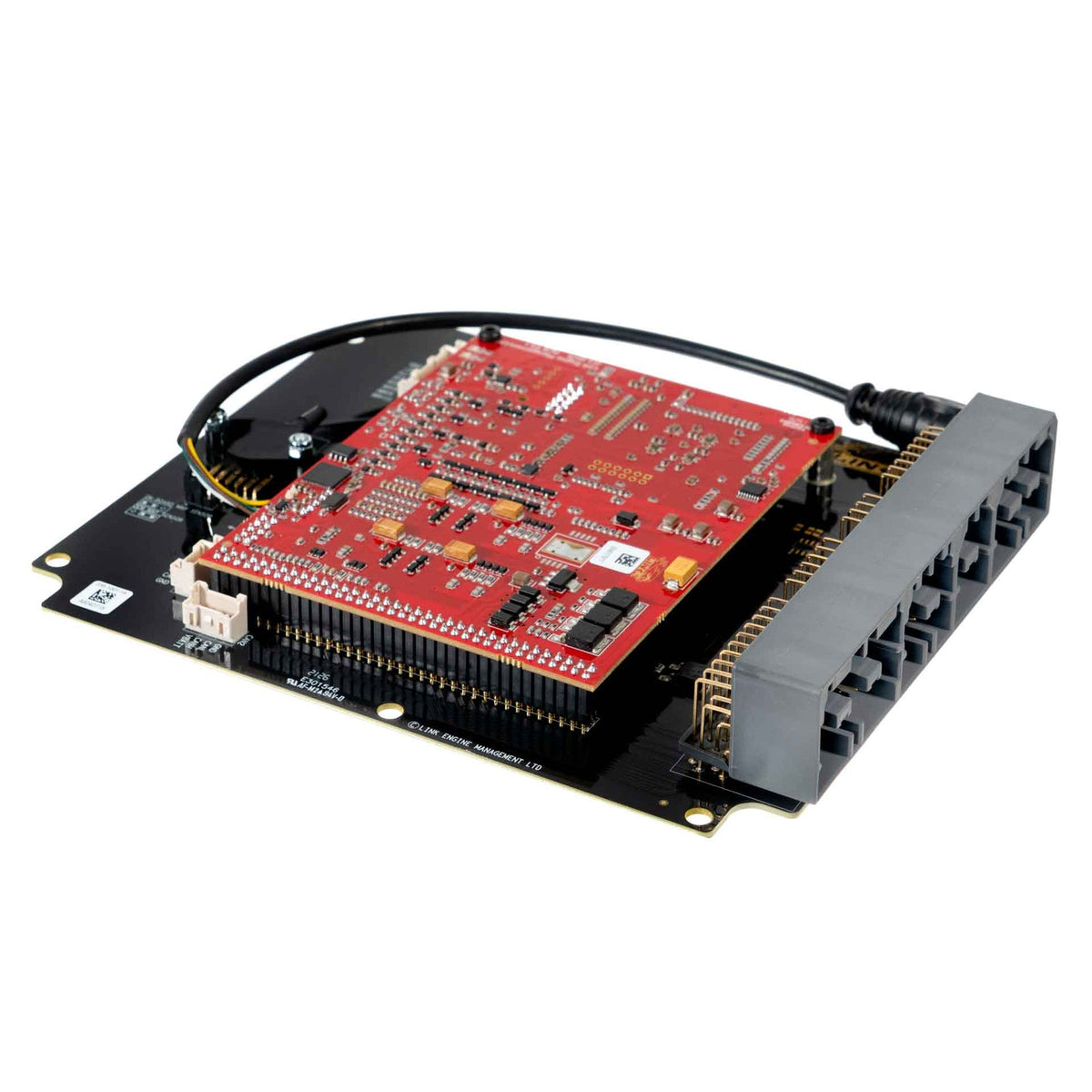

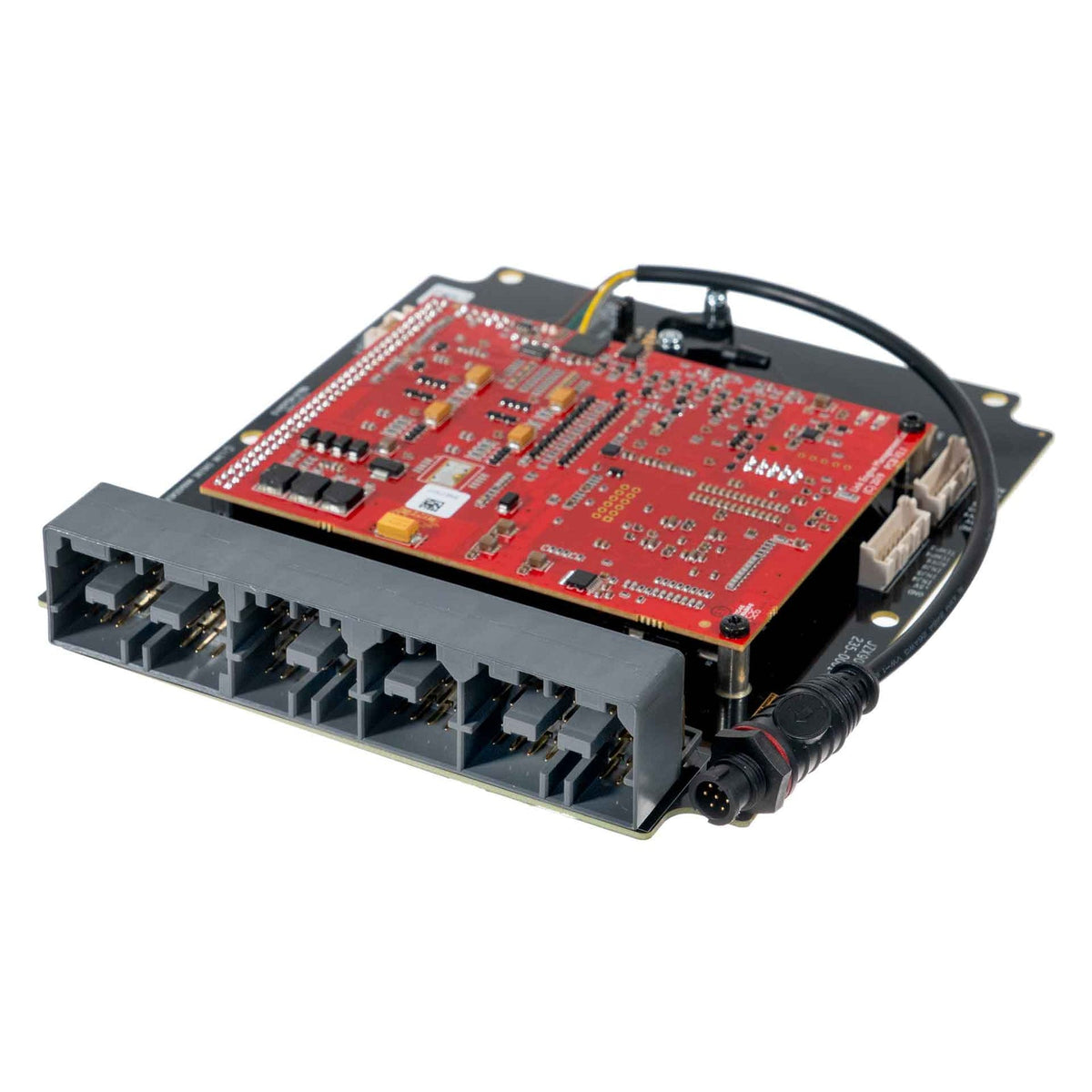

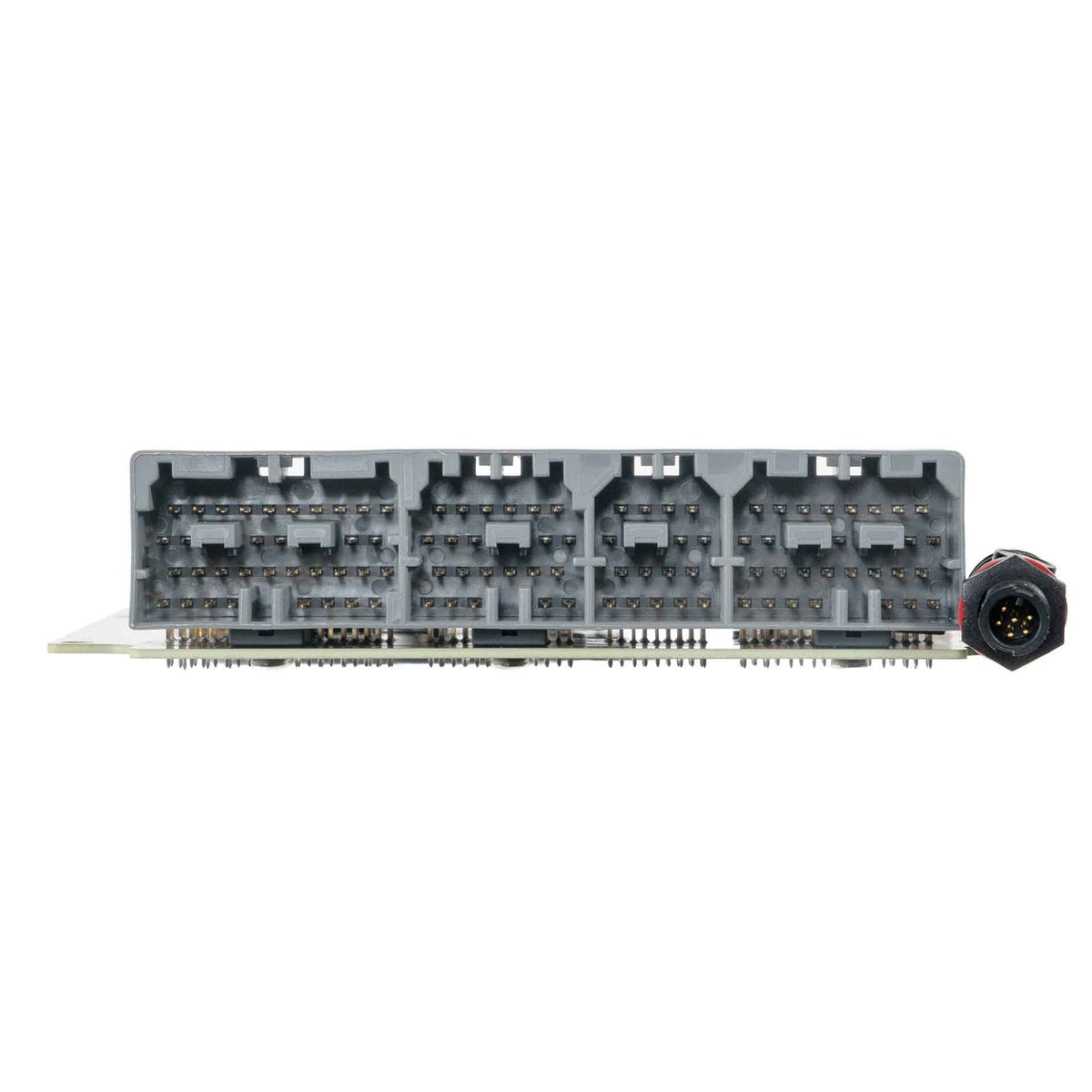

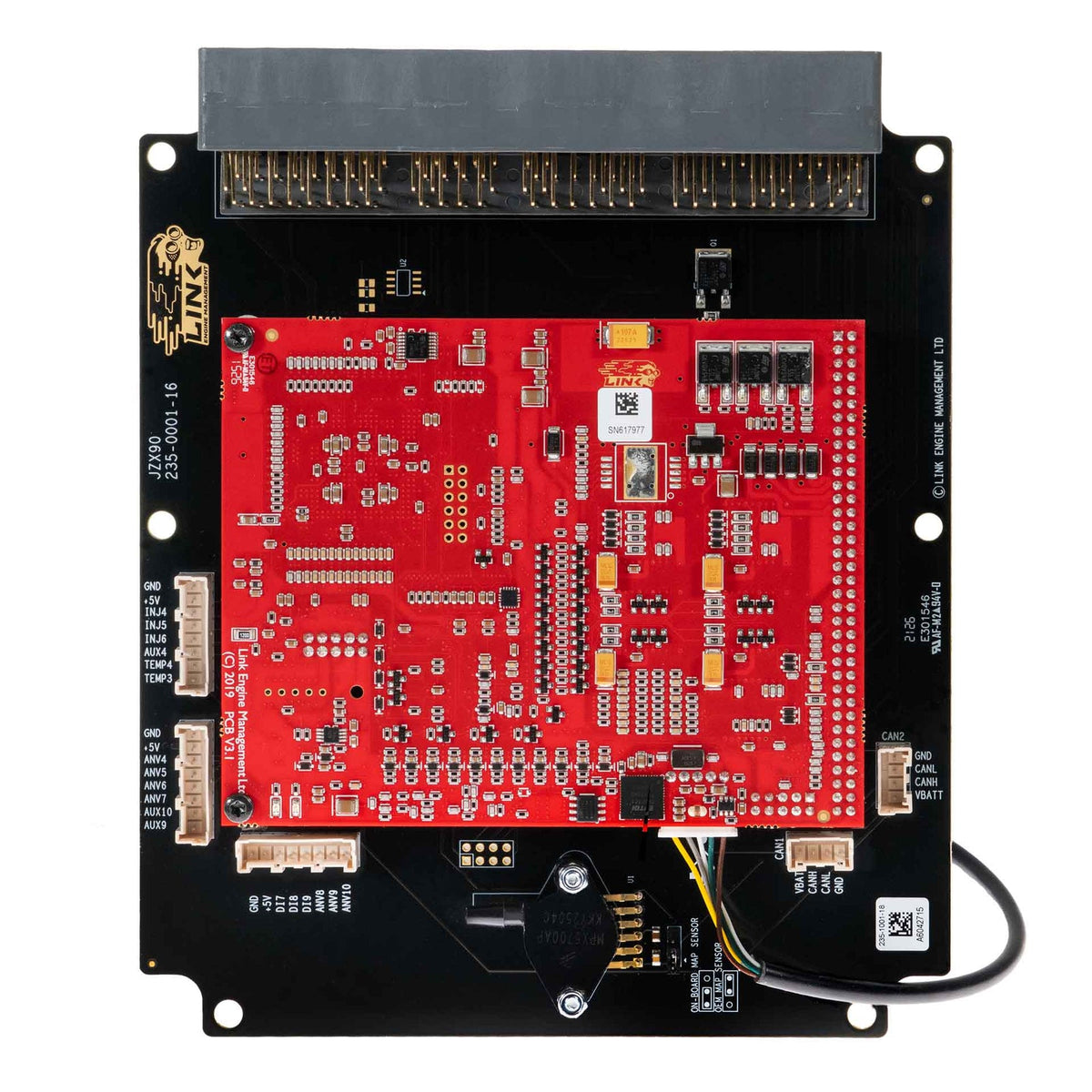

• Check that your connector matches the header shown in the photos before ordering.
• An expansion connector is required before e-throttle can be used.
• The older CANPCB cable cannot be used; connect CAN devices with the CANJST4 cable (101-0198).
• Automatic models: ask us about Direct Automatic Transmission Control.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

To connect CAN devices, a CANJST4 CAN cable (101-0198).

Downloads

• JZX90X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
