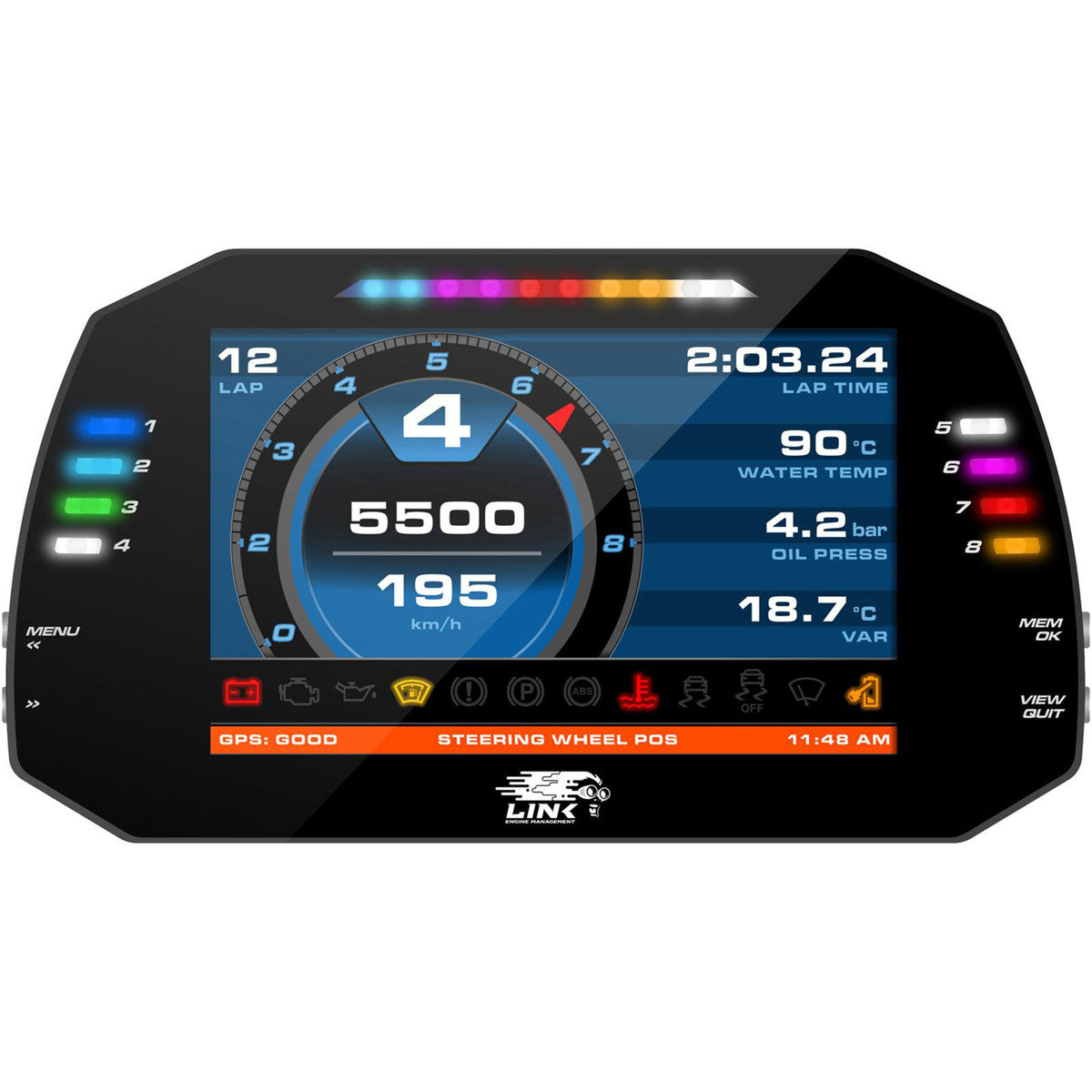

Link MXG Strada 7" Dash - Race Edition - 100-0173

Link AiM MXG Strada 7" Dash - Race Edition - 100-0173

The MXG Strada is AiM's 7-inch digital dash, giving more room on screen than the 5-inch MXS. The high-contrast TFT adjusts its brightness automatically, and you get multiple configurable pages, 10 RGB shift lights, warning LEDs and a custom warning screen. It comes pre-loaded to read the Link ECU CAN stream: enable the dash in PCLink and it is ready to go.

The Race Edition's six RGB icons are fully configurable by condition and colour, solid or flashing at an adjustable rate, for high-visibility motorsport warnings. For road cars, see the Street Edition (100-0172) with fixed road icons and speed, odometer and trip functions.

Suits: All Link G4+, G4X and G5 wire-in and plug-in ECUs; also CAN, RS232 and K-Line ECU communications and AiM CAN accessories (GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD).

Includes: MXG Strada 7" Race Edition display, USB cable, 14-pin standard wiring, 23-pin connector and contacts.

Specifications

• Display: 7" TFT, 800 x 480 pixels, 1000:1 contrast, 700 cd/m2 (1,100 lumens)
• Inputs: 8 analogue (up to 1 kHz each), 1 speed input, 1 coil RPM input
• Outputs: 1 digital output (1 A max)
• CAN ports: 3
• Connectors: 2 AMPSEAL (3-row 23-position 770680-1; 3-row 14-position 776273-2) + 1 Binder
• Maximum continuous current draw: 400 mA
• Housing: anodised aluminium with metallic pushbuttons, IP67
• Dimensions: 237 x 127.6 x 26 mm (9.33 x 5.02 x 1.02 in)
• Weight: 950 g (33.51 oz)

Notes

• This is the Race Edition; for road use choose the Street Edition. The Strada is also available as the 5" MXS and 10" MXT.
• Link recommends installation and setup by an official Link dealer.

You may also need

Street version: MXG Strada 7" Street Edition (100-0172). GPS: AiM GPS09 module (100-0170).
