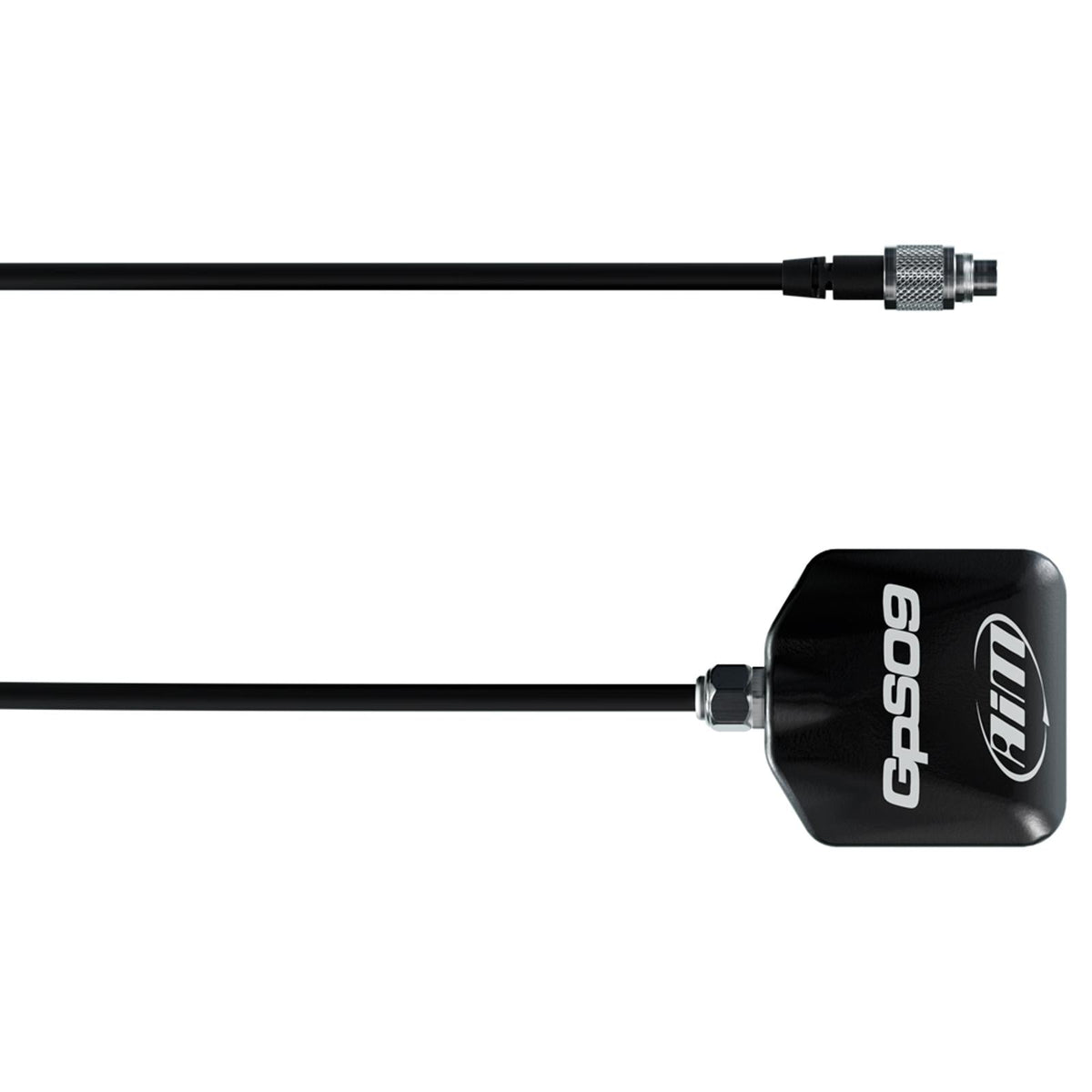

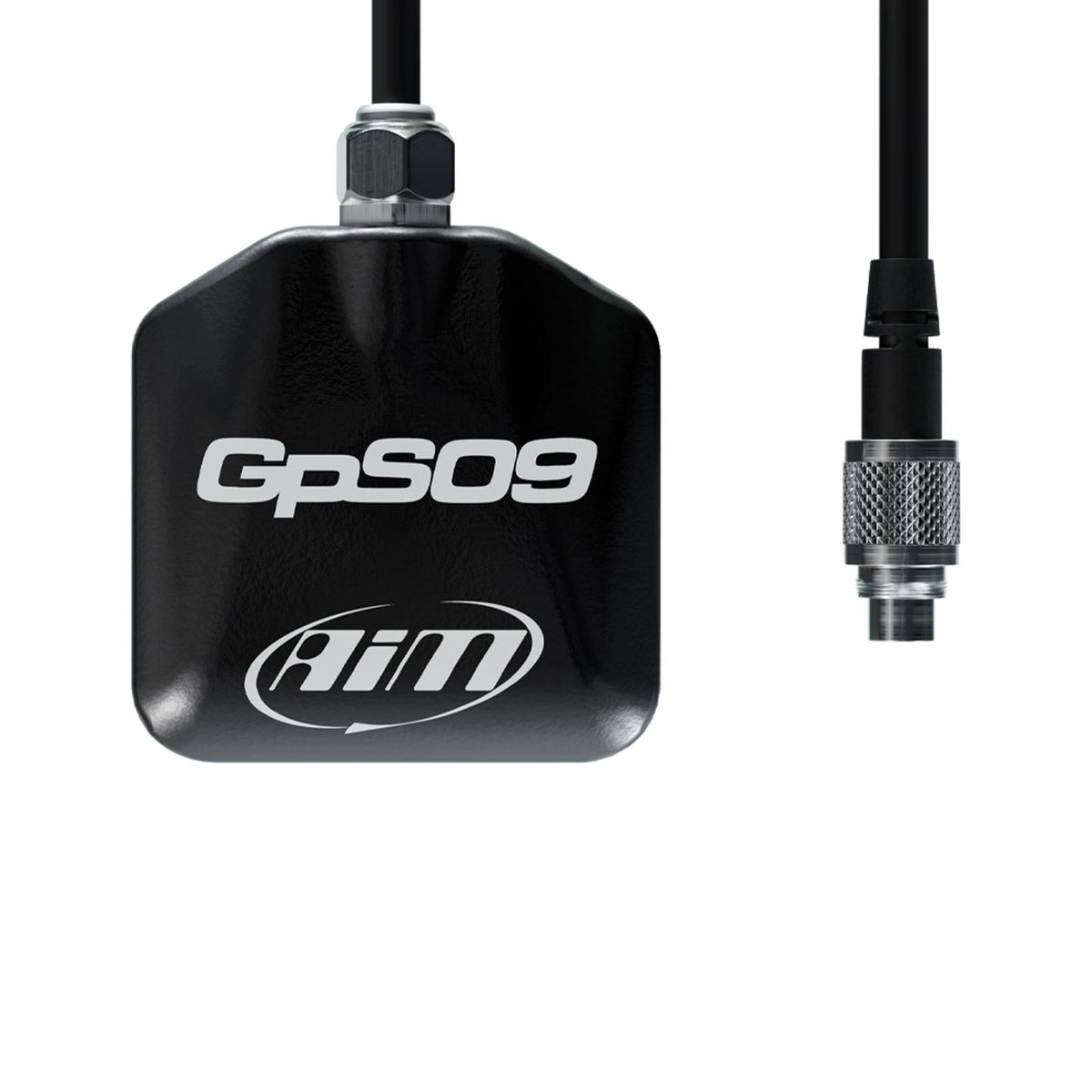

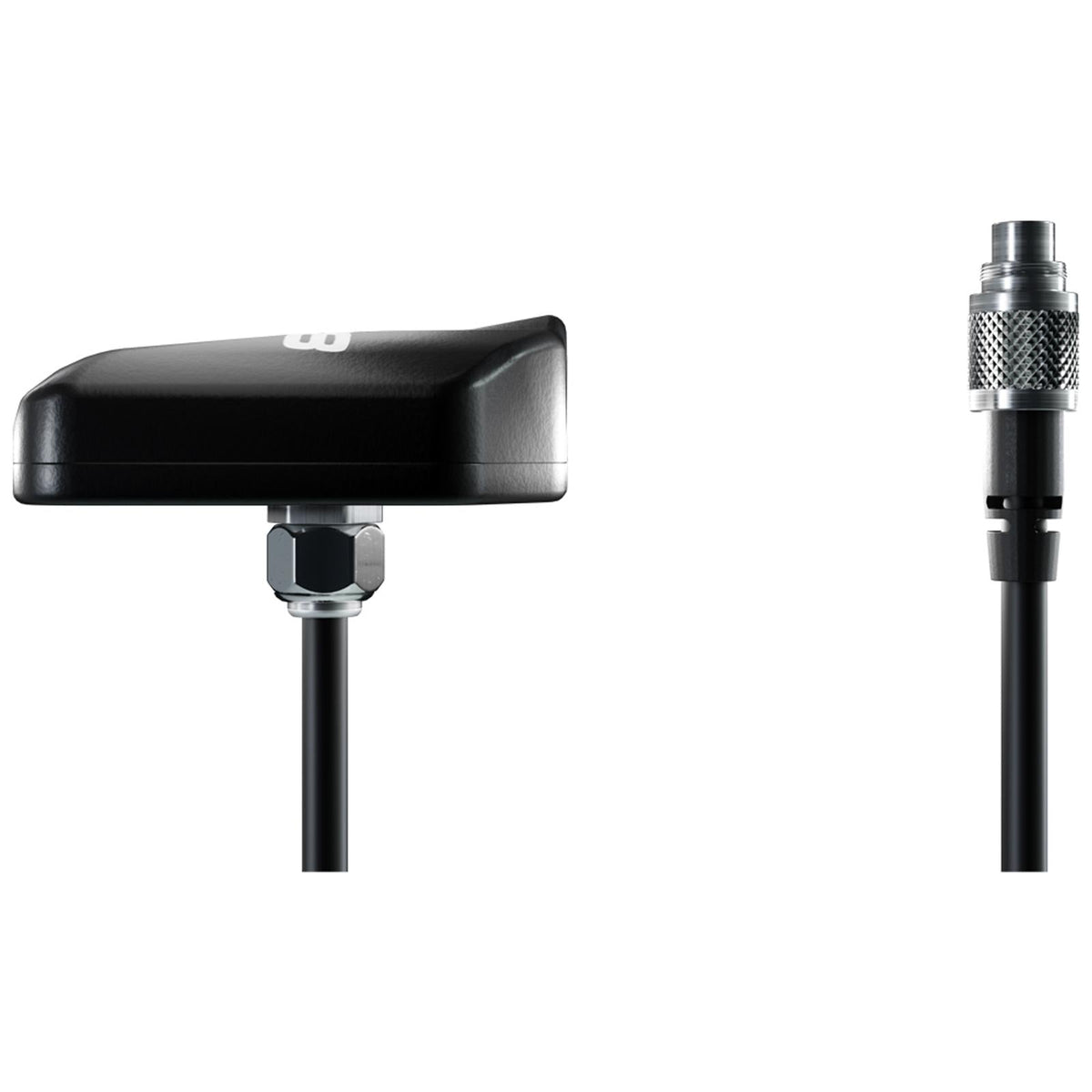

Link AIM GPS09 Module for AIM Dashes - 100-0170

Link AiM GPS09 Module for AiM Dashes - 100-0170

The AiM GPS09 adds position, speed, acceleration and lap timing to Link's MXS, MXG and MXT Strada dashes. It samples at 25 Hz using multiple satellite systems for fast, reliable fixes, and its GPS speed signal is handy where no wheel-speed input is available, such as boats or transmission swaps.

It automatically recognises more than 4,000 tracks and delivers lap, split, delta, predictive and theoretical lap times, with setup and data review in AiM Race Studio 3. It plugs straight into the dash over AiM CAN.

Suits: Link / AiM 5" MXS, 7" MXG and 10" MXT Strada dashes.

Includes: AiM GPS09 module with integrated CAN connection cable.

Specifications

• Sample rate: 25 Hz
• Average position tolerance: less than 0.5 m (1.6 ft)
• Satellite systems: GPS, GLONASS, BeiDou, Galileo
• Track database: 4,000+ tracks with automatic recognition
• Connection: AiM CAN; cable length 1.3 m
• Dimensions: 64.8 x 53.2 x 19.7 mm (2.55 x 2.09 x 0.78 in)
• Weight: 60.5 g (2.13 oz)

Notes

• Configured with AiM Race Studio 3. Link recommends installation and setup by an official Link dealer.

You may also need

A compatible dash, such as the MXS Strada 5" (100-0169), MXG Strada 7" (100-0173) or MXT Strada 10" (100-0177).
