Link MXS Strada 5" Dash - Race Edition - 100-0169

Link AiM MXS Strada 5" Dash - Race Edition - 100-0169

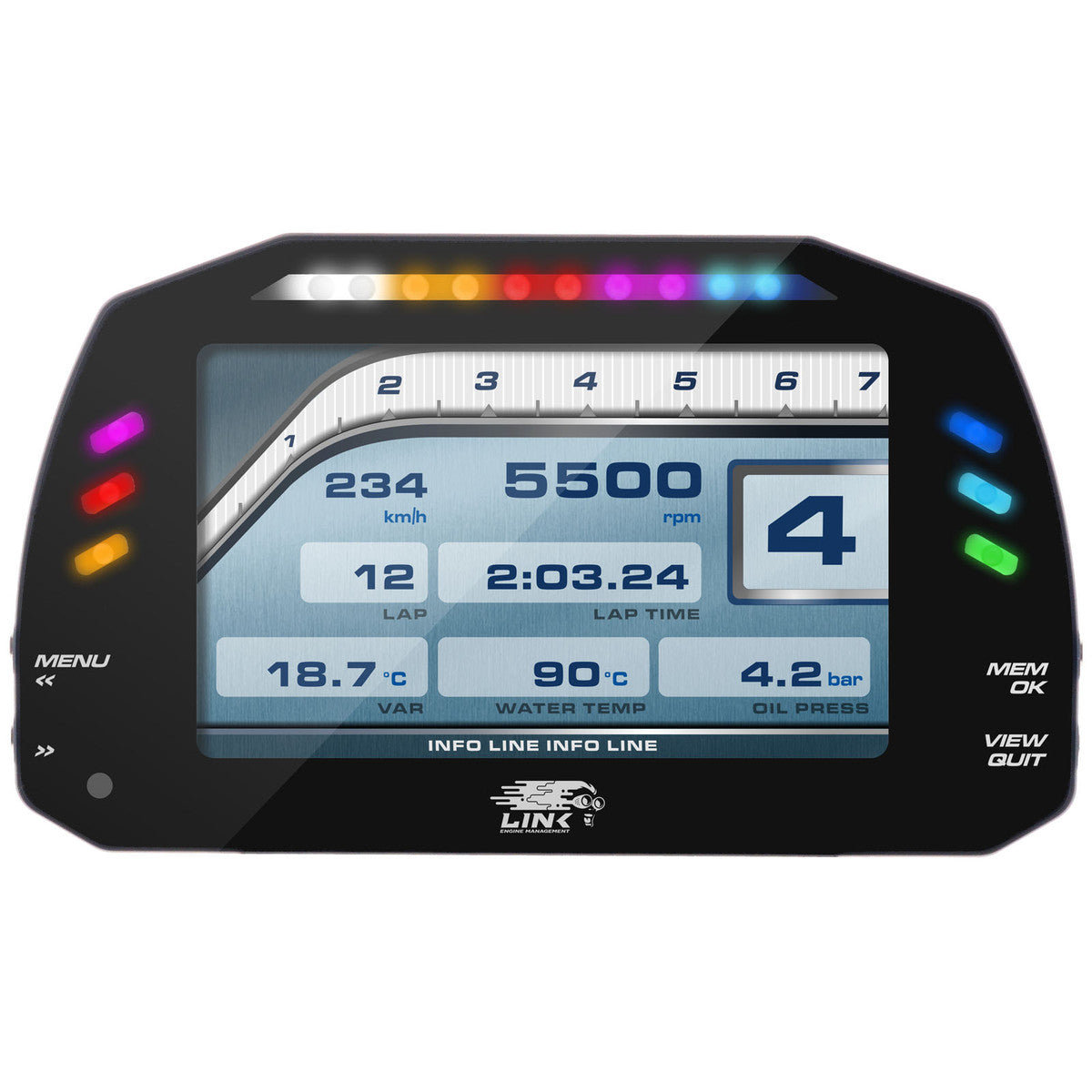

The MXS Strada is a compact AiM digital dash with a high-contrast 5-inch TFT screen that adjusts its brightness automatically. It offers multiple configurable display pages, 10 RGB shift lights, 6 RGB warning LEDs and a custom warning screen, and comes pre-loaded to read the Link ECU CAN stream: enable the dash in PCLink and it is ready to go.

The Race Edition's six RGB icon LEDs are fully configurable by condition and colour, solid or flashing at an adjustable rate, for high-visibility motorsport warnings. For road cars, the Street Edition (100-0168) has fixed indicator, headlight, high-beam, check-engine, oil-pressure and temperature icons plus speed, odometer and trip functions.

Suits: All Link G4+, G4X and G5 wire-in and plug-in ECUs; also CAN, RS232 and K-Line ECU communications and AiM CAN accessories (GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD).

Includes: MXS Strada 5" Race Edition display, USB cable, 14-pin standard wiring, 23-pin connector and contacts.

Specifications

• Display: 5" TFT, 800 x 480 pixels, 600:1 contrast, 700 cd/m2 (1,100 lumens)
• Inputs: 8 analogue (4 fully configurable, up to 1 kHz each), 1 speed input, 1 coil RPM input
• Outputs: 1 digital output (1 A max)
• CAN ports: 2
• Connectors: AMPSEAL 3-row 23-position (770680-1) and AMPSEAL 3-row 14-position (776273-2)
• Power consumption: 400 mA
• Housing: anodised aluminium with metallic pushbuttons, IP65
• Dimensions: 169.4 x 97 x 23 mm (6.67 x 3.82 x 0.91 in)
• Weight: 480 g (16.93 oz)

Notes

• This is the Race Edition; for road use choose the Street Edition. The Strada is also available as the 7" MXG and 10" MXT.
• Configuration uses AiM Race Studio 3 software. Link recommends installation and setup by an official Link dealer.

You may also need

Street version: MXS Strada 5" Street Edition (100-0168). GPS: AiM GPS09 module (100-0170).
