Link MXS Strada 5" Dash - Street Edition - 100-0168

Link AiM MXS Strada 5" Dash - Street Edition - 100-0168

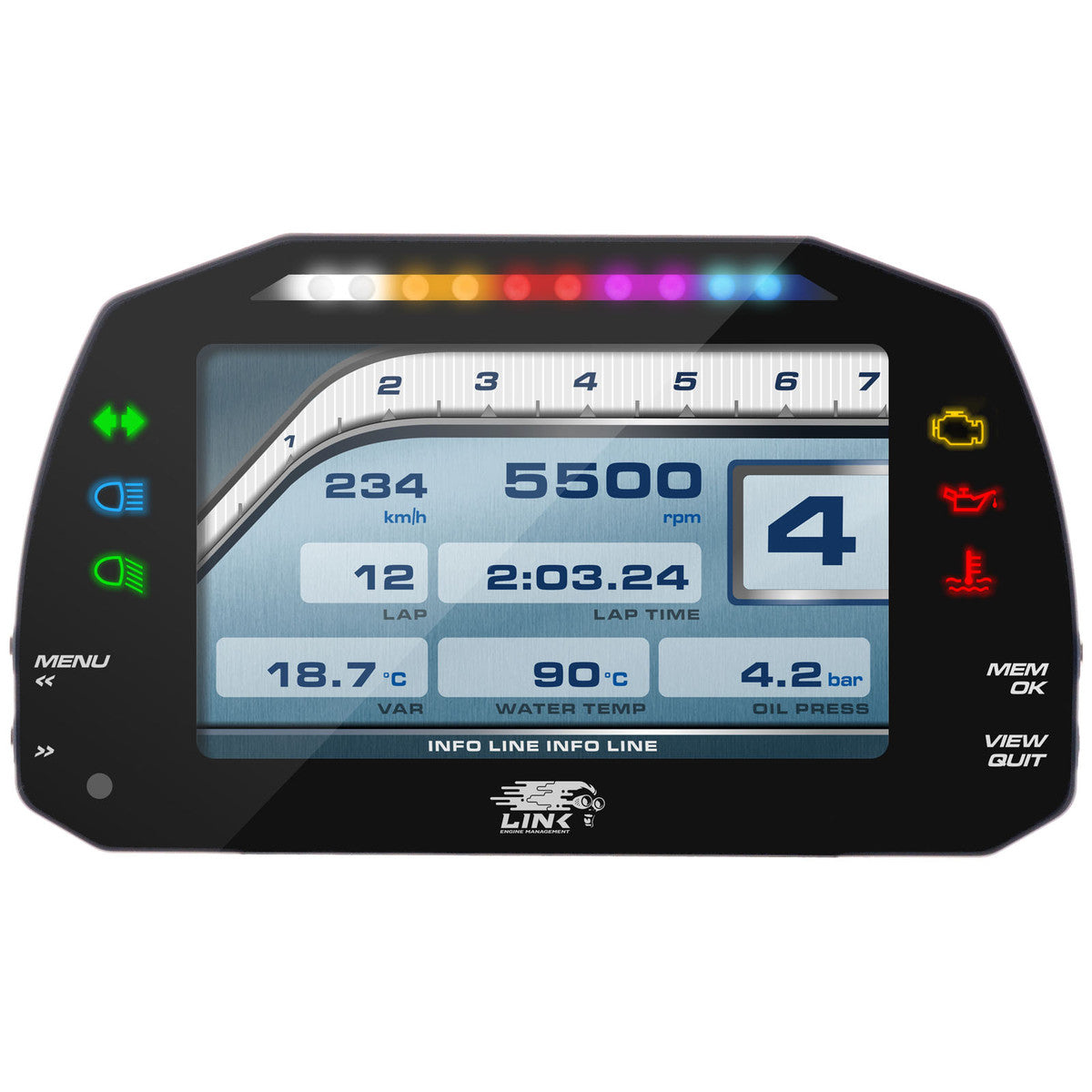

The MXS Strada is a compact AiM digital dash with a high-contrast 5-inch TFT screen that adjusts its brightness automatically. It offers multiple configurable display pages, 10 RGB shift lights and 6 warning LEDs, and comes pre-loaded to read the Link ECU CAN stream: enable the dash in PCLink and it is ready to go.

The Street Edition is set up for road cars, with six fixed RGB icons (indicator, headlight, high beam, check engine, oil pressure and temperature) and integrated speed, RPM, odometer and trip functions. For motorsport, the Race Edition (100-0169) has fully configurable warning icons instead.

Suits: All Link G4+, G4X and G5 wire-in and plug-in ECUs; also CAN, RS232 and K-Line ECU communications and AiM CAN accessories (GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD).

Includes: MXS Strada 5" Street Edition display, USB cable, 14-pin standard wiring, 23-pin connector and contacts.

Specifications

• Display: 5" TFT, 800 x 480 pixels, 600:1 contrast, 700 cd/m2 (1,100 lumens)
• Inputs: 8 analogue (spec table; 4 fully configurable up to 1 kHz each), 1 speed input, 1 coil RPM input
• Outputs: 1 digital output (1 A max)
• CAN ports: 2
• Connectors: AMPSEAL 3-row 23-position (770680-1) and AMPSEAL 3-row 14-position (776273-2)
• Power consumption: 400 mA
• Housing: anodised aluminium with metallic pushbuttons, IP65
• Dimensions: 169.4 x 97 x 23 mm (6.67 x 3.82 x 0.91 in)
• Weight: 480 g (16.93 oz)

Notes

• This is the Street Edition; for motorsport warnings choose the Race Edition. The Strada is also available as the 7" MXG and 10" MXT.
• Configuration uses AiM Race Studio 3 software. Link recommends installation and setup by an official Link dealer.

You may also need

Race version: MXS Strada 5" Race Edition (100-0169). GPS: AiM GPS09 module (100-0170).

Downloads

• AiM MXS Strada Quick Start Guide (PDF)
