Link NS13X Plug-In ECU (Nissan S13-14, 76-Pin) - 216-4000

The NS13X is a G4X plug-in ECU for the Nissan S13 and early S14. It bolts into the factory ECU location using the stock mounts, loom and connectors, keeps the factory functions, and comes with a startup map and an onboard MAP sensor.

It shares the G4X processor and PCLink software with Link's wire-in ECUs, and unlocks motorsport functions including nitrous, launch control, anti-lag, traction control, gear shift and paddle shift control.

Suits: Nissan Silvia S13 and 180SX with CA18DET; Silvia S14 (pre-facelift) with SR20DET. 76-pin blue ECU header, manual transmission.

Includes: G4X NS13X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• Onboard logging: 512 MB, 100 kHz maximum total logging rate, 250 channels
• Injection drives: 8; ignition drives: 8; auxiliary outputs: 16; digital inputs: 11; temperature inputs: 4; analogue inputs: 12; trigger inputs: 2; knock inputs: 2; ADIO: 6 (check the pinout for the I/O exposed on this vehicle)
• E-throttle control: single; onboard lambda control: single; boost control: open and closed loop
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 3.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)

Notes

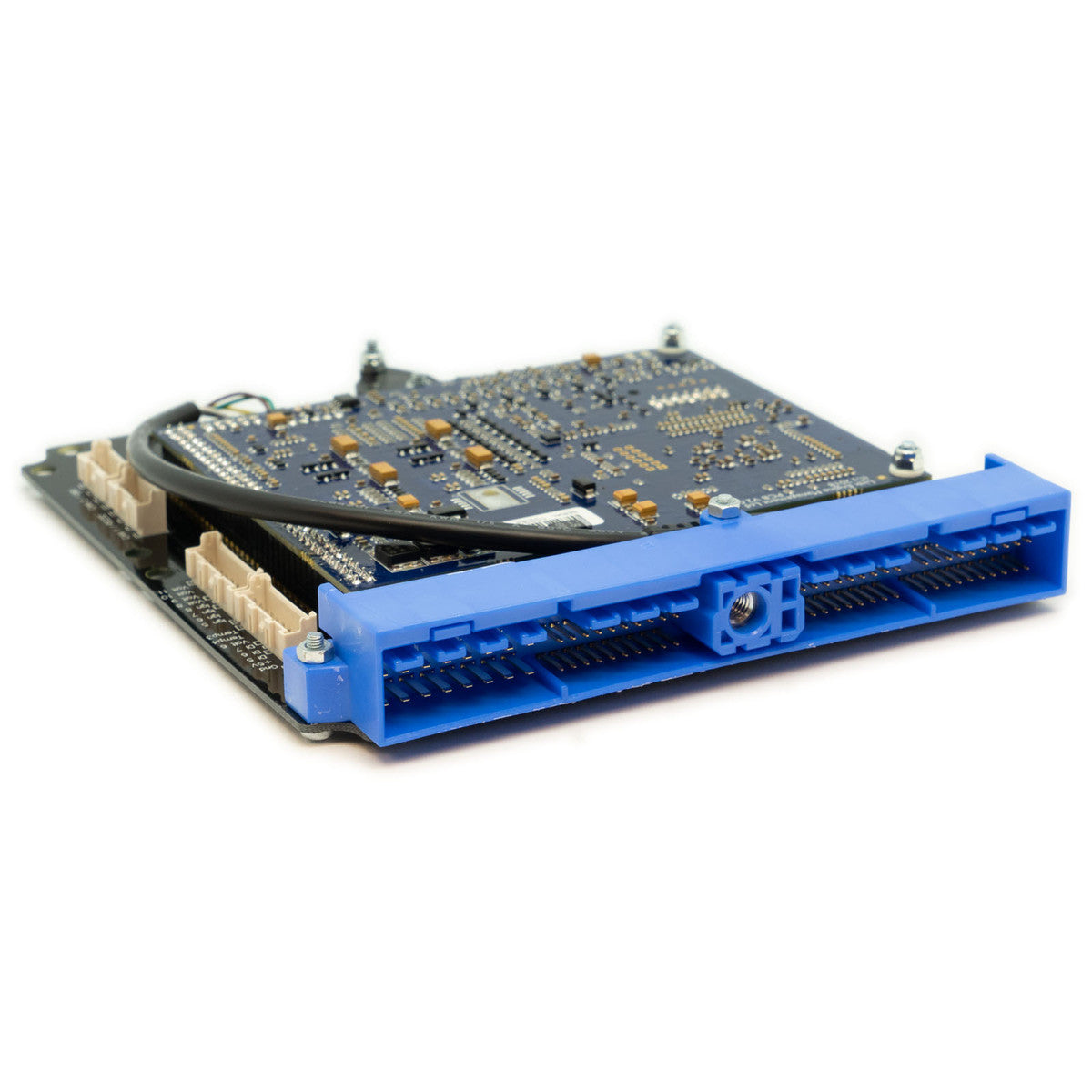

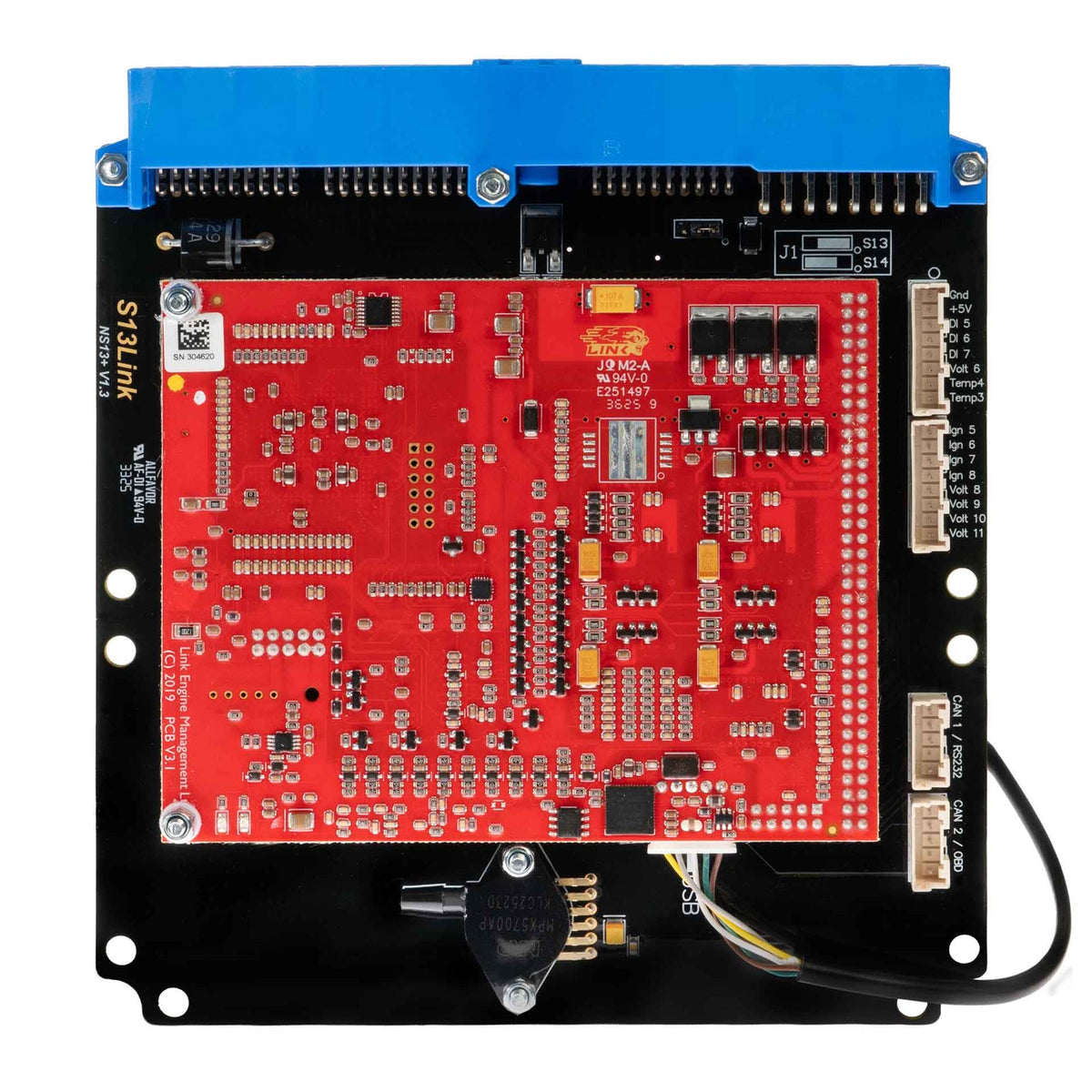

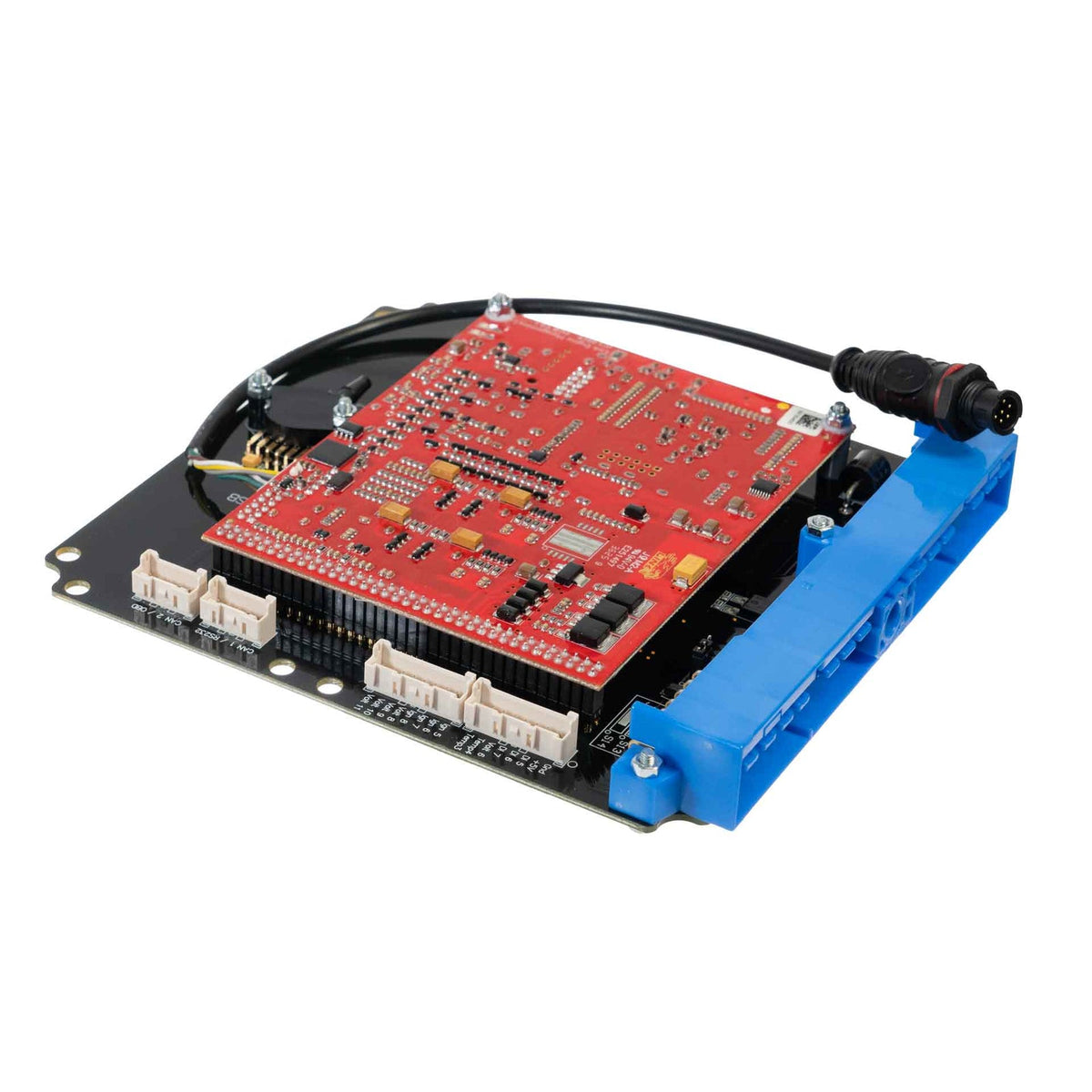

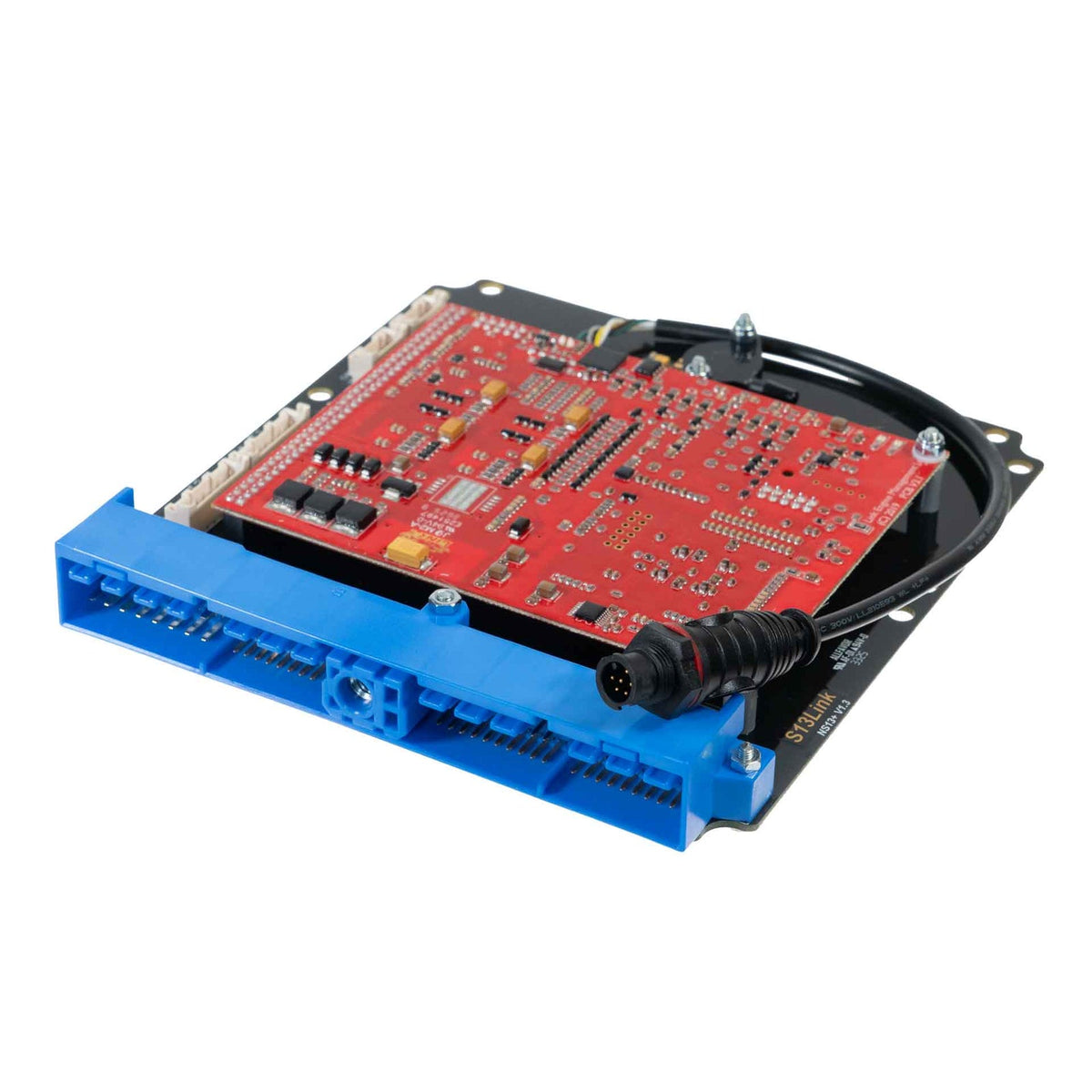

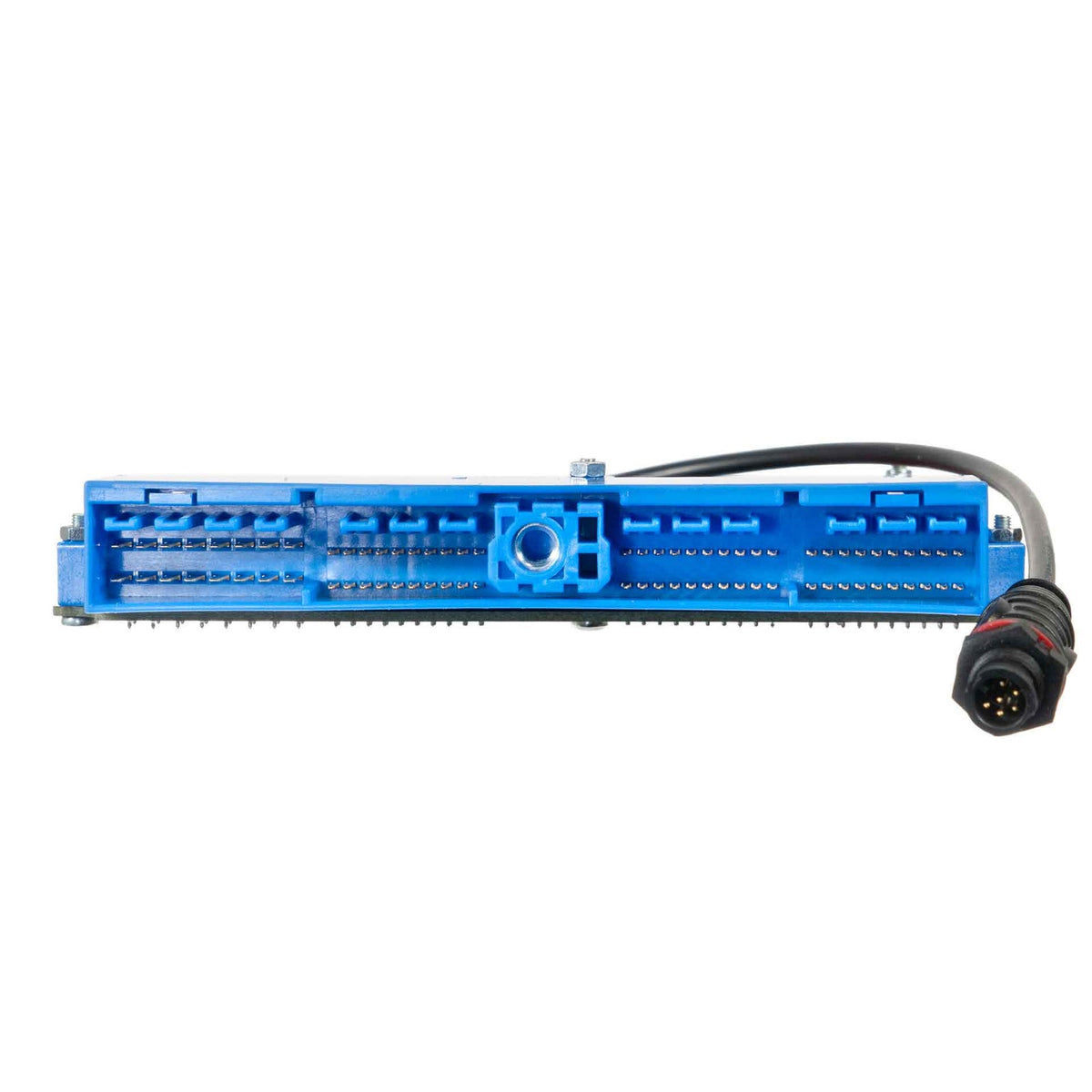

• Check that your connector matches the 76-pin header shown in the photos. Cars with the 64-pin blue header need the NS15X (217-4100).
• E-throttle is not usable until a modification is made.
• Automatic models: ask us about Direct Automatic Transmission Control compatibility.
• Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

For 64-pin header cars, see the NS15X Plug-In ECU (217-4100).
