Link NS15X Plug-In ECU (Nissan S13-15, E-Throttle) - 217-4100

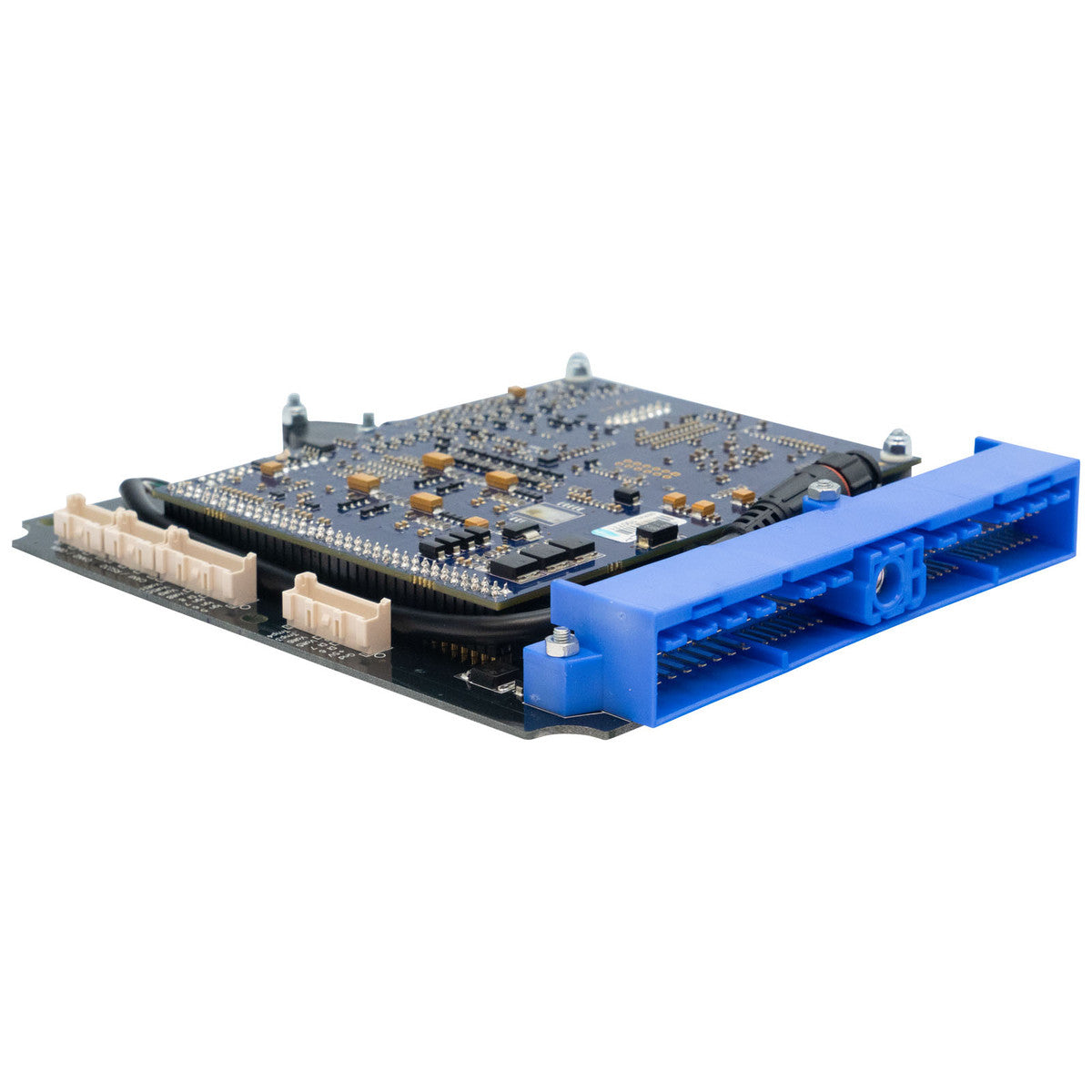

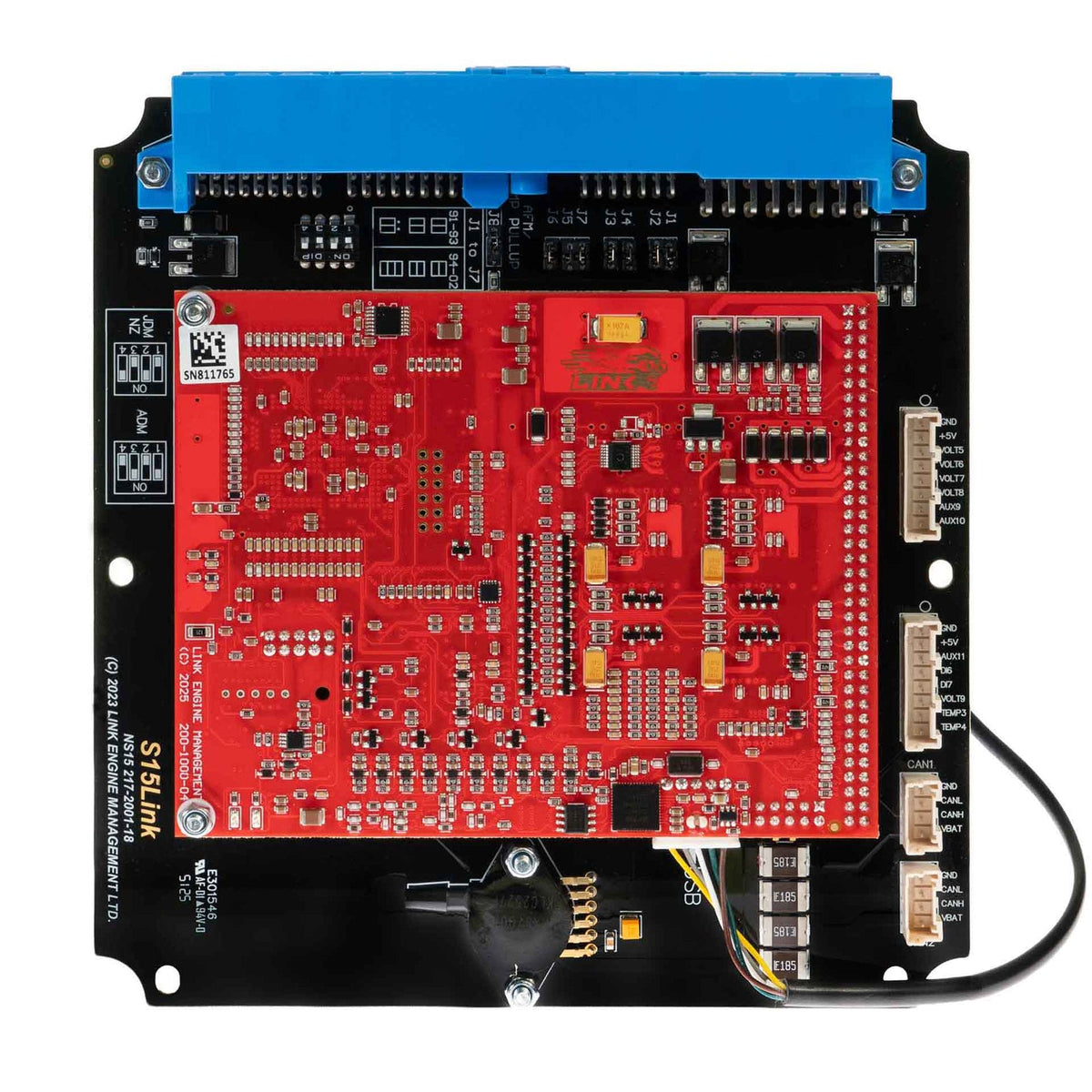

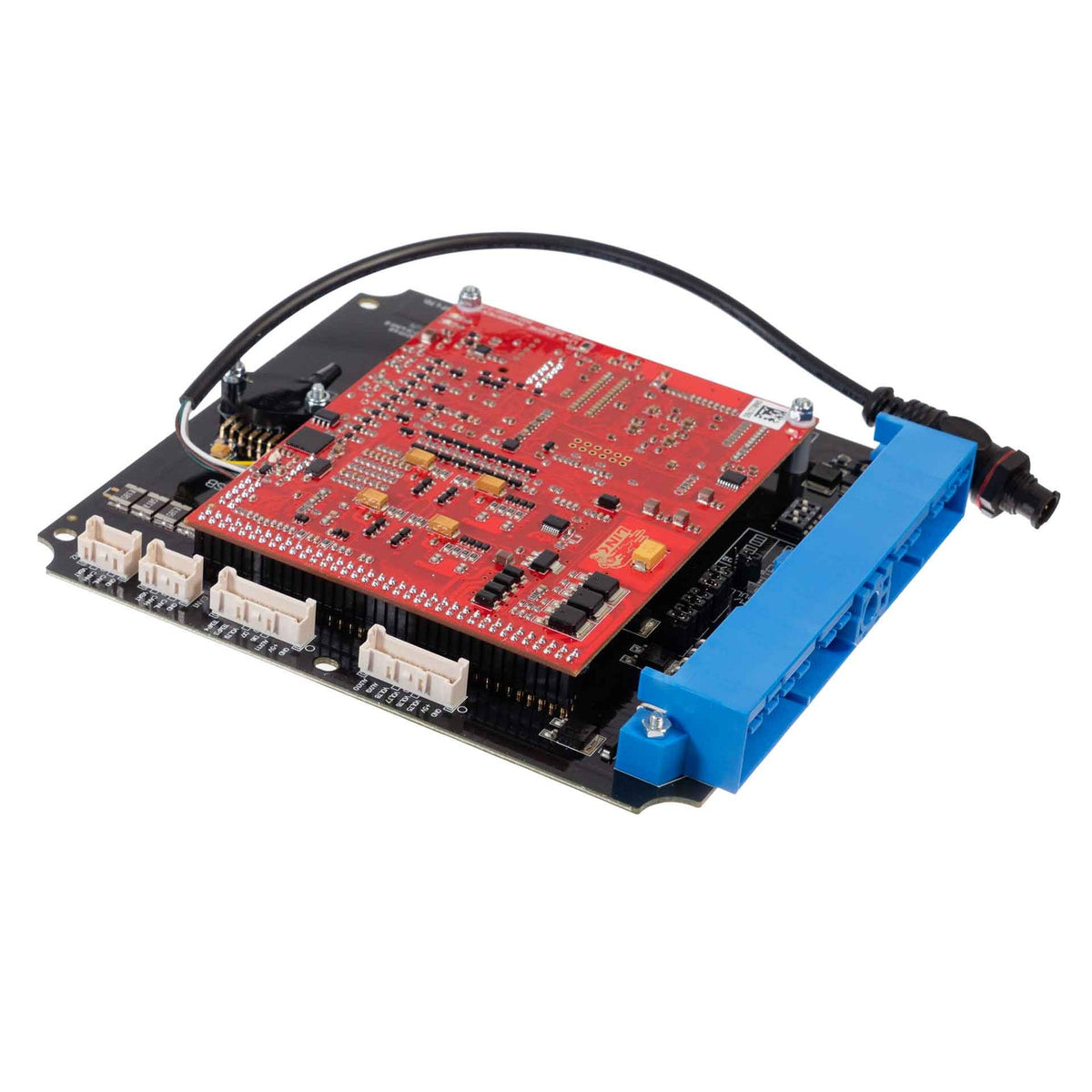

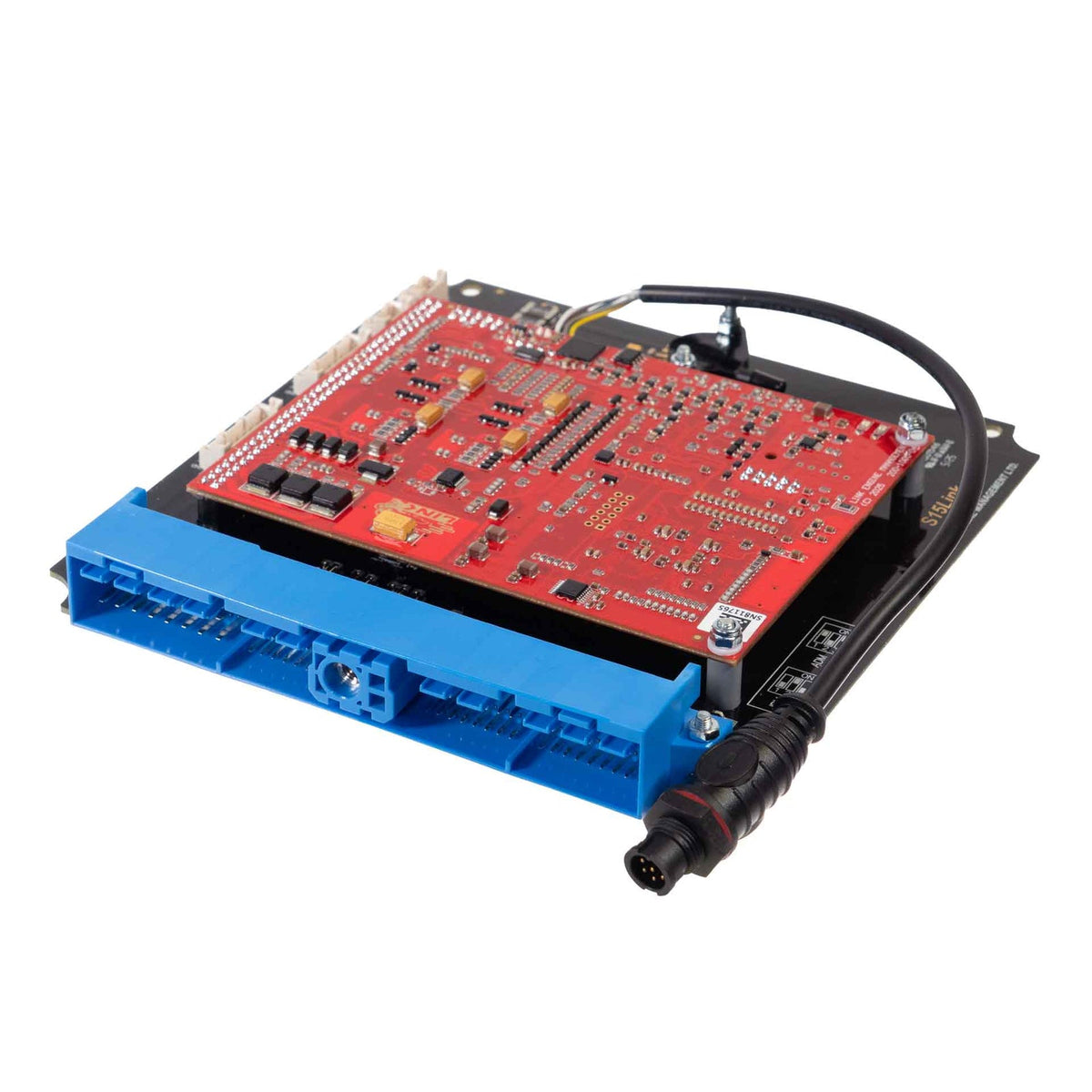

The NS15X is a G4X plug-in ECU for the Silvia S14/S15 and other SR20-powered Nissans. It fits the factory ECU location with the original mounts, loom and connectors, so no rewiring or adapters are needed. A startup map and a built-in MAP sensor are included.

You get the full G4X feature set and PCLink software, plus motorsport functions such as nitrous, launch control, anti-lag, traction control and paddle shift control.

Suits: 64-pin blue ECU header: Nissan S13 Silvia/180SX with SR20DET (not CA18DET); S14a Silvia (facelift) SR20DET; S15 Silvia SR20DET and SR20DE; RNN14 Pulsar GTI-R SR20DET; N15 Pulsar SR16VE; N14 Pulsar with distributor. Manual transmission only.

Includes: G4X NS15X plug-in ECU, anti-static strap, USB tuning cable, Link stickers, plug-in manual card, product registration card.

Specifications

• Communications: 2 x CAN bus; LTW 6-pin USB tuning connection
• CAN connector: 4-pin powered port with protected 12 V supply and ground, self-resetting 3 A fuse
• Onboard logging: 512 MB
• Operating voltage: 6.5-24 V; maximum input voltage 36 V; maximum continuous current draw 11.5 A
• Dimensions: 190 x 160 x 30 mm (7.48 x 6.30 x 1.18 in)
• Weight: 260 g (9.17 oz)
• Inputs/outputs: see the NS15X installation manual

Notes

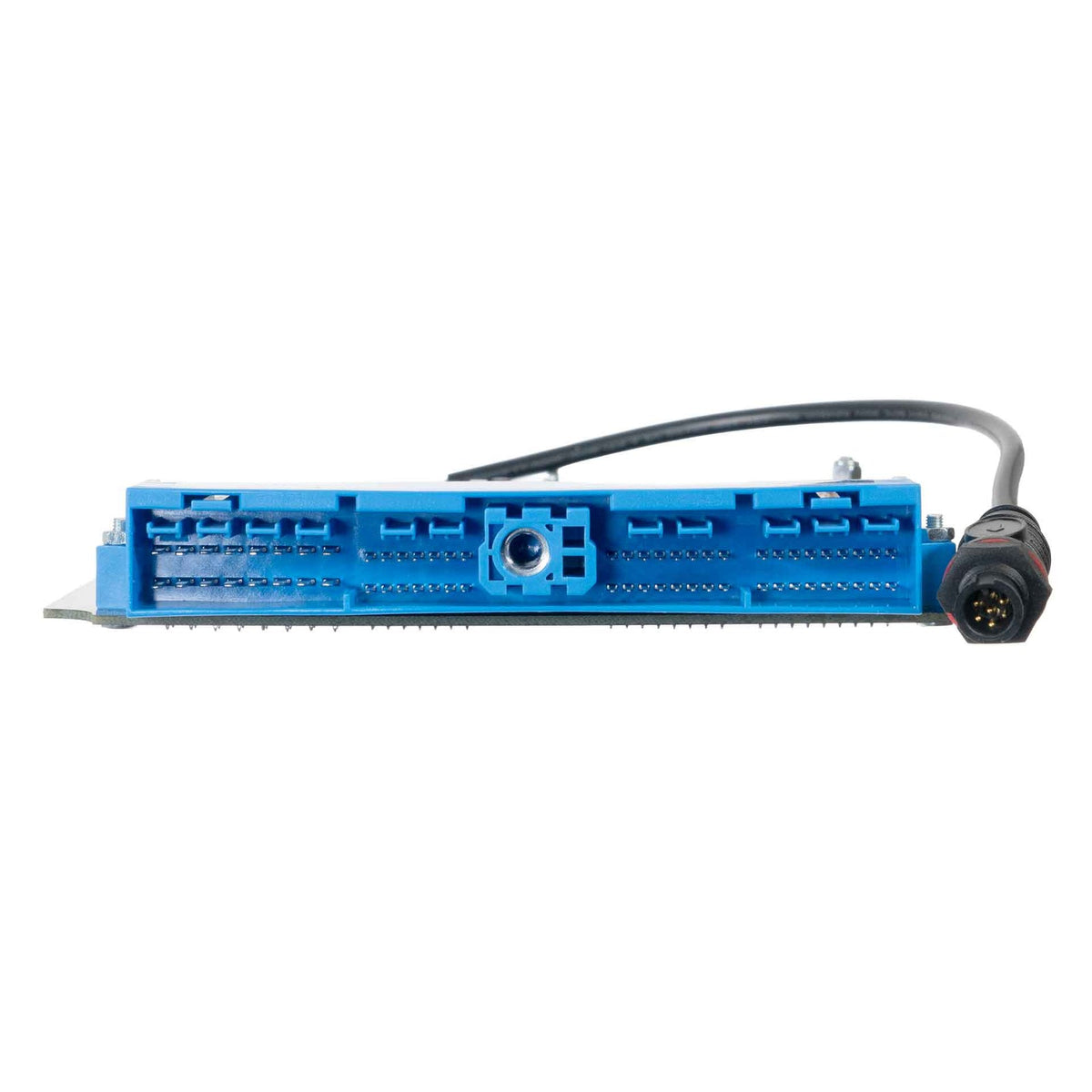

• Check that your connector matches the 64-pin header shown in the photos. 76-pin header cars need the NS13X (216-4000).
• E-throttle requires an expansion connector (not included).
• CAN devices need the CANJST4 cable (101-0198); the older CANPCB cable cannot be used. The second CAN bus uses 2 digital inputs.
• Most factory features are supported. Not for use where it would interfere with a vehicle's safety or emission control features. Link recommends installation and setup by an official Link dealer.

You may also need

To connect CAN devices, a CANJST4 CAN cable (101-0198). For 76-pin header cars, see the NS13X Plug-In ECU (216-4000).

Downloads

• NS15X User Manual (PDF)
• G4X Plug-In ECU Specifications (PDF)
